NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

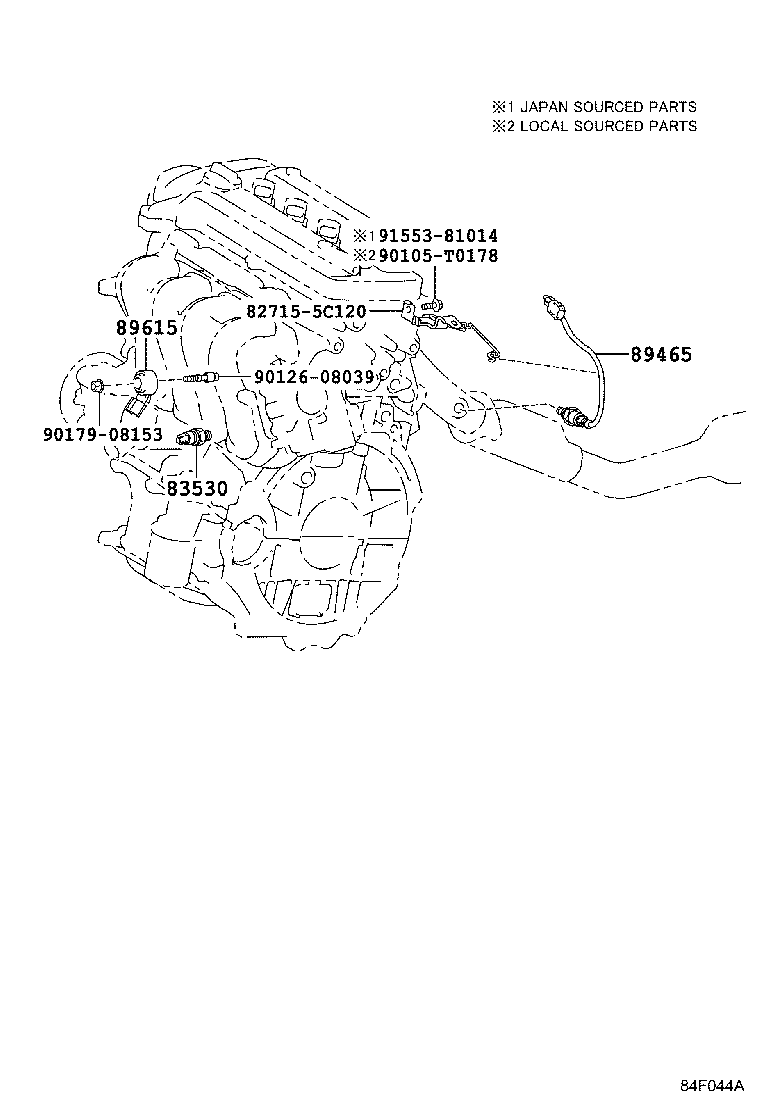

ILLUST NO. 1 OF 9(1407- )NZE170

Click highlighted areas on diagram

ENGINE

diagram 827155C120 83530 89465 89615 90105T0178 9012608039 9017908153 9155381014
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

NZE170

YAZAKI

 1
83530-28020

NZE170

DENSO

 1
89465 - SENSOR, OXYGEN
89465-52380

NZE170

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

NZE170,ZRE171,172..PKN

 1
89615-20090

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
Common parts
82715-5C120
90105-T0178
90126-08039
90179-08153
91553-81014
