NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

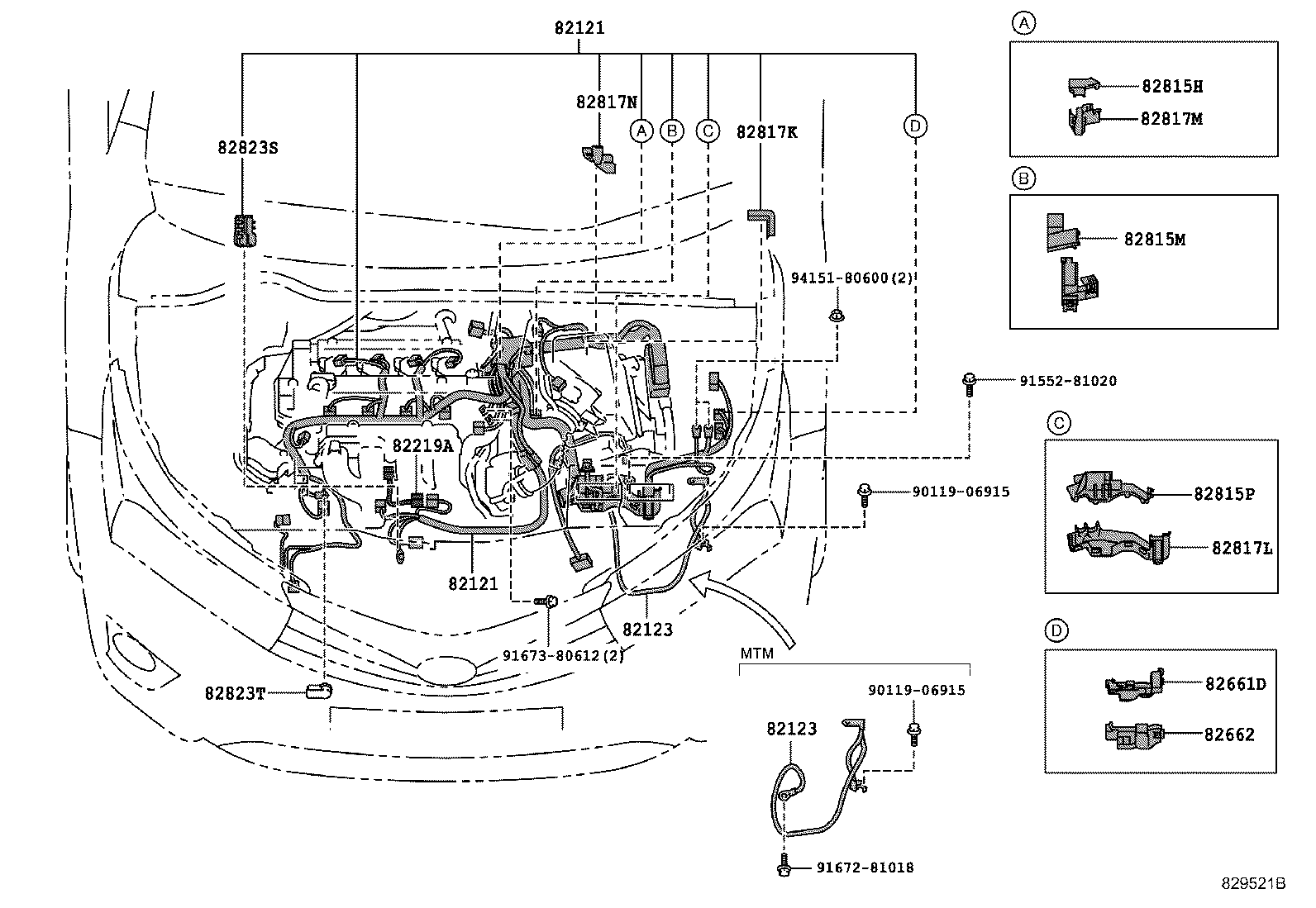

ILLUST NO. 2 OF11(1407- )NZE170

Click highlighted areas on diagram

ENGINE

diagram 82121 82121 82123 82123 82219A 82661D 82662 82815H 82815M 82815P 82817K 82817L 82817M 82817N 82823S 82823T 9011906915 9011906915 9155281020 9167281018 9167380612 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0Z810

NZE170..4FC

 1
82121-0Z811

NZE170..4FC

 1
82121 - WIRE, ENGINE
82121-0Z810

NZE170..4FC

 1
82121-0Z811

NZE170..4FC

 1
82123 - WIRE, ENGINE, NO.3
82123-02A00

NZE170..4FC

 1
82123 - WIRE, ENGINE, NO.3
82123-02A00

NZE170..4FC

 1
82219A - WIRE, SENSOR
82219-52040

NZE170

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12300

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82661-12300

NZE170,ZRE171,172..PKN

 1
82662 - COVER, RELAY BLOCK, UPPER
82662-12260

NZE170,ZRE171,172..PKN

 1
82662-12260

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-12370

NZE170

 1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-12380

NZE170

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-12860

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82817-12860

NZE170,ZRE172..PKN

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-12G50

NZE170

 1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-12G80

NZE170

 1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-12J10

NZE170

 1
82823S - CAP, STARTER TERMINAL
82823-12110

ZRE172..PKN;NZE170,ZRE171..4FC..PKN

 1
82823-12110

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
82823-22050

NZE170,ZRE171,172..PKN

 1
Common parts
90119-06915
91552-81020
91672-81018
91673-80612
94151-80600
