NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1707)PKN

Click highlighted areas on diagram

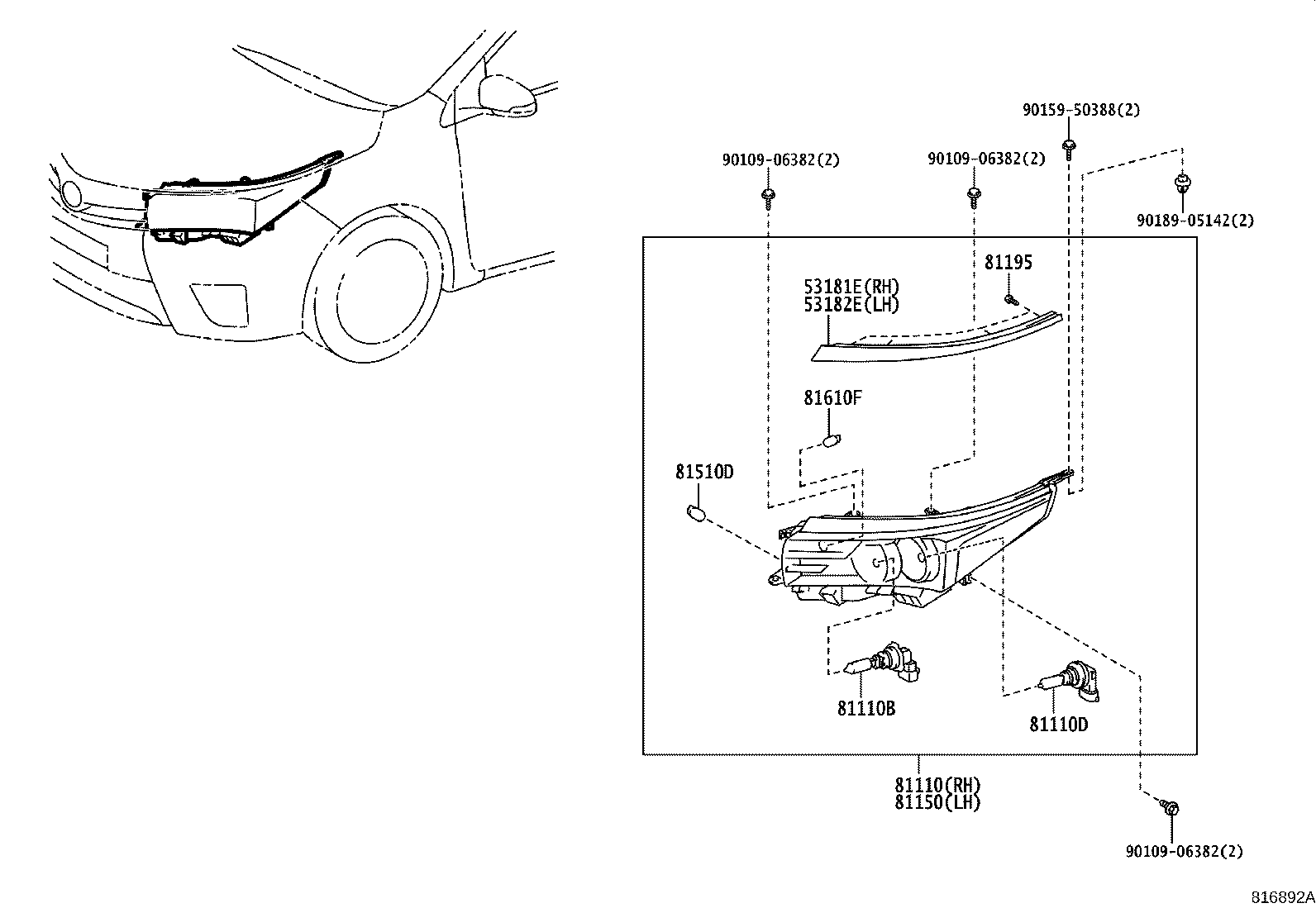

HALOGEN HEADLAMP

diagram 53181E 53182E 81110 81110B 81110D 81150 81195 81510D 81610F 9010906382 9010906382 9010906382 9015950388 9018905142
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
53182E - COVER, HEADLAMP, LH
53182-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
81110 - HEADLAMP ASSY, RH
81110-02J90

NZE170,ZRE171..PKN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZRE172..TAIW..E;ZRE172..(ARL,TAIW)..(D,G,N);NZE170,ZRE171..CNG,HTWC,HTWCF;NDE170,ZRE172,173..(18E,18G,20G,G,GLI,J,XLI)..(GCC,IDN,IND,MA,TH)

12V65W(SAE),60W(ECE)

 2
90981-13046

NZE170,ZRE171,172..PKN

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

NZE170,ZRE171,172..PKN

12V 55W,HALOGEN

 2
90981-13075

ZRE172..ARL..(D,N);NZE170,ZRE171..GEN,PHL,PKN,TH;NDE170,ZRE172,173..RHD..(18E,18G,20G,G,J)

12V 55W,HALOGEN

 2
81150 - HEADLAMP ASSY, LH
81150-02J90

NZE170,ZRE171..PKN

 1
81195 - SCREW, HEADLAMP
90168-40059

NZE170,ZRE171,172..PKN

 8
90168-40059

ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,TAIW,TH;NDE170,NZE170,ZRE171,173..GCC,GEN,IND,MA,PHL,PKN,SGP,TH

 8
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

NZE170,ZRE171,172..PKN

12V 21W,AMBER

 2
90981-15021

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

12V 21W,AMBER

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NZE170,ZRE171,172..PKN

12V 5W

 2
Common parts
90109-06382
90159-50388
90189-05142
