NZE170R-GEPDKP (2014)
Toyota Corolla/Altis

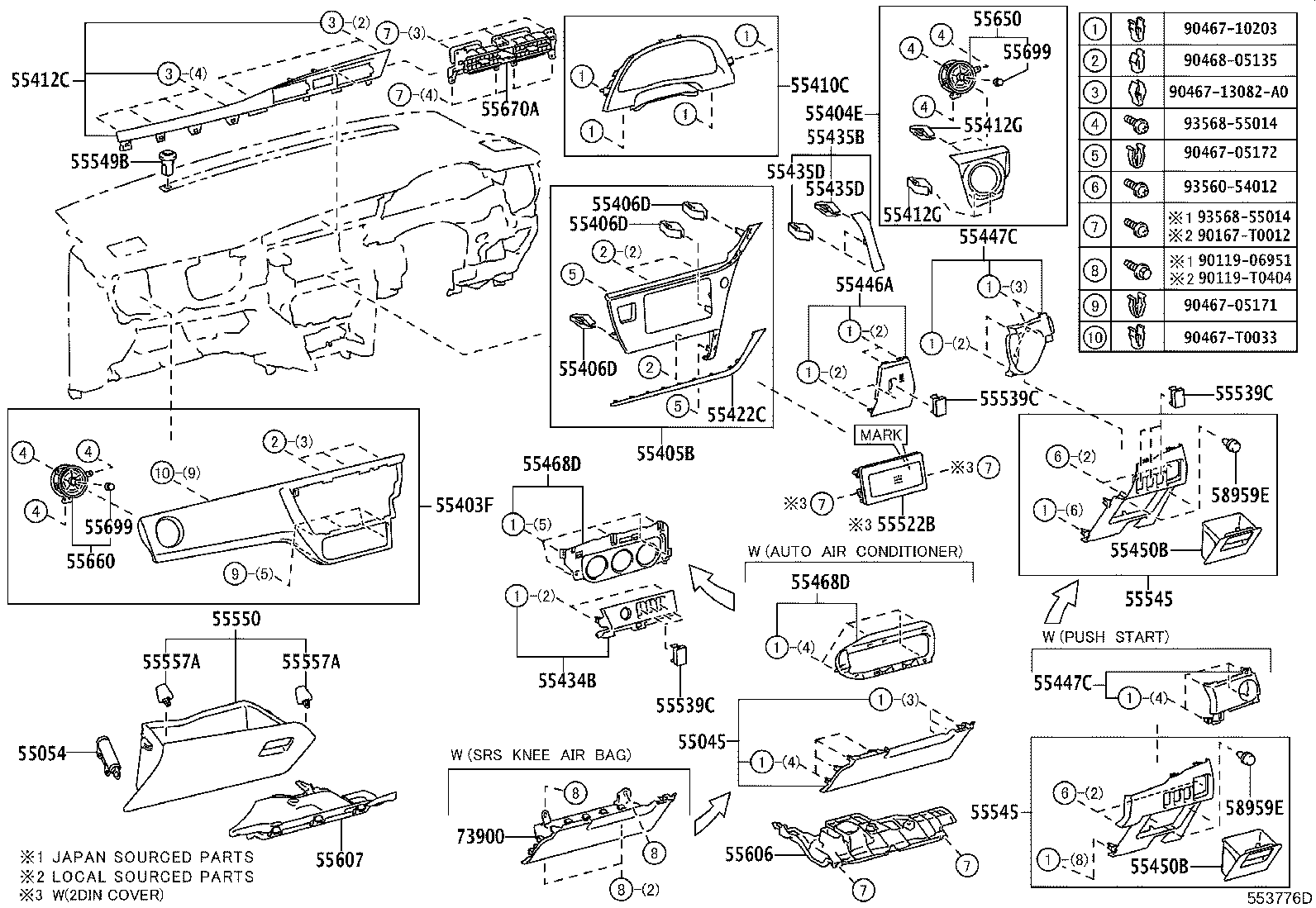

ILLUST NO. 2 OF 2(1611- )RHD..ARL,GEN,IDN,MA,SGP,TH ; (1703-)IND ; (1707- )PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02440C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02040 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02440A1 |
ZRE171..RHD..6F..HTWC;NZE170,ZRE171..(4FC,5F)..PKN;ZRE171,172..RHD..(18G,J,XLI) FLAXEN,TRIM0# |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02570A0 |
ZRE171..RHD..6F..HTWC;NZE170,ZRE171..(4FC,5F)..PKN;ZRE171,172..RHD..(18G,J,XLI) FLAXEN,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02700C1 |
NZE170..XLI IVORY/BLACK METALLC,TRIM0# |
1 | ||
| 55405-02662C5 |
NZE170..XLI BLACK METALLC/IVORY,TRIM0# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02370C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02280C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02460C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02240C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02240C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02200C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02200C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171..6F..N;NZE170,ZRE172..IDN,PKN;ZRE171..(ATM,CVT)..(PKN,TH) BLACK,TRIM0# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171..6F..N;NZE170,ZRE172..IDN,PKN;ZRE171..(ATM,CVT)..(PKN,TH) BLACK,TRIM0# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171..6F..N;NZE170,ZRE172..IDN,PKN;ZRE171..(ATM,CVT)..(PKN,TH) BLACK,TRIM0# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-02220C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-02220C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02470C0 |
NZE170,ZRE171,172..PKN BLACK,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55557-60050 |
NZE170,ZRE171,172..PKN |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55557-60050 |
NZE170,ZRE171,172..PKN |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02210 |
NZE170,ZRE171,172..PKN DRIVER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-02190C2 |
NZE170,ZRE171..PKN;ZRE172..RHD..(18G,J) BLACK,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-02160C1 |
NZE170,ZRE171..PKN;ZRE172..RHD..(18G,J) BLACK,TRIM0# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02650 |
ZRE172..ARL..D;ZRE171..RHD..6F;ZRE171,172..RHD..(18G,XLI);NZE170,ZRE171..(4FC,5F)..PKN |
1 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-02270C0 |
NZE170,ZRE171..PKN;ZRE172..RHD..(18G,J) BLACK,TRIM0# |
1 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-02270C0 |
NZE170,ZRE171..PKN;ZRE172..RHD..(18G,J) BLACK,TRIM0# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| 58959-60060 |
NZE170,ZRE171,172..PKN |
2 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| 58959-60060 |
NZE170,ZRE171,172..PKN |
2 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90467-T0033 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
