NZE170R-GEPDKP (2014)
Toyota Corolla/Altis
(1407- )PKN

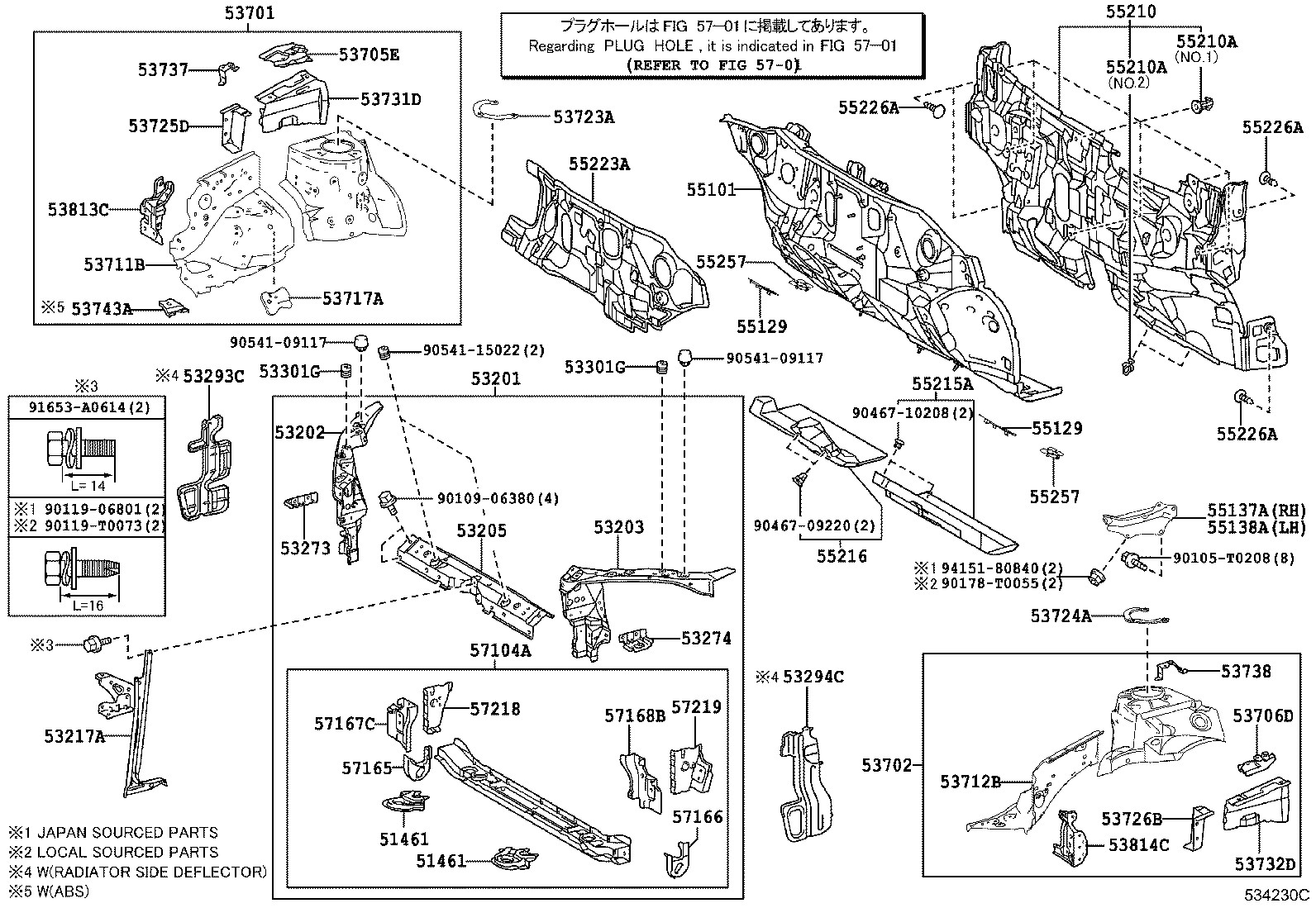

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51461 - BRACKET, RADIATOR STAY | ||||
| 51461-02030 |
NZE170,ZRE171,172..PKN RH |
1 | ||
| 51462-02030 |
NZE170,ZRE171,172..PKN LH |
1 | ||
| 51462-02030 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH LH |
1 | ||
| 51461-02030 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH RH |
1 | ||
| 51461 - BRACKET, RADIATOR STAY | ||||
| 51461-02030 |
NZE170,ZRE171,172..PKN RH |
1 | ||
| 51462-02030 |
NZE170,ZRE171,172..PKN LH |
1 | ||
| 51462-02030 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH LH |
1 | ||
| 51461-02030 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH RH |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-02370 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02190 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53202-02190 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02190 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53203-02190 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02250 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53205-02250 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-02210 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53208-02230 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-02190 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53273-02190 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-02180 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53274-02180 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-02290 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-02290 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 53384-50010 |
NZE170,ZRE171,172..PKN |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 53384-50010 |
NZE170,ZRE171,172..PKN |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02350 |
NZE170..XLI |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02250 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-02040 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-02040 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53711-02100 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-02110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53712-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-12060 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53717-12060 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-02070 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53723-12110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-02070 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53723-12110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53723-02090 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53724-02060 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02080 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02090 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02150 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53737-02150 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02120 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53738-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53803-02060 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53803-02060 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02130 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53814-02130 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-02C90 |
NZE170,ZRE171,172..(ATM,CVT)..PKN |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-02040 |
NZE170,ZRE171,172..PKN LH |
1 | ||
| 55129-02050 |
NZE170,ZRE171,172..PKN RH |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-02040 |
NZE170,ZRE171,172..PKN LH |
1 | ||
| 55129-02050 |
NZE170,ZRE171,172..PKN RH |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02070 |
NZE170,ZRE171,172..PKN |
1 | ||
| 55137-02070 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02060 |
NZE170,ZRE171,172..PKN |
1 | ||
| 55138-02060 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NZE170,ZRE171,172..PKN NO.1 |
6 | ||
| 90467-11127 |
NZE170,ZRE171,172..PKN NO.2 |
2 | ||
| 90467-11127 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH NO.2 |
2 | ||
| 90467-11122 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH NO.1 |
6 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NZE170,ZRE171,172..PKN NO.1 |
6 | ||
| 90467-11127 |
NZE170,ZRE171,172..PKN NO.2 |
2 | ||
| 90467-11127 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH NO.2 |
2 | ||
| 90467-11122 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH NO.1 |
6 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02070 |
NDE170,NZE170,ZRE17#..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02350 |
NZE170,ZRE171,172..PKN |
1 | ||
| 55226A - CLIP | ||||
| 90467-08186C0 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TH,VN BLACK |
4 | ||
| 90467-08186C3 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH BLACK |
4 | ||
| 90467-08186C3 |
NZE170,ZRE171,172..PKN BLACK |
4 | ||
| 55226A - CLIP | ||||
| 90467-08186C0 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TH,VN BLACK |
4 | ||
| 90467-08186C3 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH BLACK |
4 | ||
| 90467-08186C3 |
NZE170,ZRE171,172..PKN BLACK |
4 | ||
| 55226A - CLIP | ||||
| 90467-08186C0 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TH,VN BLACK |
4 | ||
| 90467-08186C3 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH BLACK |
4 | ||
| 90467-08186C3 |
NZE170,ZRE171,172..PKN BLACK |
4 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
NZE170,ZRE171,172..PKN |
2 | ||
| 55257-32010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
NZE170,ZRE171,172..PKN |
2 | ||
| 55257-32010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-02280 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57165-12070 |
NZE170,ZRE171,172..PKN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57166-12020 |
NZE170,ZRE171,172..PKN |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-02100 |
NZE170,ZRE171,172..PKN |
1 | ||
| 57167-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57168-02100 |
NZE170,ZRE171,172..PKN |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-02070 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| Common parts | ||||
| 90105-T0208 | ||||
| 90109-06380 | ||||
| 90119-06801 | ||||
| 90119-T0073 | ||||
| 90178-T0055 | ||||
| 90467-09220 | ||||
| 90467-10208 | ||||
| 90541-09117 | ||||
| 90541-15022 | ||||
| 91653-A0614 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 5701 | ||||
