NZE170R-GEPDKP (2014)
Toyota Corolla/Altis
(1310-1610)GCC,SGP,TAIW ; (1310-1611)ARL,GEN,IDN,MA,PHL,TH ; (1405-1703)IND ; (1407

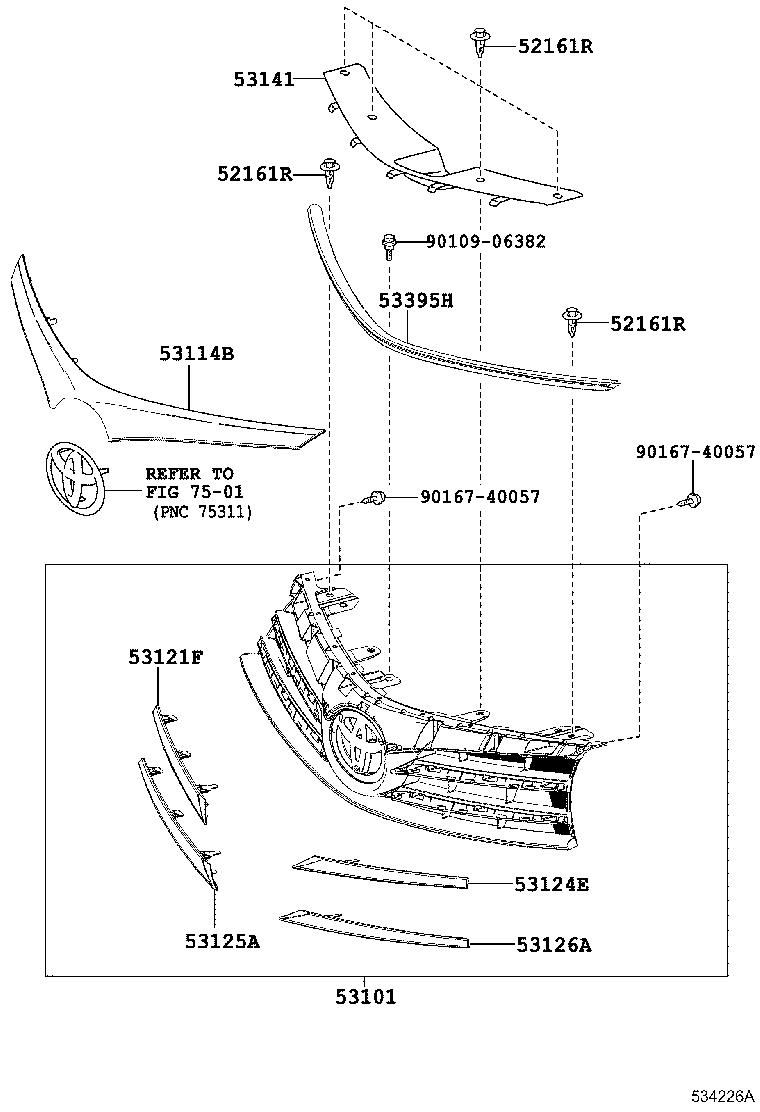

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-02110 |
NZE170,ZRE171..PKN NO PAINT REQ. |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-02310 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53114-02450 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-02220 |
NZE170,ZRE171..PKN |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-02210 |
NZE170,ZRE171..PKN |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-02070 |
NZE170,ZRE171..PKN |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-02100 |
NZE170,ZRE171..PKN |
1 | ||
| 53141 - COVER, RADIATOR | ||||
| 53141-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53141-02110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-02120 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(1407-1707)NZE170,ZRE171..PKN

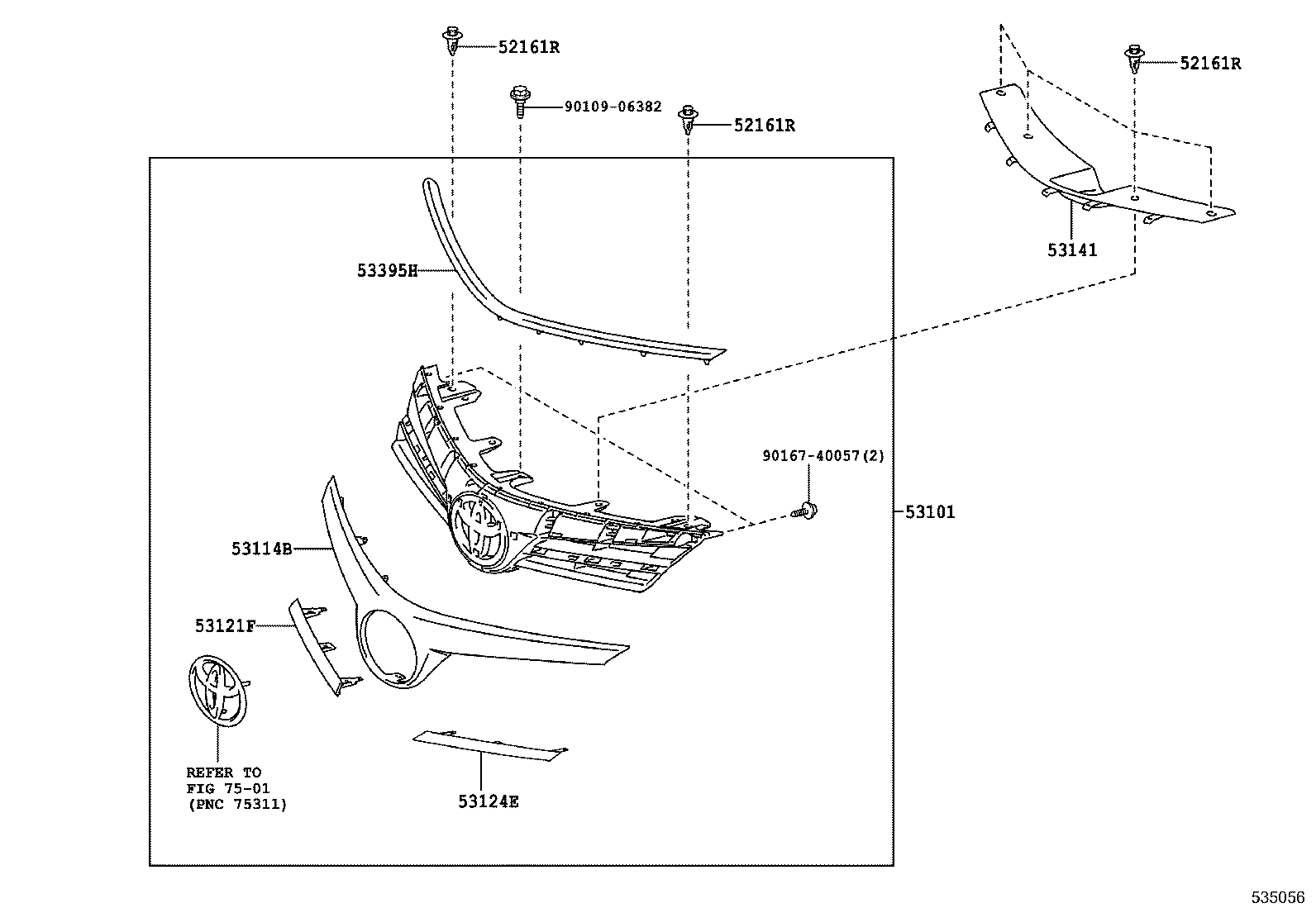

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-02110 |
NZE170,ZRE171..PKN NO PAINT REQ. |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-02310 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53114-02450 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-02220 |
NZE170,ZRE171..PKN |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-02210 |
NZE170,ZRE171..PKN |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-02070 |
NZE170,ZRE171..PKN |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-02100 |
NZE170,ZRE171..PKN |
1 | ||
| 53141 - COVER, RADIATOR | ||||
| 53141-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53141-02110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-02120 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(1610- )GCC,TAIW ; (1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703- )IND ; (1707
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171..PKN |
6 | ||
| 52161-16010 |
ZRE172..6F..(G,GL);ZRE171,173..GLI..GCC;ZRE172..CVT..(IND,TAIW);NDE170,NZE170,ZRE171..IND,PKN |
6 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-02110 |
NZE170,ZRE171..PKN NO PAINT REQ. |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-02310 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53114-02450 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-02220 |
NZE170,ZRE171..PKN |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-02210 |
NZE170,ZRE171..PKN |
1 | ||
| 53141 - COVER, RADIATOR | ||||
| 53141-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 53141-02110 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-02120 |
NZE170,ZRE171,172..PKN |
1 | ||
| 53395-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 7501 | ||||
