NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1601- )4FC..N ; (1601- )NDE170,NZE170,ZRE172,173 ; (1601- )ZRE171..GCC,GE

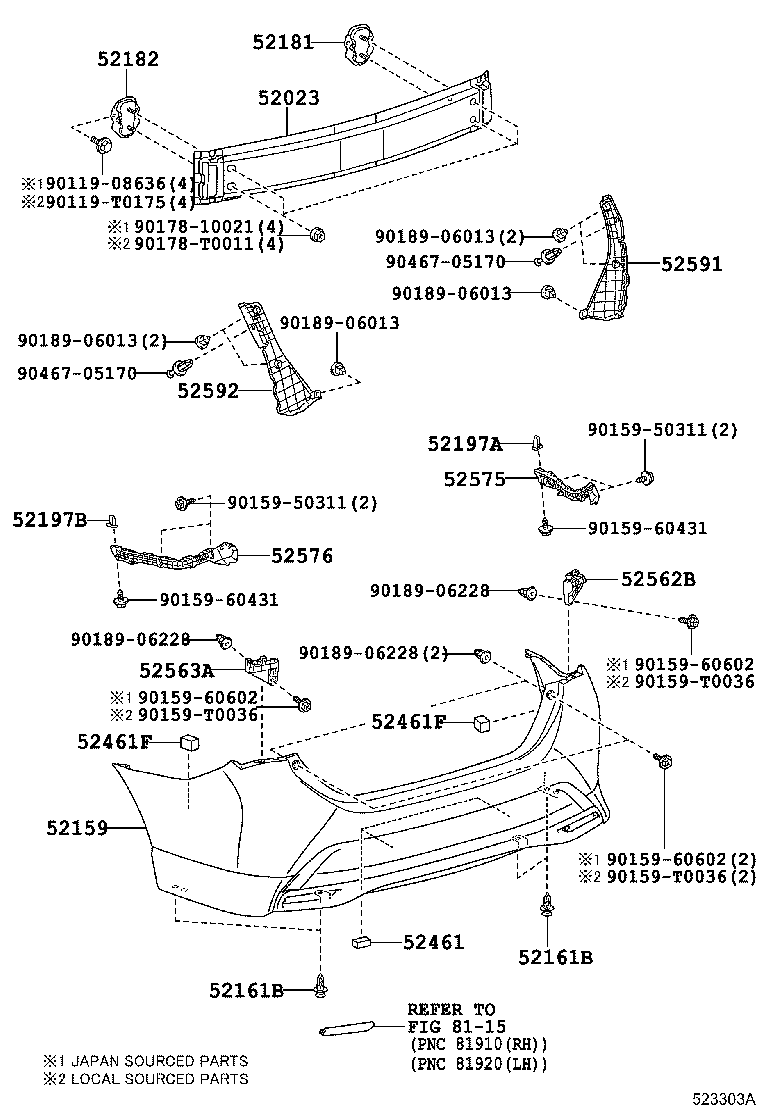

Click highlighted areas on diagram

SPORTY PACKAGE OR X PACKAGE

diagram 52023 52159 52161B 52161B 52181 52182 52197A 52197B 52461 52461F 52461F 52562B 52563A 52575 52576 52591 52592 8115 9011908636 90119T0175 9015950311 9015950311 9015960431 9015960431 9015960602 9015960602 9015960602 90159T0036 90159T0036 90159T0036 9017810021 90178T0011 9018906013 9018906013 9018906013 9018906013 9018906228 9018906228 9018906228 9046705170 9046705170
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-02190

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 1
52023-02190

NZE170,ZRE171,172..PKN

 1
52159 - COVER, REAR BUMPER
52159-0Z914

NZE170,ZRE171,172..PKN

PAINT REQ.

 1
52181 - ARM, REAR BUMPER, RH
52181-02190

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
52182 - ARM, REAR BUMPER, LH
52182-02160

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-22020

NZE170,ZRE171,172..PKN

 1
52197-22020

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-22020

NZE170,ZRE171,172..PKN

 1
52197-22020

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52461 - PAD, REAR BUMPER, CENTER
52462-02241

NZE170,ZRE171,172..PKN

 1
52462-02240

NDE170,NZE170,ZRE17#

 1
52461F - PAD, REAR BUMPER
52462-02200

NDE170,NZE170,ZRE17#

 2
52462-02201

NZE170,ZRE171,172..PKN

 2
52462-02201

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 2
52461F - PAD, REAR BUMPER
52462-02200

NDE170,NZE170,ZRE17#

 2
52462-02201

NZE170,ZRE171,172..PKN

 2
52462-02201

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-02250

NZE170,ZRE171,172..PKN

 1
52562-02250

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-02250

NZE170,ZRE171,172..PKN

 1
52563-02250

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-02140

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52575-02140

NZE170,ZRE171,172..PKN

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-02140

NZE170,ZRE171,172..PKN

 1
52576-02140

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-02300

ZRE173..4FC;ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN

 1
52591-02301

NZE170,ZRE171,172..PKN

 1
52591-02301

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-02300

ZRE173..4FC;ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN

 1
52592-02301

ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH

 1
52592-02301

NZE170,ZRE171,172..PKN

 1
Common parts
90119-08636
90119-T0175
90159-50311
90159-60431
90159-60602
90159-T0036
90178-10021
90178-T0011
90189-06013
90189-06228
90467-05170
Linked diagrams
8115
