NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NZE170

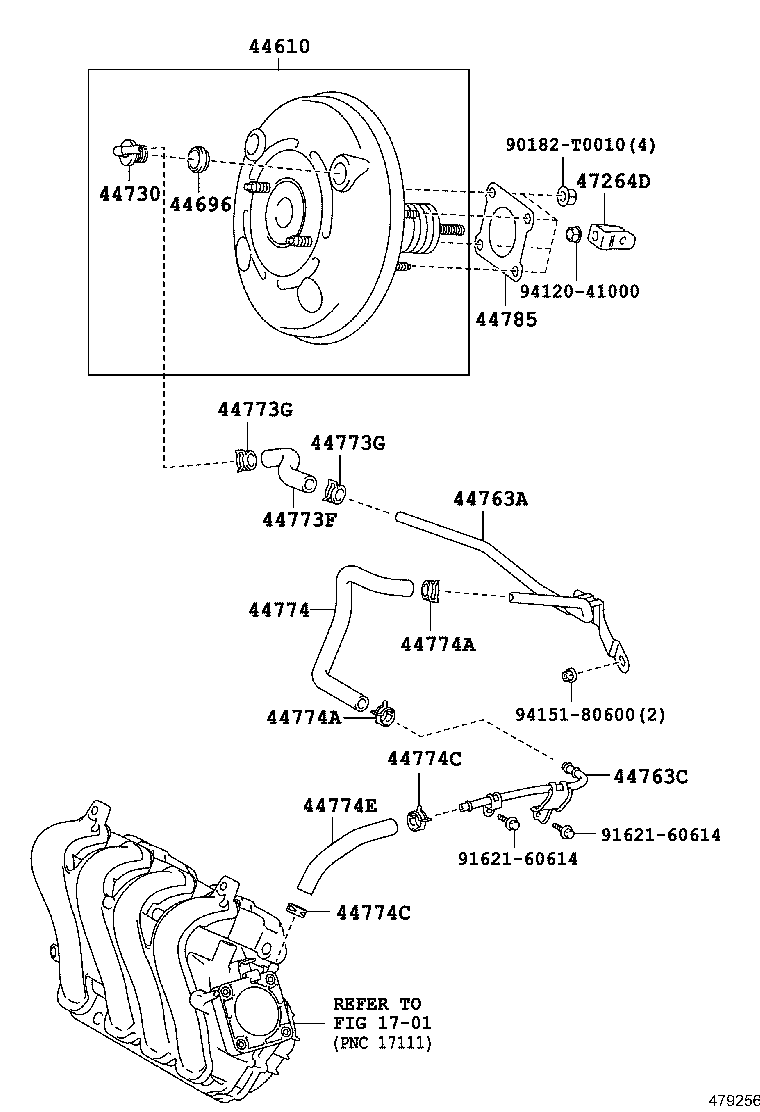

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763A 44763C 44773F 44773G 44773G 44774 44774A 44774A 44774C 44774C 44774E 44785 47264D 90182T0010 9162160614 9162160614 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-12L20

NZE170..XLI

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZRE171..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,173..GCC,IND,PKN,TAIW

 1
90480-24439

NZE170,ZRE171,172..PKN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

NZE170,ZRE171,172..PKN

 1
44730-20170

ZRE172..CVT..VN;NDE170,NZE170,ZRE171..ATM,MTM;ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,PKN,TAIW,TH

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02190

ZRE171..16J;NZE170,ZRE172,173..RHD;ZRE171..RHD..(HTWC,HTWVM)

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-52080

NZE170

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12820

NZE170

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-T0019

ZRE171..16J;ZRE171..RHD..(HTWC,HTWVM);NZE170,ZRE172,173..ARL,IDN,MA,PKN,TH

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-T0019

ZRE171..16J;ZRE171..RHD..(HTWC,HTWVM);NZE170,ZRE172,173..ARL,IDN,MA,PKN,TH

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12710

NZE170

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

ZRE171..16J;ZRE171..RHD..(HTWC,HTWVM);NZE170,ZRE172,173..ARL,IDN,MA,PKN,TH

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

ZRE171..16J;ZRE171..RHD..(HTWC,HTWVM);NZE170,ZRE172,173..ARL,IDN,MA,PKN,TH

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE170

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE170

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
95446-09130

NZE170

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

NZE170,ZRE171,172..PKN

 1
44785-12040

ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TAIW,TH

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

NDE170,NZE170,ZRE171,172..IND,PKN

 1
Common parts
90182-T0010
91621-60614
94120-41000
94151-80600
Linked diagrams
1701
