Toyota Corolla/altis NZE170 PARKING BRAKE & CABLE

NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1310-1609)GCC,TAIW ; (1310-1610)ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN ; (1610-1703)

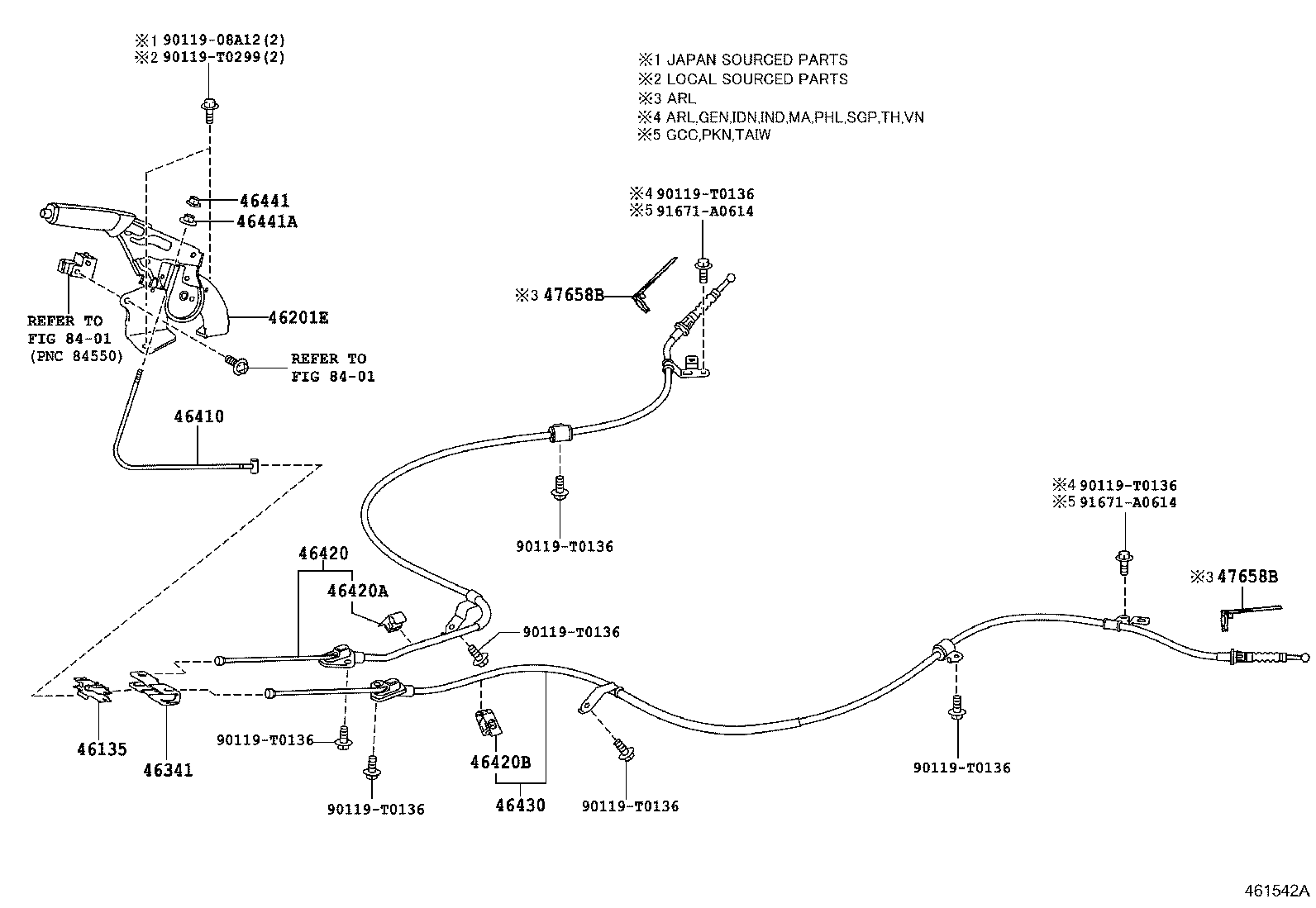

Click highlighted areas on diagram

REAR DISC BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46135-12010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02381C0	ZRE172..J;NZE170,ZRE171..PKN BLACK,TRIM0#	03/2017 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46341-12040	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02160	ZRE172..RHD..CVT;ZRE172..6F..(ARL,IND,PKN);NDE170,NZE170,ZRE171,173..RHD	11/2016 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02310	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-02040	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-02040	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02320	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
90179-06299	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-02020	ZRE171..RHD;ZRE171,173..(20G,20V,GLI)..(GCC,MA);NDE170,NZE170,ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH	10/2016 - 12/2999	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91671-80614
Linked diagrams
8401

(1610- )GCC,TAIW ; (1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703- )IND ; (1707

Click highlighted areas on diagram

REAR DISC BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46135-12010	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02381C0	ZRE172..J;NZE170,ZRE171..PKN BLACK,TRIM0#	03/2017 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-12040	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46341-12040	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02160	ZRE172..RHD..CVT;ZRE172..6F..(ARL,IND,PKN);NDE170,NZE170,ZRE171,173..RHD	11/2016 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02310	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-02040	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-02040	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02320	ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN)	11/2016 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH	10/2016 - 12/2999	1
90179-06299	NZE170,ZRE171,172..PKN	10/2013 - 07/2017	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-02020	ZRE171..RHD;ZRE171,173..(20G,20V,GLI)..(GCC,MA);NDE170,NZE170,ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH	10/2016 - 12/2999	1
Common parts
90119-08A12
90119-T0136
90119-T0299
91671-A0614
Linked diagrams
8401
