NZE170R-GEPDKP (2014)
Toyota Corolla/Altis

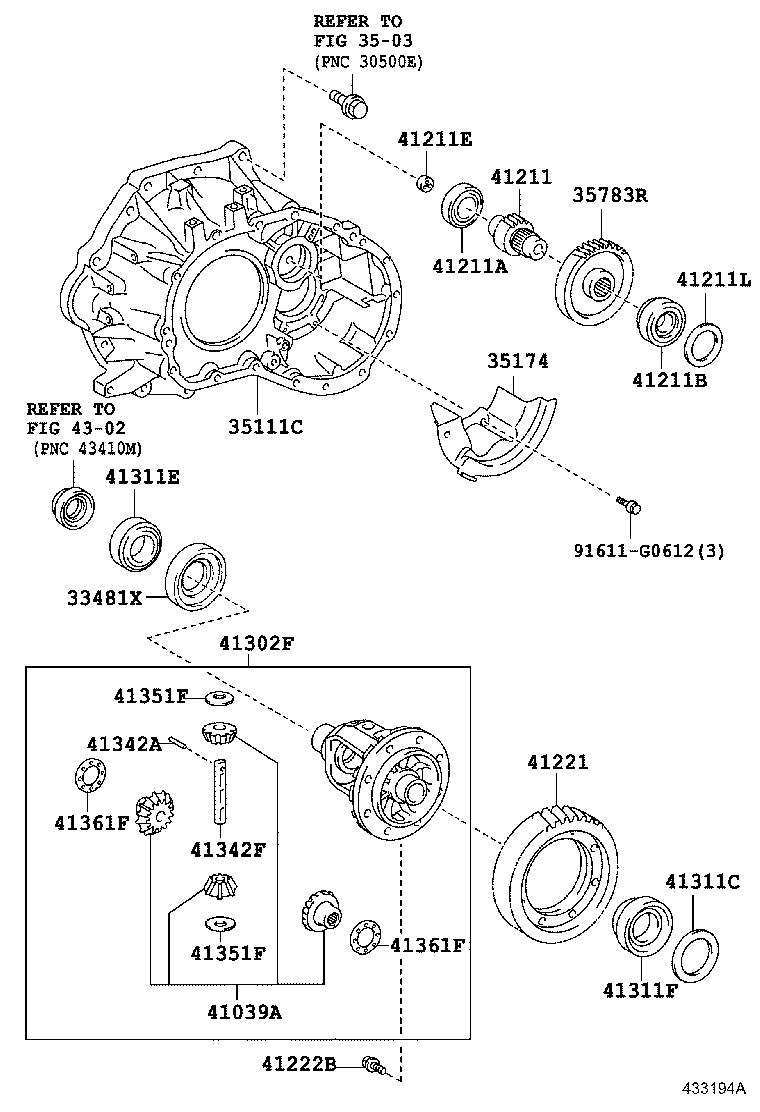

(1407-1601)NZE170..4FC
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481X - GEAR, SPEEDOMETER DRIVE | ||||
| 33481-12040 |
NZE170..4FC |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12070 |
NZE170..4FC |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-52020 |
NZE170..4FC |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35783-52030 |
NZE170..4FC |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-44020 |
NZE170..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-52060 |
NZE170..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30079 |
NZE170..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-29004 |
NZE170..4FC |
1 | ||
| 41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90339-13005 |
NZE170..4FC |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-51039 |
NZE170..4FC T=1.70,MARK 1 |
1 | ||
| 90564-51040 |
NZE170..4FC T=1.75,MARK 2 |
1 | ||
| 90564-51046 |
NZE170..4FC T=1.99,MARK A |
1 | ||
| 90564-51041 |
NZE170..4FC T=1.80,MARK 3 |
1 | ||
| 90564-51043 |
NZE170..4FC T=1.90,MARK 5 |
1 | ||
| 90564-51044 |
NZE170..4FC T=1.93,MARK 6 |
1 | ||
| 90564-51050 |
NZE170..4FC T=2.11,MARK E |
1 | ||
| 90564-51042 |
NZE170..4FC T=1.85,MARK 4 |
1 | ||
| 90564-51052 |
NZE170..4FC T=2.17,MARK G |
1 | ||
| 90564-51056 |
NZE170..4FC T=2.35,MARK M |
1 | ||
| 90564-51045 |
NZE170..4FC T=1.96,MARK 7 |
1 | ||
| 90564-51048 |
NZE170..4FC T=2.05,MARK C |
1 | ||
| 90564-51047 |
NZE170..4FC T=2.02,MARK B |
1 | ||
| 90564-51053 |
NZE170..4FC T=2.20,MARK H |
1 | ||
| 90564-51054 |
NZE170..4FC T=2.25,MARK K |
1 | ||
| 90564-51049 |
NZE170..4FC T=2.08,MARK D |
1 | ||
| 90564-51060 |
NZE170..4FC T=2.55,MARK R |
1 | ||
| 90564-51058 |
NZE170..4FC T=2.45,MARK P |
1 | ||
| 90564-51055 |
NZE170..4FC T=2.30,MARK L |
1 | ||
| 90564-51063 |
NZE170..4FC T=2.70,MARK W |
1 | ||
| 90564-51051 |
NZE170..4FC T=2.14,MARK F |
1 | ||
| 90564-51061 |
NZE170..4FC T=2.60,MARK S |
1 | ||
| 90564-51062 |
NZE170..4FC T=2.65,MARK U |
1 | ||
| 90564-51057 |
NZE170..4FC T=2.40,MARK N |
1 | ||
| 90564-51059 |
NZE170..4FC T=2.50,MARK Q |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52080 |
NZE170..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
NZE170..4FC |
8 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-52010 |
NZE170..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-42080 |
NZE170..4FC T=1.80, MARK A |
1 | ||
| 90564-42085 |
NZE170..4FC T=2.05, MARK F |
1 | ||
| 90564-42083 |
NZE170..4FC T=1.95, MARK D |
1 | ||
| 90564-42081 |
NZE170..4FC T=1.85, MARK B |
1 | ||
| 90564-42086 |
NZE170..4FC T=2.08, MARK G |
1 | ||
| 90564-42082 |
NZE170..4FC T=1.90, MARK C |
1 | ||
| 90564-42090 |
NZE170..4FC T=2.20, MARK L |
1 | ||
| 90564-42088 |
NZE170..4FC T=2.14, MARK J |
1 | ||
| 90564-42096 |
NZE170..4FC T=2.40, MARK S |
1 | ||
| 90564-42084 |
NZE170..4FC T=2.00, MARK E |
1 | ||
| 90564-42092 |
NZE170..4FC T=2.26, MARK N |
1 | ||
| 90564-42095 |
NZE170..4FC T=2.35, MARK R |
1 | ||
| 90564-42089 |
NZE170..4FC T=2.17, MARK K |
1 | ||
| 90564-42094 |
NZE170..4FC T=2.32, MARK Q |
1 | ||
| 90564-42087 |
NZE170..4FC T=2.11, MARK H |
1 | ||
| 90564-42093 |
NZE170..4FC T=2.29, MARK P |
1 | ||
| 90564-42097 |
NZE170..4FC T=2.45, MARK T |
1 | ||
| 90564-42098 |
NZE170..4FC T=2.50, MARK U |
1 | ||
| 90564-42102 |
NZE170..4FC T=2.70, MARK Y |
1 | ||
| 90564-42099 |
NZE170..4FC T=2.55, MARK V |
1 | ||
| 90564-42091 |
NZE170..4FC T=2.23, MARK M |
1 | ||
| 90564-42100 |
NZE170..4FC T=2.60, MARK W |
1 | ||
| 90564-42101 |
NZE170..4FC T=2.65, MARK X |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38026 |
NZE170..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-38023 |
NZE170..4FC |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
NZE170..4FC |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-10041 |
NZE170..4FC |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52010 |
NZE170..4FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52010 |
NZE170..4FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52030 |
NZE170..4FC T=1.60 |
2 | ||
| 41361-52020 |
NZE170..4FC T=1.55 |
2 | ||
| 41361-52010 |
NZE170..4FC T=1.50 |
2 | ||
| 41361-52050 |
NZE170..4FC T=1.70 |
2 | ||
| 41361-52040 |
NZE170..4FC T=1.65 |
2 | ||
| 41361-52060 |
NZE170..4FC T=1.75 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52030 |
NZE170..4FC T=1.60 |
2 | ||
| 41361-52020 |
NZE170..4FC T=1.55 |
2 | ||
| 41361-52010 |
NZE170..4FC T=1.50 |
2 | ||
| 41361-52050 |
NZE170..4FC T=1.70 |
2 | ||
| 41361-52040 |
NZE170..4FC T=1.65 |
2 | ||
| 41361-52060 |
NZE170..4FC T=1.75 |
2 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||

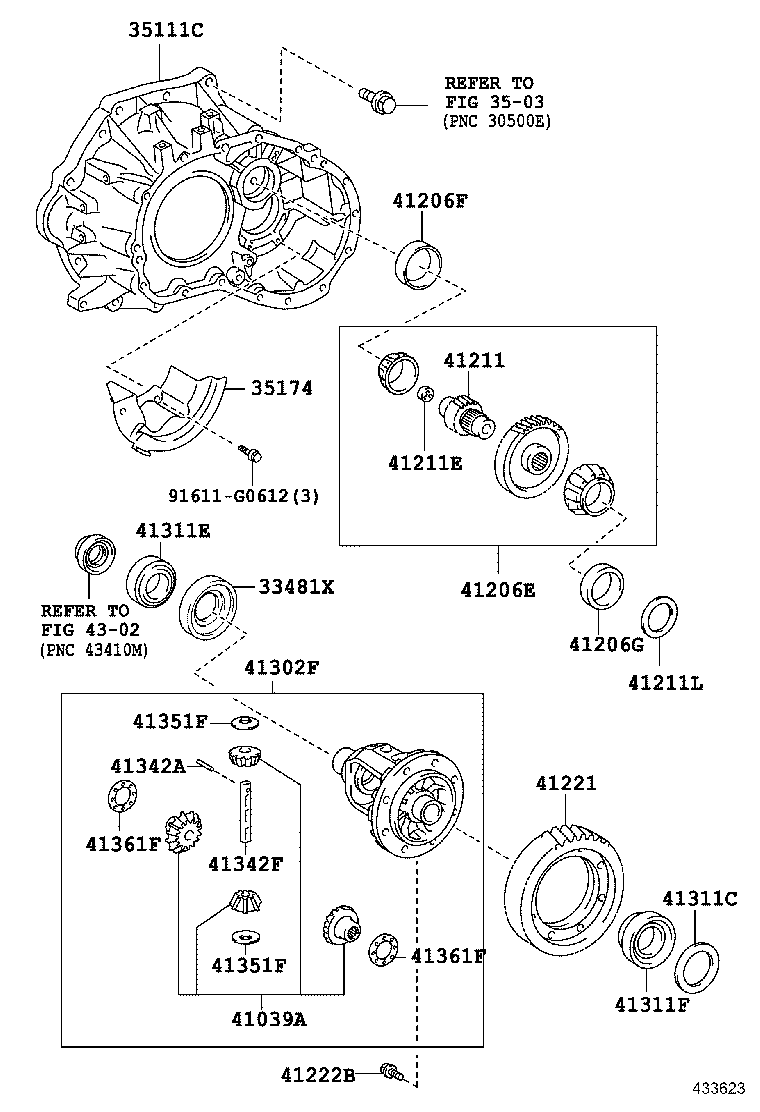

(1601- )NZE170..4FC
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481X - GEAR, SPEEDOMETER DRIVE | ||||
| 33481-12040 |
NZE170..4FC |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12070 |
NZE170..4FC |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-52020 |
NZE170..4FC |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-44020 |
NZE170..4FC |
1 | ||
| 41206E - GEAR SUB-ASSY, PINION & COUNTER DRIVEN | ||||
| 41206-52010 |
NZE170..4FC |
1 | ||
| 41206F - OUTER RACE, TAPERED ROLLER BEARING RH | ||||
| 90366-30080 |
NZE170..4FC |
1 | ||
| 41206G - OUTER RACE, TAPERED ROLLER BEARING LH | ||||
| 90366-29005 |
NZE170..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-52060 |
NZE170..4FC |
1 | ||
| 41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90339-13005 |
NZE170..4FC |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-51039 |
NZE170..4FC T=1.70,MARK 1 |
1 | ||
| 90564-51040 |
NZE170..4FC T=1.75,MARK 2 |
1 | ||
| 90564-51046 |
NZE170..4FC T=1.99,MARK A |
1 | ||
| 90564-51041 |
NZE170..4FC T=1.80,MARK 3 |
1 | ||
| 90564-51043 |
NZE170..4FC T=1.90,MARK 5 |
1 | ||
| 90564-51044 |
NZE170..4FC T=1.93,MARK 6 |
1 | ||
| 90564-51050 |
NZE170..4FC T=2.11,MARK E |
1 | ||
| 90564-51042 |
NZE170..4FC T=1.85,MARK 4 |
1 | ||
| 90564-51052 |
NZE170..4FC T=2.17,MARK G |
1 | ||
| 90564-51056 |
NZE170..4FC T=2.35,MARK M |
1 | ||
| 90564-51045 |
NZE170..4FC T=1.96,MARK 7 |
1 | ||
| 90564-51048 |
NZE170..4FC T=2.05,MARK C |
1 | ||
| 90564-51047 |
NZE170..4FC T=2.02,MARK B |
1 | ||
| 90564-51053 |
NZE170..4FC T=2.20,MARK H |
1 | ||
| 90564-51054 |
NZE170..4FC T=2.25,MARK K |
1 | ||
| 90564-51049 |
NZE170..4FC T=2.08,MARK D |
1 | ||
| 90564-51060 |
NZE170..4FC T=2.55,MARK R |
1 | ||
| 90564-51058 |
NZE170..4FC T=2.45,MARK P |
1 | ||
| 90564-51055 |
NZE170..4FC T=2.30,MARK L |
1 | ||
| 90564-51063 |
NZE170..4FC T=2.70,MARK W |
1 | ||
| 90564-51051 |
NZE170..4FC T=2.14,MARK F |
1 | ||
| 90564-51061 |
NZE170..4FC T=2.60,MARK S |
1 | ||
| 90564-51062 |
NZE170..4FC T=2.65,MARK U |
1 | ||
| 90564-51057 |
NZE170..4FC T=2.40,MARK N |
1 | ||
| 90564-51059 |
NZE170..4FC T=2.50,MARK Q |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52080 |
NZE170..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
NZE170..4FC |
8 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-52010 |
NZE170..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-42080 |
NZE170..4FC T=1.80, MARK A |
1 | ||
| 90564-42085 |
NZE170..4FC T=2.05, MARK F |
1 | ||
| 90564-42083 |
NZE170..4FC T=1.95, MARK D |
1 | ||
| 90564-42081 |
NZE170..4FC T=1.85, MARK B |
1 | ||
| 90564-42086 |
NZE170..4FC T=2.08, MARK G |
1 | ||
| 90564-42082 |
NZE170..4FC T=1.90, MARK C |
1 | ||
| 90564-42090 |
NZE170..4FC T=2.20, MARK L |
1 | ||
| 90564-42088 |
NZE170..4FC T=2.14, MARK J |
1 | ||
| 90564-42096 |
NZE170..4FC T=2.40, MARK S |
1 | ||
| 90564-42084 |
NZE170..4FC T=2.00, MARK E |
1 | ||
| 90564-42092 |
NZE170..4FC T=2.26, MARK N |
1 | ||
| 90564-42095 |
NZE170..4FC T=2.35, MARK R |
1 | ||
| 90564-42089 |
NZE170..4FC T=2.17, MARK K |
1 | ||
| 90564-42094 |
NZE170..4FC T=2.32, MARK Q |
1 | ||
| 90564-42087 |
NZE170..4FC T=2.11, MARK H |
1 | ||
| 90564-42093 |
NZE170..4FC T=2.29, MARK P |
1 | ||
| 90564-42097 |
NZE170..4FC T=2.45, MARK T |
1 | ||
| 90564-42098 |
NZE170..4FC T=2.50, MARK U |
1 | ||
| 90564-42102 |
NZE170..4FC T=2.70, MARK Y |
1 | ||
| 90564-42099 |
NZE170..4FC T=2.55, MARK V |
1 | ||
| 90564-42091 |
NZE170..4FC T=2.23, MARK M |
1 | ||
| 90564-42100 |
NZE170..4FC T=2.60, MARK W |
1 | ||
| 90564-42101 |
NZE170..4FC T=2.65, MARK X |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38026 |
NZE170..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-38023 |
NZE170..4FC |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
NZE170..4FC |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-10041 |
NZE170..4FC |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52010 |
NZE170..4FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52010 |
NZE170..4FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52030 |
NZE170..4FC T=1.60 |
2 | ||
| 41361-52020 |
NZE170..4FC T=1.55 |
2 | ||
| 41361-52010 |
NZE170..4FC T=1.50 |
2 | ||
| 41361-52050 |
NZE170..4FC T=1.70 |
2 | ||
| 41361-52040 |
NZE170..4FC T=1.65 |
2 | ||
| 41361-52060 |
NZE170..4FC T=1.75 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52030 |
NZE170..4FC T=1.60 |
2 | ||
| 41361-52020 |
NZE170..4FC T=1.55 |
2 | ||
| 41361-52010 |
NZE170..4FC T=1.50 |
2 | ||
| 41361-52050 |
NZE170..4FC T=1.70 |
2 | ||
| 41361-52040 |
NZE170..4FC T=1.65 |
2 | ||
| 41361-52060 |
NZE170..4FC T=1.75 |
2 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12070 |
NZE170..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30079 |
NZE170..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-29004 |
NZE170..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52080 |
NZE170..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52080 |
NZE170..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
NZE170..4FC |
8 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
NZE170..4FC |
8 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-52010 |
NZE170..4FC |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-52010 |
NZE170..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-42080 |
NZE170..4FC T=1.80, MARK A |
1 | ||
| 90564-42085 |
NZE170..4FC T=2.05, MARK F |
1 | ||
| 90564-42083 |
NZE170..4FC T=1.95, MARK D |
1 | ||
| 90564-42081 |
NZE170..4FC T=1.85, MARK B |
1 | ||
| 90564-42086 |
NZE170..4FC T=2.08, MARK G |
1 | ||
| 90564-42082 |
NZE170..4FC T=1.90, MARK C |
1 | ||
| 90564-42090 |
NZE170..4FC T=2.20, MARK L |
1 | ||
| 90564-42088 |
NZE170..4FC T=2.14, MARK J |
1 | ||
| 90564-42096 |
NZE170..4FC T=2.40, MARK S |
1 | ||
| 90564-42084 |
NZE170..4FC T=2.00, MARK E |
1 | ||
| 90564-42092 |
NZE170..4FC T=2.26, MARK N |
1 | ||
| 90564-42095 |
NZE170..4FC T=2.35, MARK R |
1 | ||
| 90564-42089 |
NZE170..4FC T=2.17, MARK K |
1 | ||
| 90564-42094 |
NZE170..4FC T=2.32, MARK Q |
1 | ||
| 90564-42087 |
NZE170..4FC T=2.11, MARK H |
1 | ||
| 90564-42093 |
NZE170..4FC T=2.29, MARK P |
1 | ||
| 90564-42097 |
NZE170..4FC T=2.45, MARK T |
1 | ||
| 90564-42098 |
NZE170..4FC T=2.50, MARK U |
1 | ||
| 90564-42102 |
NZE170..4FC T=2.70, MARK Y |
1 | ||
| 90564-42099 |
NZE170..4FC T=2.55, MARK V |
1 | ||
| 90564-42091 |
NZE170..4FC T=2.23, MARK M |
1 | ||
| 90564-42100 |
NZE170..4FC T=2.60, MARK W |
1 | ||
| 90564-42101 |
NZE170..4FC T=2.65, MARK X |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38026 |
NZE170..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-38023 |
NZE170..4FC |
1 | ||
| Linked diagrams | ||||
| 3401 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
