NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )2NZFE

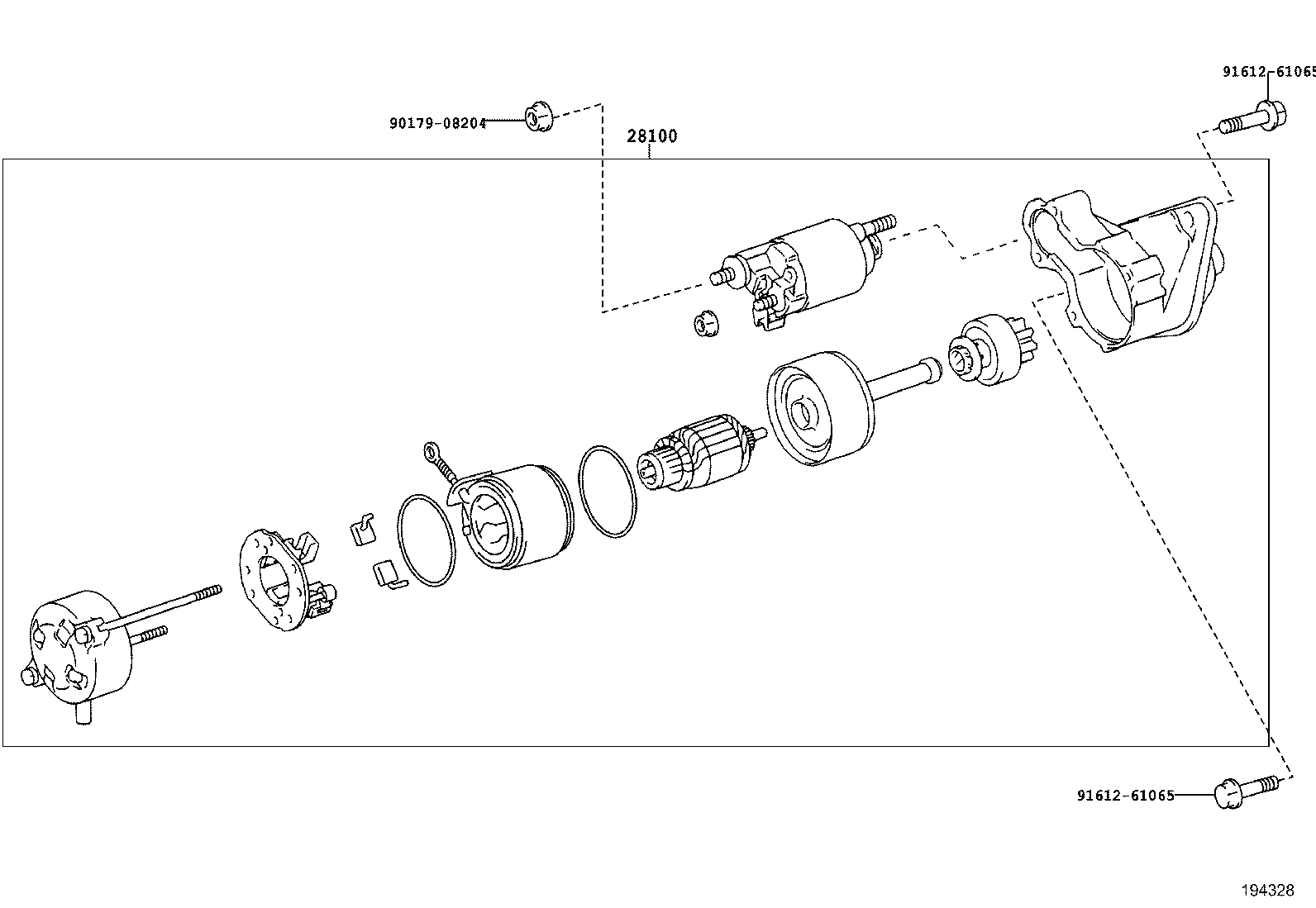

Click highlighted areas on diagram

12V 0.8KW

diagram 28100 9017908204 9161261065 9161261065
Part # Description Qty Price
28100 - STARTER ASSY
28100-0M150

2NZFE..NZE170

12V 0.8KW

 1
Common parts
90179-08204
91612-61065
