NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )2NZFE

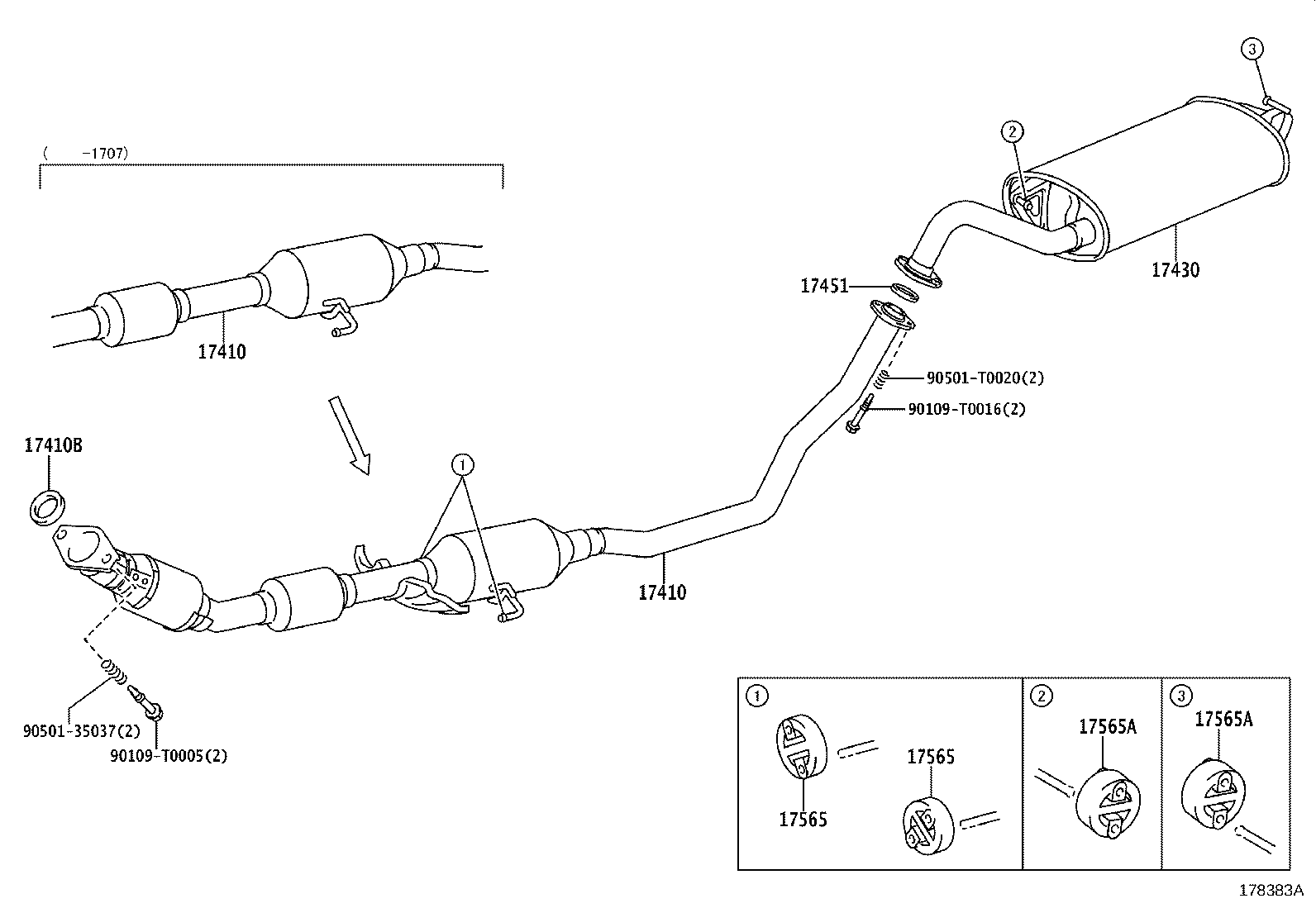

Click highlighted areas on diagram

diagram 17410 17410 17410B 17430 17451 17565 17565 17565A 17565A 90109T0005 90109T0016 9050135037 90501T0020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0M250

2NZFE..NZE170

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0M250

2NZFE..NZE170

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

2NZFE..NZE170

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T410

2NZFE,1ZRFE,2ZRFE..NZE170,ZRE171,172..PKN

 1
17451 - GASKET, EXHAUST PIPE
17451-0M032

2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P100

2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P100

2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P110

2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P110

2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 2
Common parts
90109-T0005
90109-T0016
90501-35037
90501-T0020
