NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1512)3ZRFE..6F ; (1310-1601)1ZR#..CNG ; (1310-1601)1ZRFE..6F..GCC ; (1310-

Click highlighted areas on diagram

diagram 1106 16100 16271 9155180825
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29157

2NZFE..NZE170

 1
16100-29157

2NZFE..NZE170

 1
16271 - GASKET, WATER PUMP
16271-21021

2NZFE..NZE170

 1
16271-21021

2NZFE..NZE170

 1
Common parts
91551-80825
Linked diagrams
1106

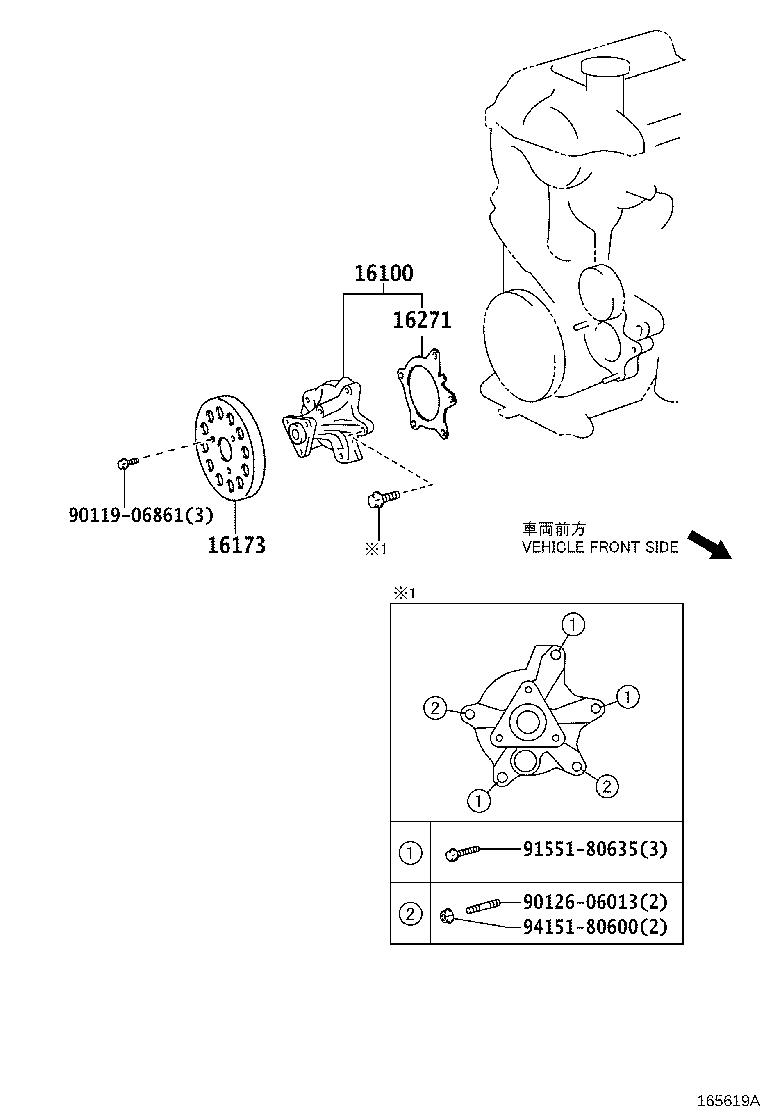

(1407- )2NZFE

Click highlighted areas on diagram

diagram 16100 16173 16271 9011906861 9012606013 9155180635 9415180600
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29157

2NZFE..NZE170

 1
16173 - PULLEY, WATER PUMP
16173-21020

2NZFE..NZE170

 1
16271 - GASKET, WATER PUMP
16271-21021

2NZFE..NZE170

 1
Common parts
90119-06861
90126-06013
91551-80635
94151-80600

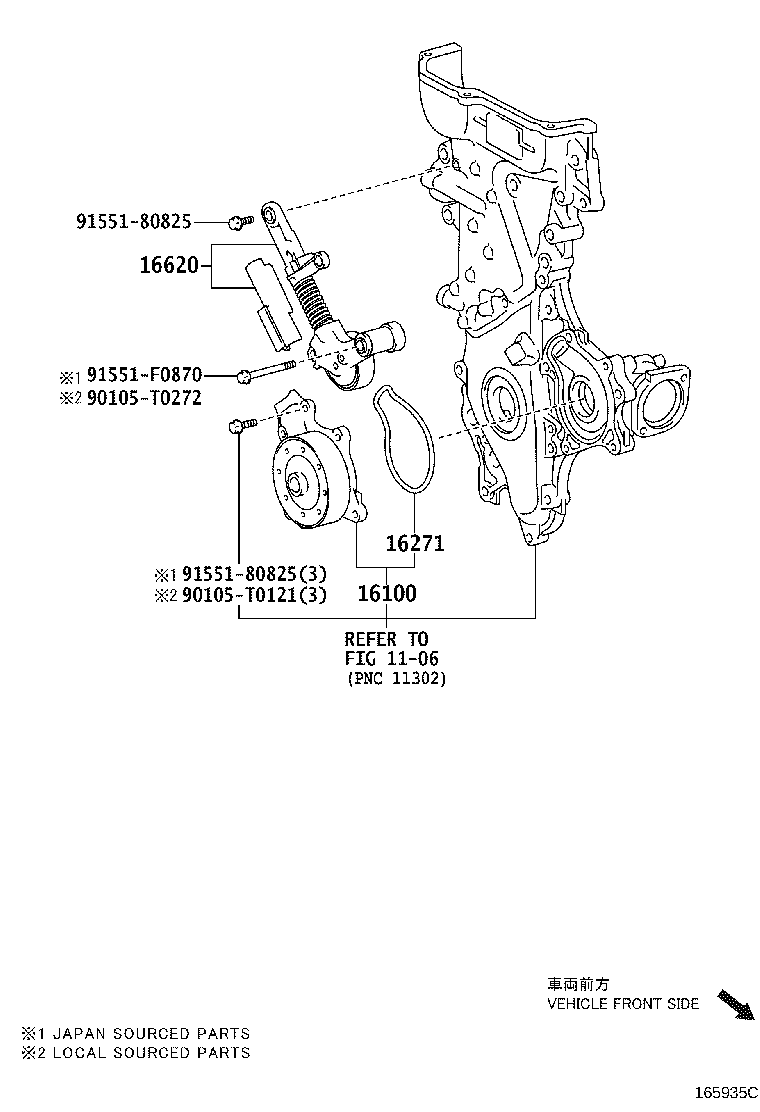

(1601- )2ZRFE..TH;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..GEN,MA,PHL,PKN,TH,VN

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 90105T0121 90105T0272 9155180825 9155180825 91551F0870
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29157

2NZFE..NZE170

 1
16100-29157

2NZFE..NZE170

 1
16271 - GASKET, WATER PUMP
16271-21021

2NZFE..NZE170

 1
16271-21021

2NZFE..NZE170

 1
Common parts
90105-T0121
90105-T0272
91551-80825
91551-F0870
Linked diagrams
1106
