NZE170R-GEPDKP (2014)

Toyota Corolla/Altis

Production Jul 2014 - Jul 2017

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1407- )2NZFE

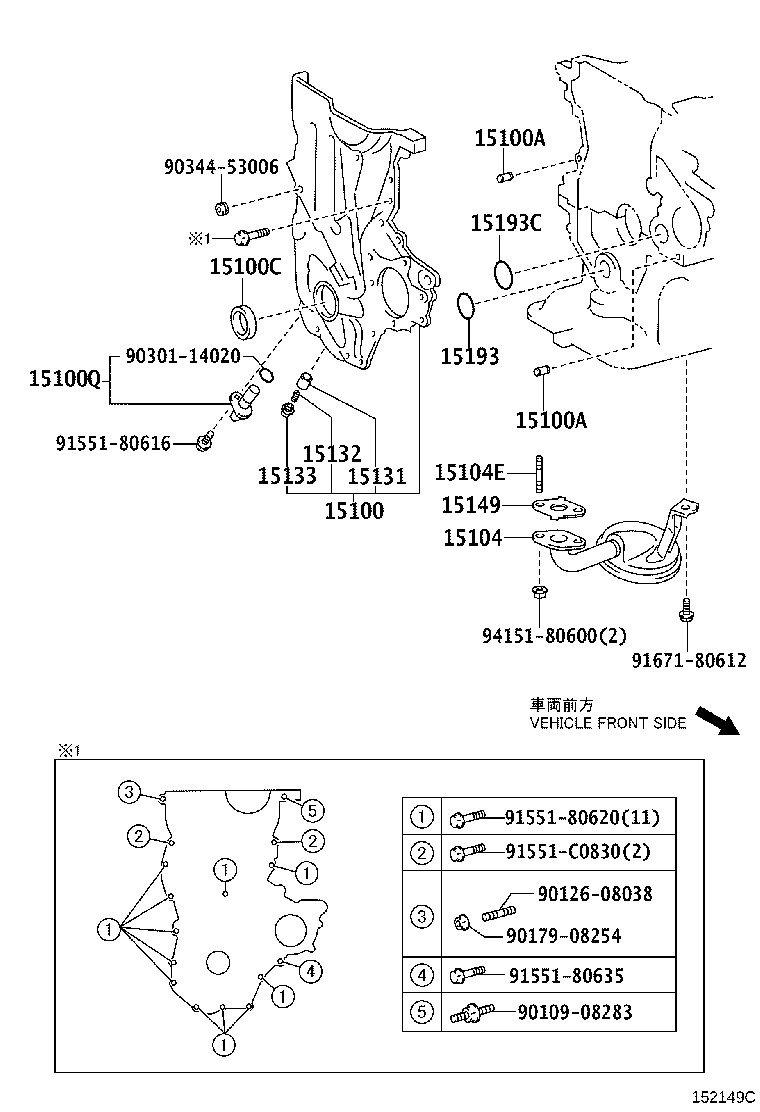

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15100 - PUMP ASSY, OIL
15100-21032	2NZFE..NZE170	07/2014 - 07/2017	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	2NZFE..NZE170	07/2014 - 07/2017	2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	2NZFE..NZE170	07/2014 - 07/2017	2
15100C - SEAL(FOR OIL PUMP)
90311-25034	2NZFE..NZE170	07/2014 - 07/2017	1
15100Q - SENSOR, CRANK POSITION
90919-05087	2NZFE..NZE170	07/2014 - 07/2017	1
15104 - STRAINER SUB-ASSY, OIL
15104-21022	2NZFE..NZE170	07/2014 - 07/2017	1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021	2NZFE..NZE170	07/2014 - 07/2017	2
15131 - VALVE, OIL PUMP RELIEF
15131-21020	2NZFE..NZE170	07/2014 - 07/2017	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21020	2NZFE..NZE170	07/2014 - 07/2017	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21030	2NZFE..NZE170	07/2014 - 07/2017	1
15149 - GASKET, OIL STRAINER FLANGE
16258-21030	2NZFE..NZE170	07/2014 - 07/2017	1
15193 - GASKET, OIL PUMP
12151-21010	2NZFE..NZE170	07/2014 - 07/2017	1
15193C - GASKET, OIL PUMP NO.2
11497-21010	2NZFE..NZE170	07/2014 - 07/2017	1
Common parts
90109-08283
90126-08038
90179-08254
90301-14020
90344-53006
91551-80616
91551-80620
91551-80635
91551-C0830
91671-80612
94151-80600
