NZE170R-GEPDKP (2014)
Toyota Corolla/Altis
Production
Jul 2014
-
Jul 2017
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1407- )2NZFE..4FC

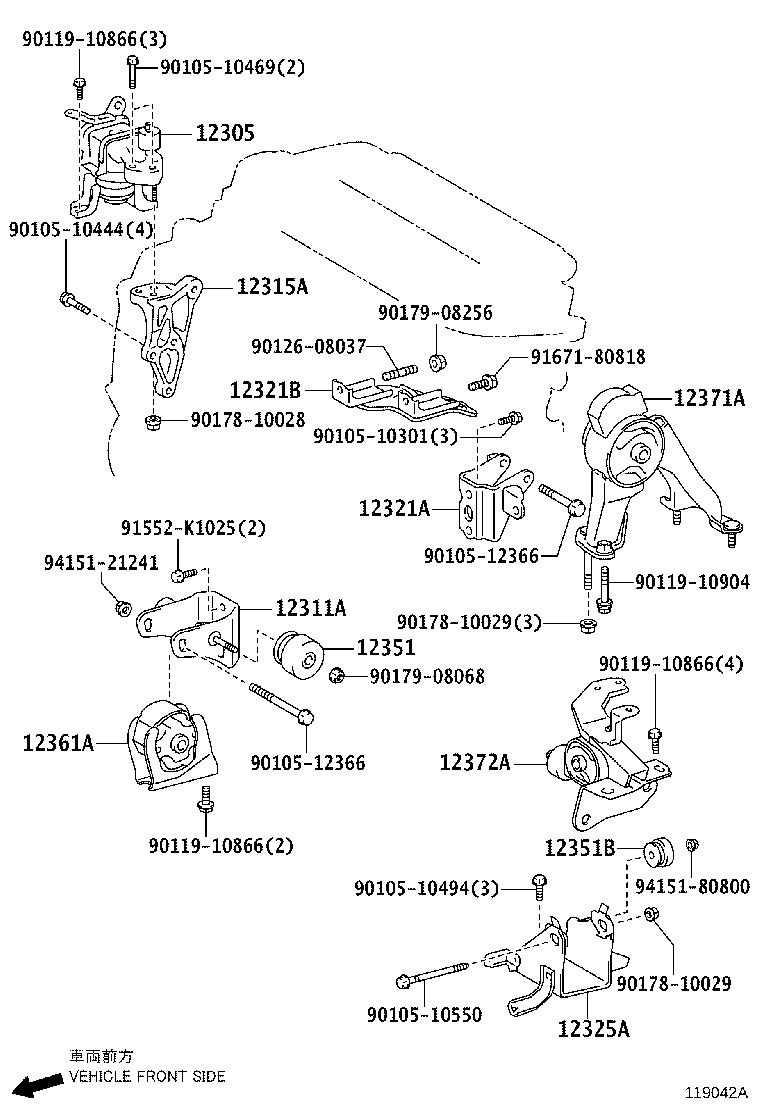

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21550 |
2NZFE..NZE170 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0M020 |
2NZFE..NZE170..4FC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0M020 |
2NZFE..NZE170 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0M050 |
2NZFE..NZE170..4FC |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
2NZFE..NZE170 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21280 |
2NZFE..NZE170..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-22080 |
2NZFE..NZE170..4FC |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-11072 |
2NZFE..NZE170..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-21090 |
2NZFE..NZE170..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-21320 |
2NZFE..NZE170..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21380 |
2NZFE..NZE170..4FC |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10444 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90126-08037 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 91552-K1025 | ||||
| 91671-80818 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
