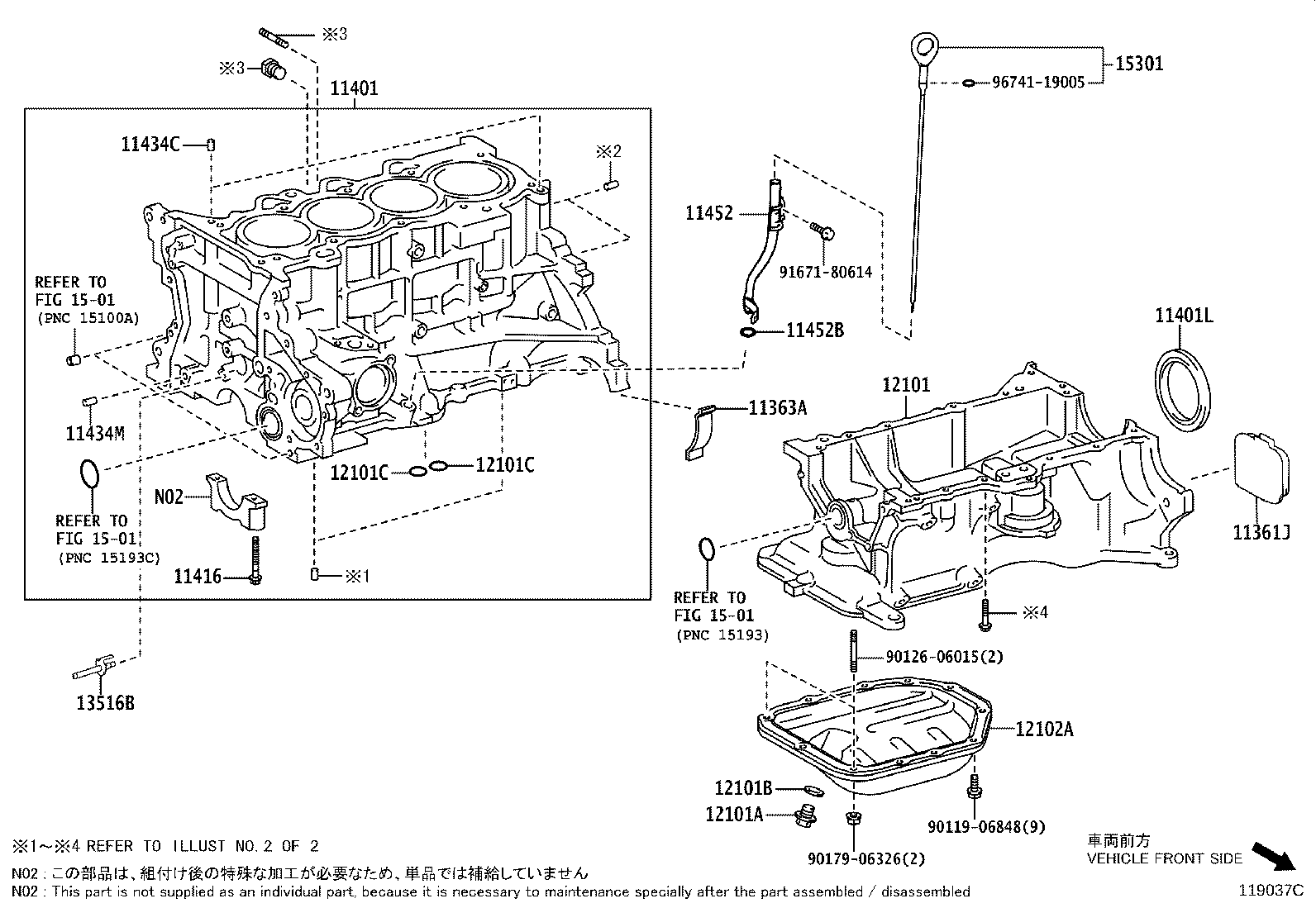

Toyota Corolla/altis NZE170 CYLINDER BLOCK

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-21011	2NZFE..NZE170	07/2014 - 07/2017	1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010	2NZFE..NZE170	07/2014 - 07/2017	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29847	2NZFE..NZE170	07/2014 - 12/2015	1
11401-29848	2NZFE..NZE170	12/2015 - 07/2017	1
11401L - SEAL, ENGINE REAR OIL
90311-75019	2NZFE..NZE170	07/2014 - 03/2016	1
90311-75022	2NZFE..NZE170	04/2016 - 07/2017	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02125	2NZFE..NZE170	07/2014 - 07/2017	10
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-10030	2NZFE..NZE170	07/2014 - 07/2017	1
11452 - GUIDE, OIL LEVEL GAGE
11452-21030	2NZFE..NZE170	07/2014 - 07/2017	1
12101 - PAN SUB-ASSY, OIL
12111-21033	2NZFE..NZE170	07/2014 - 07/2017	1
12101C - RING, O(FOR OIL PAN)
96722-24020	2NZFE..NZE170	07/2014 - 07/2017	2
12101C - RING, O(FOR OIL PAN)
96722-24020	2NZFE..NZE170	07/2014 - 07/2017	2
12102A - PAN SUB-ASSY, OIL, NO.2
12102-21010	2NZFE..NZE170	07/2014 - 07/2017	1
13516B - JET, OIL
13516-21011	2NZFE..NZE170	07/2014 - 07/2017	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-21061	2NZFE..NZE170	04/2017 - 05/2017	1
15301-21062	2NZFE..NZE170	06/2017 - 07/2017	1
15301-21060	2NZFE..NZE170	07/2014 - 03/2017	1
Common parts
90119-06848
90126-06015
90179-06326
91671-80614
96741-19005
Linked diagrams
1501

NZE170R-GEPDKP (2014)
