NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

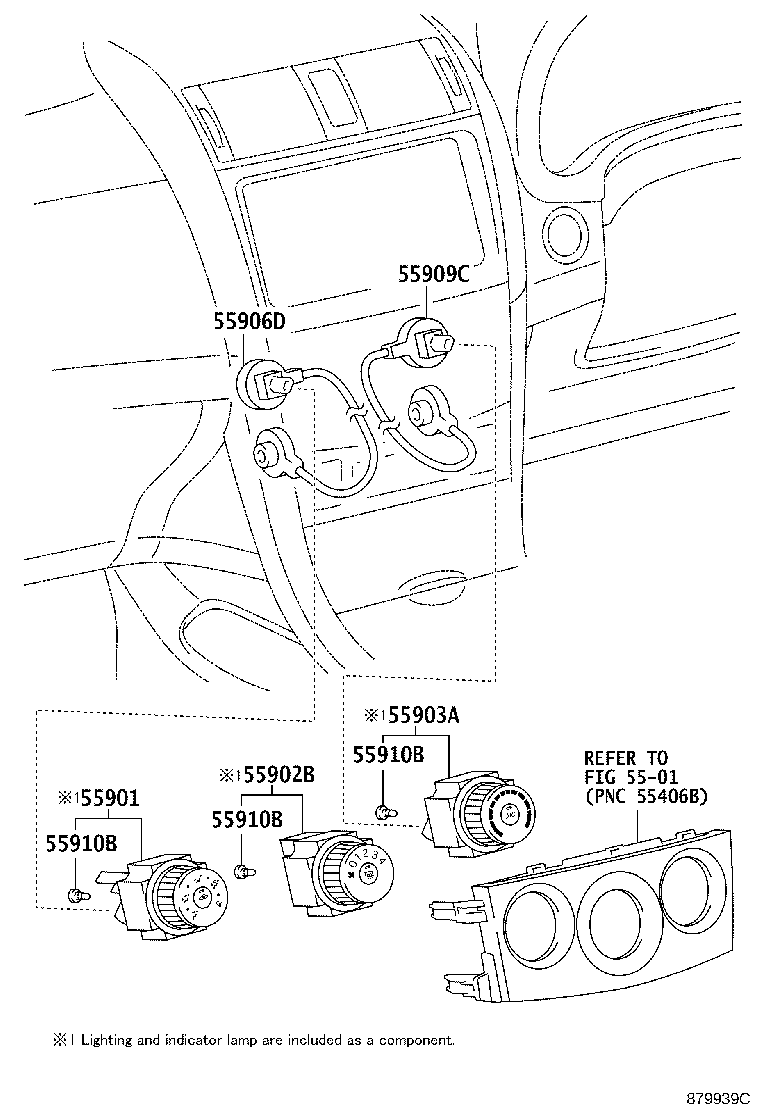

MANUAL HEATER CONTROL

diagram 5501 55901 55902B 55903A 55906D 55909C 55910B 55910B 55910B
Part # Description Qty Price
55901 - BASE SUB-ASSY, HEATER CONTROL
55901-02140

ZRE142..CVFC..VN;CE140,NZE140,ZRE141,142..(4FC,5F,6F)..(18G,18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN,VN)

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-02140

ZRE142..CVFC..VN;CE140,NZE140,ZRE141,142..(4FC,5F,6F)..(18G,18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN,VN)

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02180

CE140,NZE140

 1
55903-02230

ZRE142..CVFC..VN;CE140,NZE140,ZRE141,142..(4FC,5F,6F)..(18G,18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN,VN)

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

CE140,NZE140

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

CE140,NZE140

 1
55910B - BULB, HEATER CONTROL
90010-01122

CE140,NZE140

 3
90010-01122

ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(16E,16J,18J);ZRE142..LHD..(18G,18J,GLI,XLI);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH)

 3
55910B - BULB, HEATER CONTROL
90010-01122

CE140,NZE140

 3
90010-01122

ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(16E,16J,18J);ZRE142..LHD..(18G,18J,GLI,XLI);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH)

 3
55910B - BULB, HEATER CONTROL
90010-01122

CE140,NZE140

 3
90010-01122

ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(16E,16J,18J);ZRE142..LHD..(18G,18J,GLI,XLI);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH)

 3
Linked diagrams
5501

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900
Part # Description Qty Price

ILLUST NO. 3 OF 3(0712- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625H 88625Q 886880Z330 886880Z340 886880Z350 886880Z360 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NZE140

 1
88790-22131

ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,E,G,GLI,XLI)

 1
Common parts
88688-0Z330
88688-0Z340
88688-0Z350
88688-0Z360
