NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712-1008)CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F ; (1008-1010)VN ; (1008-110

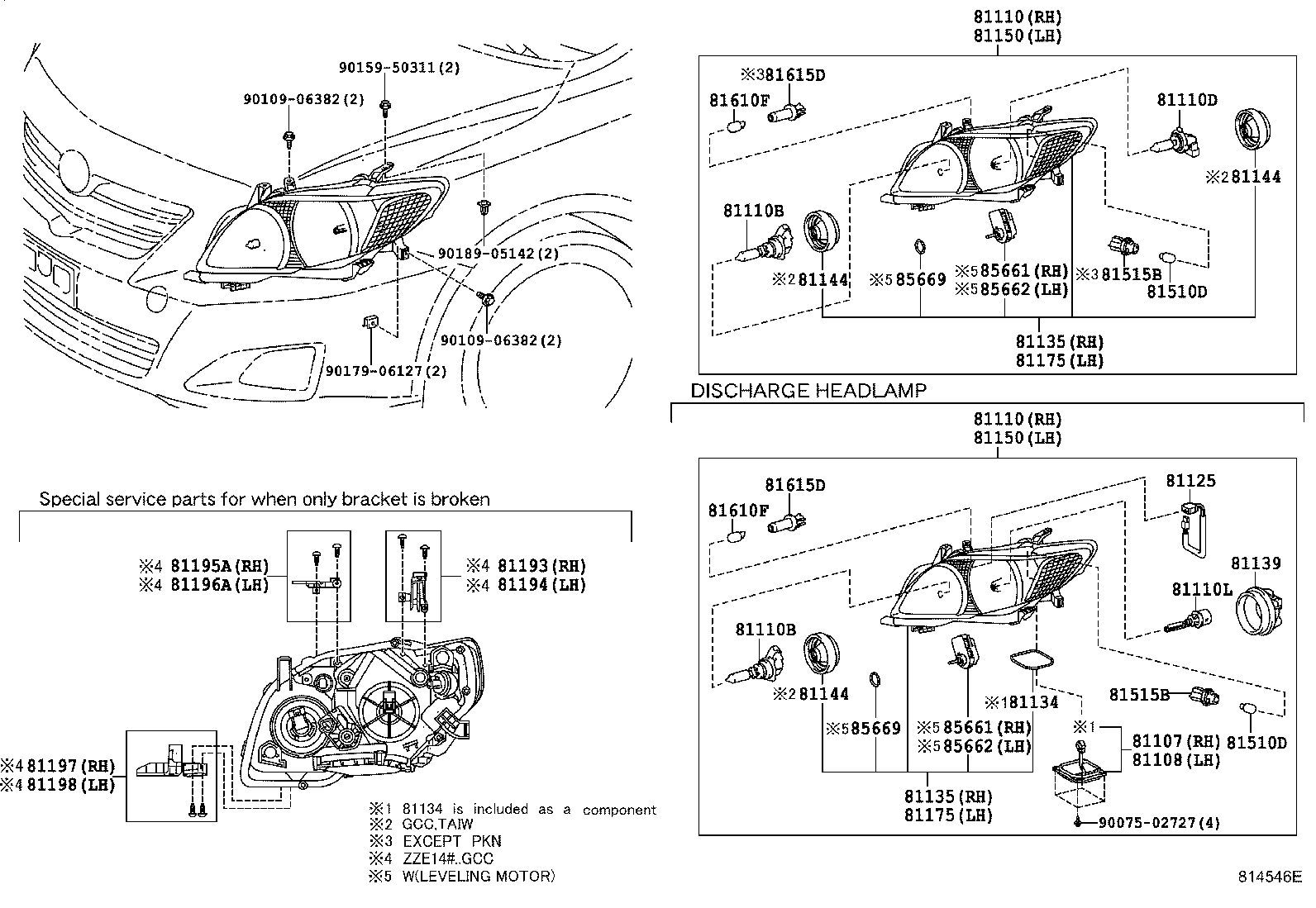

Click highlighted areas on diagram

diagram 81107 81108 81110 81110 81110B 81110B 81110D 81110L 81125 81134 81135 81135 81139 81144 81144 81144 81150 81150 81175 81175 81193 81194 81195A 81196A 81197 81198 81510D 81510D 81515B 81515B 81610F 81610F 81615D 81615D 85661 85661 85662 85662 85669 85669 9007502727 9010906382 9010906382 9015950311 9017906127 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-02880

CE140,NZE140

 1
81110 - HEADLAMP ASSY, RH
81110-02880

CE140,NZE140

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

CE140,NZE140

12V65W(SAE),60W(ECE)

 2
90981-13046

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V65W(SAE),60W(ECE)

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

CE140,NZE140

12V65W(SAE),60W(ECE)

 2
90981-13046

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

CE140,NZE140

12V 51W,HALOGEN

 2
90981-13047

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G)..TH;ZRE142..(18E,18G,18J,E,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,GLI,N,XLI

12V 51W,HALOGEN

 2
81150 - HEADLAMP ASSY, LH
81150-02880

CE140,NZE140

 1
81150 - HEADLAMP ASSY, LH
81150-02880

CE140,NZE140

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V 21W,AMBER

 2
90981-15021

CE140,NZE140

12V 21W,AMBER

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V 21W,AMBER

 2
90981-15021

CE140,NZE140

12V 21W,AMBER

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V 5W

 2
99132-12050

CE140,NZE140

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

12V 5W

 2
99132-12050

CE140,NZE140

12V 5W

 2
Common parts
90075-02727
90109-06382
90159-50311
90179-06127
90189-05142
