NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
Production
Aug 2008
-
Apr 2011
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0712- )

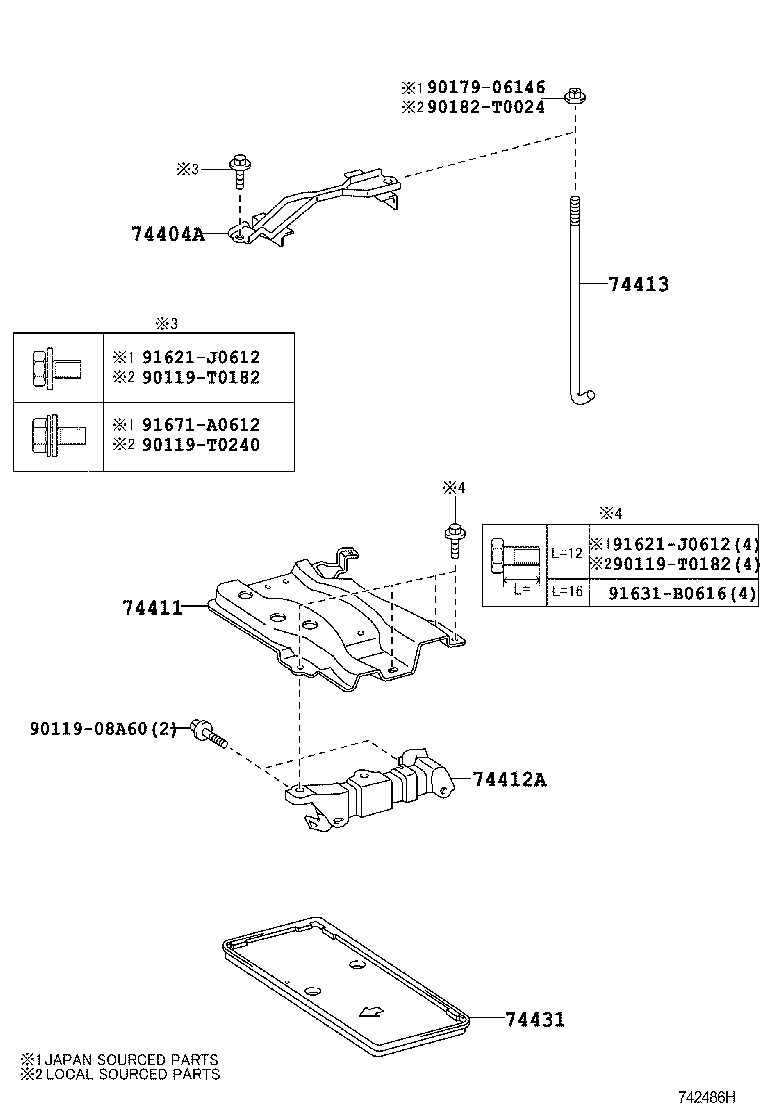

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404A - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-02290 |
NZE140 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74401-02050 |
CE140,NZE140 |
1 | ||
| 74401-02050 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 74412A - CARRIER, BATTERY, NO.2 | ||||
| 74410-02090 |
CE140,NZE140 |
1 | ||
| 74410-02090 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-02110 |
NZE140 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-02280 |
NZE140 |
1 | ||
| Common parts | ||||
| 90119-08A60 | ||||
| 90119-T0182 | ||||
| 90119-T0240 | ||||
| 90179-06146 | ||||
| 90182-T0024 | ||||
| 91621-J0612 | ||||
| 91631-B0616 | ||||
| 91671-A0612 | ||||
