NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

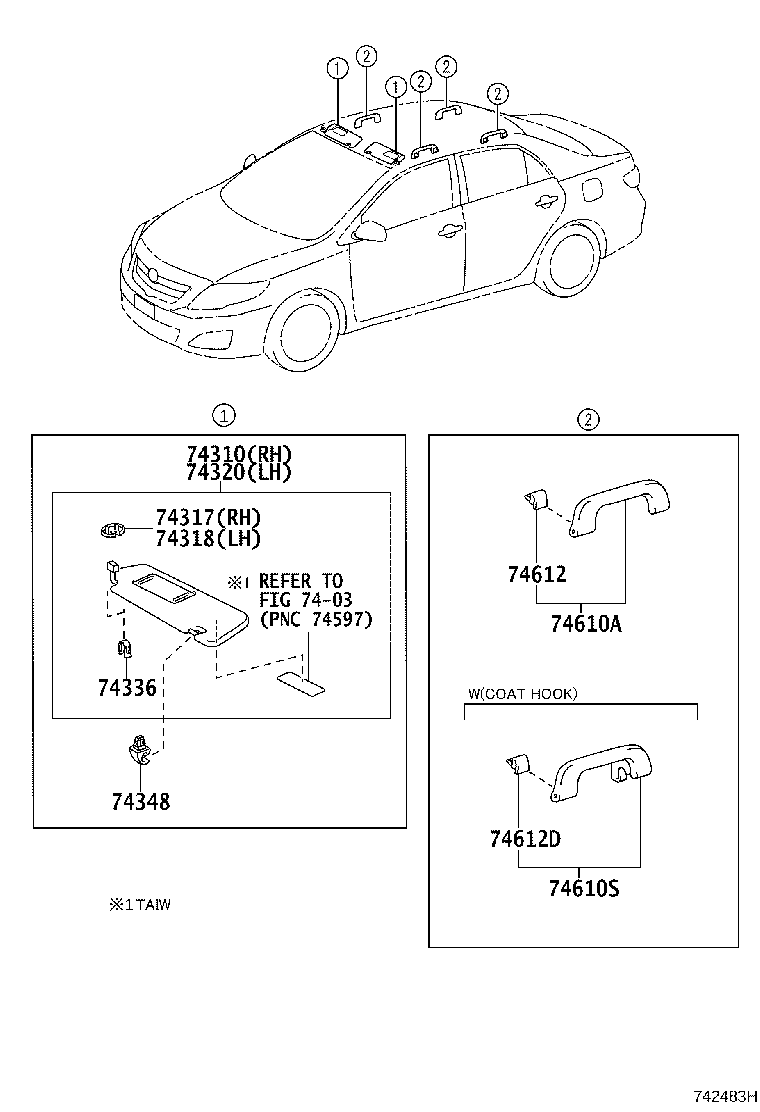

VISOR & ASSIST GRIP

diagram 7403 74310 74317 74318 74320 74336 74348 74610A 74610S 74612 74612D
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-02E20E1

CE140,NZE140..20D,GLI,XLI

GREGE,TRIM4#

 1
74317 - COVER, VISOR BRACKET, RH
74317-52010E0

CE140,NZE140

GREGE,TRIM4#

 1
74318 - COVER, VISOR BRACKET, LH
74318-52020E0

CE140,NZE140

GREGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-02800E1

CE140,NZE140

GREGE,TRIM4#

 1
74336 - CLIP, VISOR ARM SET
74336-52010

CE140,NZE140

 4
74336-52010

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(16V,18E)..(PHL,TH)..HTWC;ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 4
74348 - HOLDER, VISOR
74348-33040E0

CE140,NZE140

GREGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020E0

CE140,NZE140

GREGE,TRIM4#

 1
74610S - GRIP ASSY, ASSIST
74610-52030E0

CE140,NZE140

GREGE,TRIM4#

 2
74612 - COVER, ASSIST GRIP
74612-52030E0

CE140,NZE140

GREGE,TRIM4#

 2
74612D - COVER, ASSIST GRIP
74612-52030E0

CE140,NZE140

GREGE,TRIM4#

 4
Linked diagrams
7403
