NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

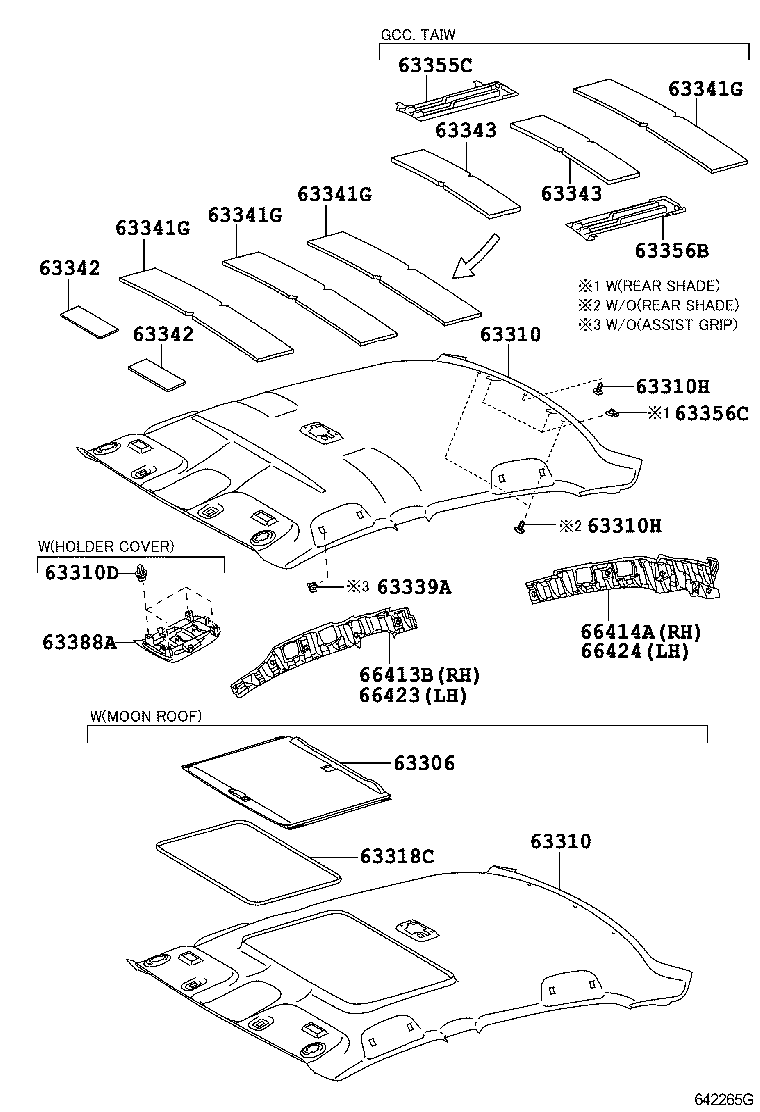

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310H 63310H 63318C 63339A 63341G 63341G 63341G 63341G 63342 63342 63343 63343 63355C 63356B 63356C 63388A 66413B 66414A 66423 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02B60E0

CE140,NZE140..20D,GLI,XLI

GREGE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-02B60E0

CE140,NZE140..20D,GLI,XLI

GREGE,TRIM4#

 1
63341G - PAD, ROOF SILENCER
63341-02210

CE140,NZE140

 3
63341G - PAD, ROOF SILENCER
63341-02210

CE140,NZE140

 3
63341G - PAD, ROOF SILENCER
63341-02210

CE140,NZE140

 3
63341G - PAD, ROOF SILENCER
63341-02210

CE140,NZE140

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-02250

CE140,NZE140

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-02250

CE140,NZE140

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-02090

ZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-02110

ZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-02090

ZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-02110

ZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN

 1
