NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0712- )GCC,IDN,MA,PHL,PKN,TAIW,TH,VN

Click highlighted areas on diagram

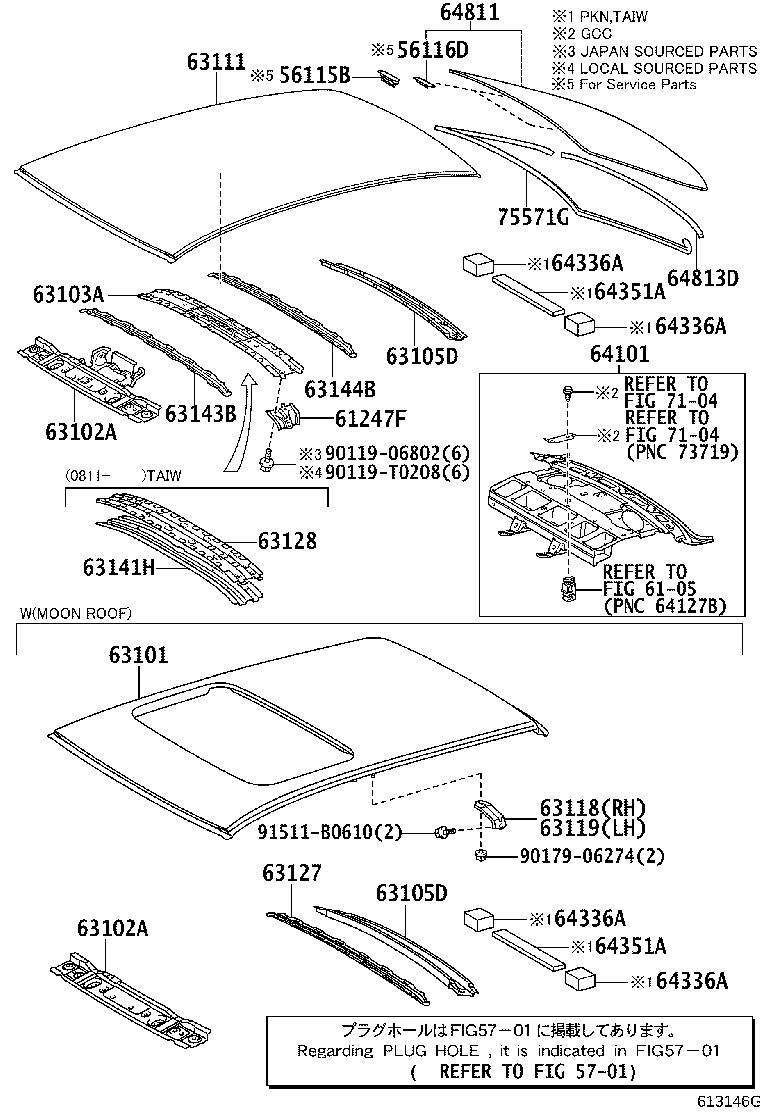

ROOF PANEL

diagram 56115B 56116D 5701 6105 61247F 63101 63102A 63102A 63103A 63105D 63105D 63111 63118 63119 63127 63128 63141H 63143B 63144B 64101 64336A 64336A 64336A 64336A 64351A 64351A 64811 64813D 7104 7104 75571G 9011906802 90119T0208 9017906274 91511B0610
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 2
56115-30120

CE140,NZE140

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-02020

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 2
56116-02020

CE140,NZE140

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-02080

ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)

 2
61247-02080

CE140,NZE140

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-02190

CE140,NZE140

 1
63102-02190

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE14#..(16E,16G,16V,18E,18J,20D,20DSA,D,G,GLI,N,XLI)..(IDN,MA,PHL,PKN,TAIW,TH)..(DSL,HTWC)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-02190

CE140,NZE140

 1
63102-02190

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE14#..(16E,16G,16V,18E,18J,20D,20DSA,D,G,GLI,N,XLI)..(IDN,MA,PHL,PKN,TAIW,TH)..(DSL,HTWC)

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63141-02110

CE140,NZE140

 1
63141-02110

ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-02120

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
63105-02120

CE140,NZE140

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-02120

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
63105-02120

CE140,NZE140

 1
63111 - PANEL, ROOF
63111-02330

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,143..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI

 1
63111-02330

CE140,NZE140

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-02080

CE140,NZE140

 1
63143-02080

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,143..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-02100

CE140,NZE140

 1
63144-02100

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,143..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-02190

CE140,NZE140..20DSA,GLI

 1
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02030

CE140,NZE140

 2
64336-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 2
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02030

CE140,NZE140

 2
64336-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 2
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02030

CE140,NZE140

 2
64336-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 2
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02030

CE140,NZE140

 2
64336-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 2
64351A - PAD, PACKAGE TRAY TRIM, NO.1
64351-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 1
64351-02030

CE140,NZE140

 1
64351A - PAD, PACKAGE TRAY TRIM, NO.1
64351-02030

CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW

 1
64351-02030

CE140,NZE140

 1
64811 - GLASS, BACK WINDOW
64801-02907

CE140,NZE140

*EHT,T=3.1,GREEN

 1
64801-02907

ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)

*EHT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-12180

CE140,NZE140

 1
64813-12180

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
75571-02210

CE140,NZE140

 1
75571-02210

ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC)

 1
Common parts
90119-06802
90119-T0208
90179-06274
91511-B0610
Linked diagrams
5701
6105
7104

ILLUST NO. 2 OF 2(0712- )16J,18E,18G,18J,18V,20D,20DSA,20E,20G,20V,ALT,G,GLI,N,XLI..GCC,PKN,TAIW

Click highlighted areas on diagram

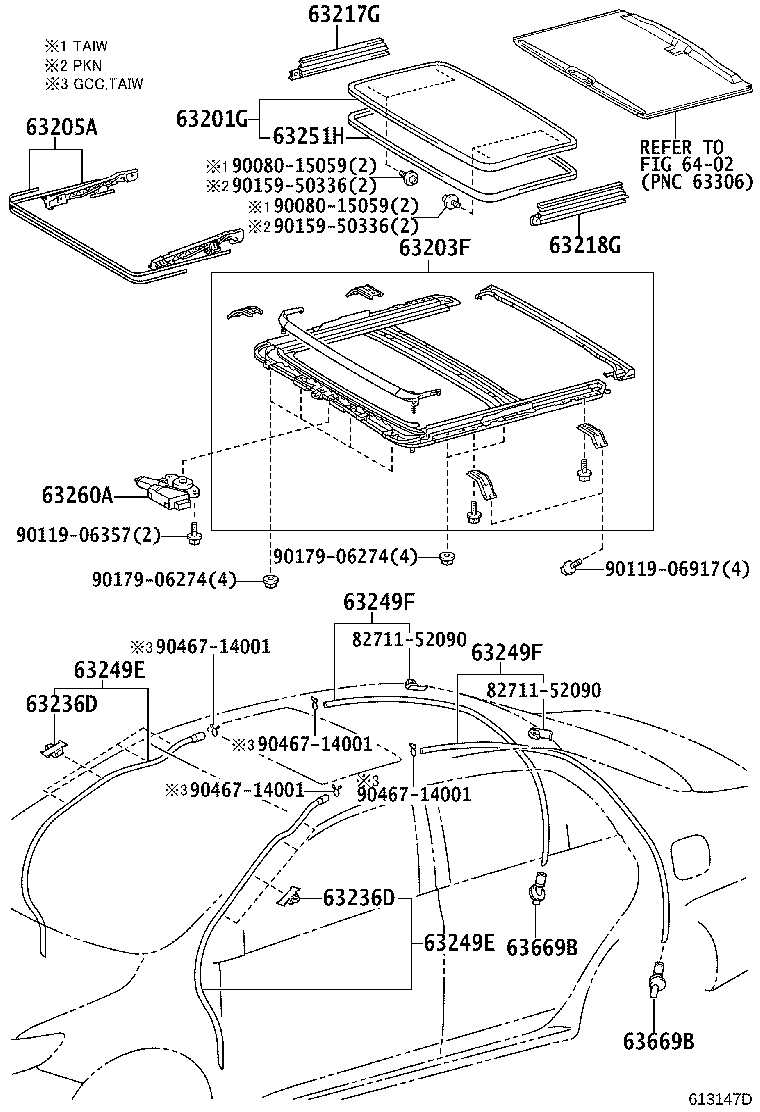

MOON ROOF

diagram 63201G 63203F 63205A 63217G 63218G 63236D 63236D 63249E 63249E 63249F 63249F 63251H 63260A 63669B 63669B 6402 8271152090 8271152090 9008015059 9008015059 9011906357 9011906917 9015950336 9015950336 9017906274 9017906274 9046714001 9046714001 9046714001 9046714001
Part # Description Qty Price
Common parts
82711-52090
90080-15059
90119-06357
90119-06917
90159-50336
90179-06274
90467-14001
Linked diagrams
6402
