NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
ILLUST NO. 1 OF 3(0712- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-02100 |
CE140,NZE140 |
1 | ||
| 55713-02100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-02230 |
CE140,NZE140 |
1 | ||
| 61023-02230 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02911 |
CE140,NZE140 |
1 | ||
| 61037-02911 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH | ||||
| 61061-02050 |
CE140,NZE140 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02150 |
CE140,NZE140 |
1 | ||
| 61108-02150 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-02140 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZZE141..(16G,LIMO)..TH;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 61103-02140 |
CE140,NZE140 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-02260 |
CE140,NZE140 |
1 | ||
| 61131-02260 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-02140 |
CE140,NDE140,NZE140,ZZE142..IND,PKN |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-02110 |
CE140,NZE140 |
1 | ||
| 61203-02110 |
ZRE143..CVFC..VN;CE140,NDE140,NZE140,ZRE141,142..IND,PKN,VN |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-02180 |
CE140,NZE140 |
1 | ||
| 61211-02180 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-02070 |
CE140,NZE140 |
1 | ||
| 61305-02070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-02230 |
CE140,NZE140 |
1 | ||
| 61311-02230 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02120 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 61403-02120 |
CE140,NZE140 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02180 |
CE140,NZE140..20DSA,GLI |
1 | ||
| 61607-02180 |
ZRE141..16E..PHL;ZRE142..(18E,18EL)..HTWCF;ZRE142,ZZE141..(16G,18J,XLI)..(GCC,IND,TAIW,TH);CE140,NZE140,ZRE141..RHD..(16E,16G,20DSA,D,GLI,N) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02320 |
CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN |
1 | ||
| 61601-02320 |
CE140,NZE140 |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-02060 |
CE140,NZE140 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02140 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61631-02140 |
CE140,NZE140 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
CE140,NZE140 |
1 | ||
| 61645-12150 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-02911 |
CE140,NZE140 |
1 | ||
| 61697-02911 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH | ||||
| 61701-02040 |
CE140,NZE140 |
1 | ||
| 61701-02040 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-02070 |
CE140,NZE140 |
1 | ||
| 61711-02070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-02210 |
CE140,NZE140 |
1 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02110 |
CE140,NZE140 |
1 | ||
| 64304-02110 |
ZRE141..6F..(16E,16J);ZRE142..(18E,18EL)..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO,XLI)..(GCC,IND,TAIW,TH);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH) |
1 | ||
| Common parts | ||||
| 88266-12C00 | ||||
| 90105-T0208 | ||||
| 90179-06308 | ||||
| 90541-11010 | ||||
| 91515-80818 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||

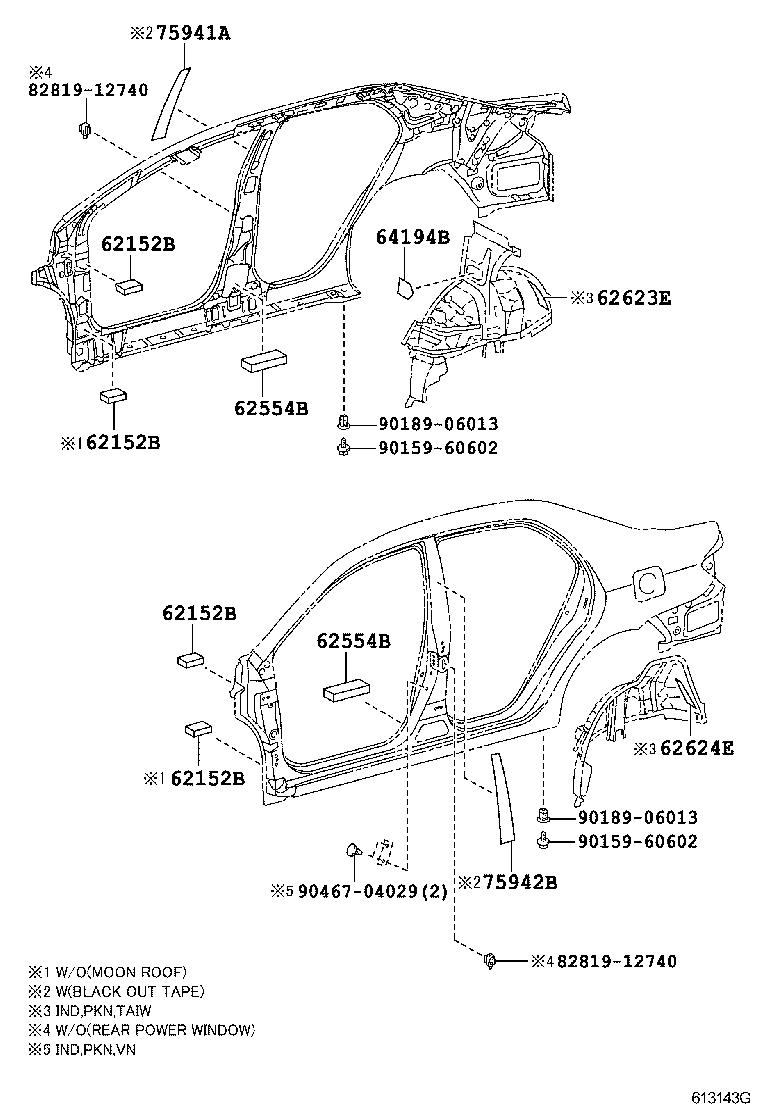

ILLUST NO. 3 OF 3(0712- )
PAD,TAPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
CE140,NZE140 |
4 | ||
| 62152-02050 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH) |
4 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
CE140,NZE140 |
4 | ||
| 62152-02050 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH) |
4 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
CE140,NZE140 |
4 | ||
| 62152-02050 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH) |
4 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
CE140,NZE140 |
4 | ||
| 62152-02050 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH) |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-02210 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 62554-12180 |
CE140,NZE140 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-02210 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 62554-12180 |
CE140,NZE140 |
2 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-02040 |
CE140,NZE140 |
1 | ||
| 62623-02040 |
CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62623-02040 |
CE140,NZE140 |
1 | ||
| 62623-02040 |
CE140,NDE140,NZE140,ZRE14#..IND,PKN,TAIW |
1 | ||
| 64194B - PAD, BACK PANEL SILENCER, UPPER | ||||
| 64194-02010 |
CE140,NZE140 |
1 | ||
| 64194-02010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| Common parts | ||||
| 82819-12740 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90467-04029 | ||||
ILLUST NO. 2 OF 3(0712- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-02100 |
CE140,NZE140 |
1 | ||
| 55714-02100 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-02220 |
CE140,NZE140 |
1 | ||
| 61024-02220 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02911 |
CE140,NZE140 |
1 | ||
| 61038-02911 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH | ||||
| 61062-02050 |
CE140,NZE140 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02150 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61109-02150 |
CE140,NZE140 |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-02130 |
CE140,NZE140 |
1 | ||
| 61104-02130 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-02290 |
CE140,NZE140 |
1 | ||
| 61132-02290 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-02140 |
CE140,NDE140,NZE140,ZZE142..IND,PKN |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-02110 |
CE140,NZE140 |
1 | ||
| 61204-02110 |
ZRE143..CVFC..VN;CE140,NDE140,NZE140,ZRE141,142..IND,PKN,VN |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-02180 |
CE140,NZE140 |
1 | ||
| 61212-02180 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-02070 |
CE140,NZE140 |
1 | ||
| 61306-02070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-02230 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61312-02230 |
CE140,NZE140 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02120 |
CE140,NZE140 |
1 | ||
| 61404-02120 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02390 |
CE140,NZE140..20DSA,GLI |
1 | ||
| 61608-02390 |
ZRE141..16E..PHL;ZRE142..(18E,18EL)..HTWCF;ZRE142..(18J,XLI)..(GCC,IND,TAIW);CE140,NZE140,ZRE141..RHD..(16E,16G,20DSA,D,GLI,N) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02330 |
CE140,NZE140 |
1 | ||
| 61602-02330 |
CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-02070 |
CE140,NZE140 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02140 |
CE140,NZE140 |
1 | ||
| 61632-02140 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61646-12140 |
CE140,NZE140 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-02911 |
CE140,NZE140 |
1 | ||
| 61698-02911 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH | ||||
| 61702-02040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61702-02040 |
CE140,NZE140 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-02070 |
CE140,NZE140 |
1 | ||
| 61712-02070 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-02210 |
CE140,NZE140 |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-02110 |
CE140,NZE140 |
1 | ||
| 64305-02110 |
ZRE141..6F..(16E,16J);ZRE142..(18E,18EL)..HTWCF;ZRE142..(18J,XLI)..(GCC,IND,TAIW);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH) |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-02040 |
CE140,NZE140 |
1 | ||
| Common parts | ||||
| 88266-12C10 | ||||
| 90105-T0208 | ||||
| 90179-06308 | ||||
| 90541-11010 | ||||
| 91515-80818 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
