NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )IND,PKN,VN

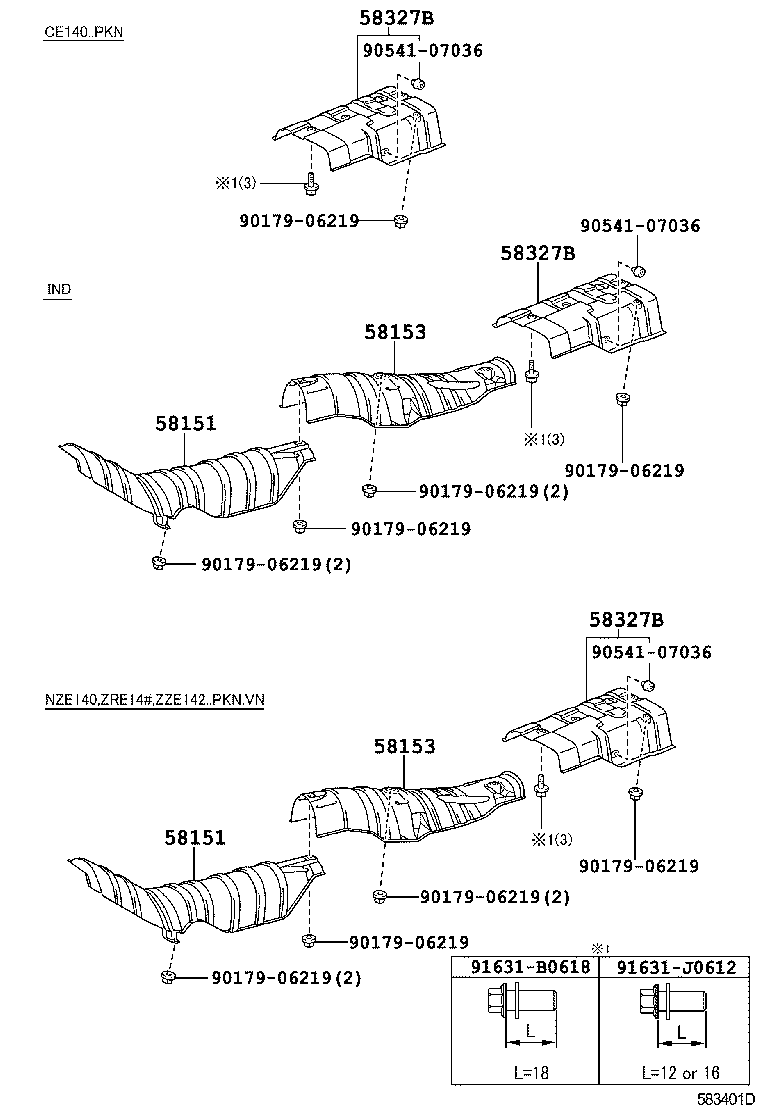

Click highlighted areas on diagram

diagram 58151 58151 58153 58153 58327B 58327B 58327B 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 9054107036 9054107036 9054107036 91631B0618 91631J0612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02230

NZE140

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-02230

NZE140

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02180

ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..HTWC

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-02180

ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..HTWC

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02060

ZRE142..HTWCF;ZRE142..18G..(IDN,MA);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..HTWC

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02060

ZRE142..HTWCF;ZRE142..18G..(IDN,MA);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..HTWC

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-02060

ZRE142..HTWCF;ZRE142..18G..(IDN,MA);CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..HTWC

 1
Common parts
90179-06219
90541-07036
91631-B0618
91631-J0612
