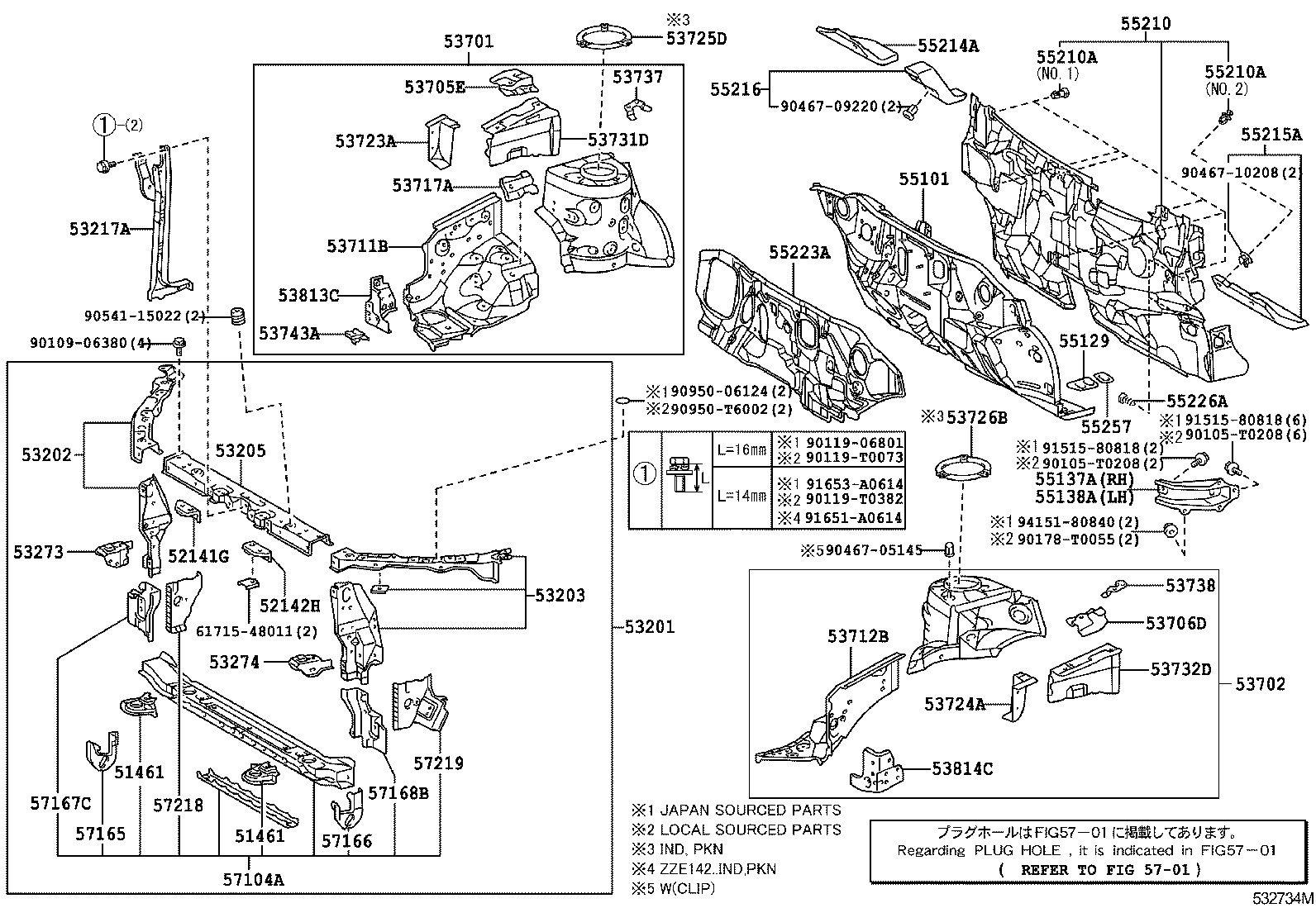

NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
(0712- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51461 - BRACKET, RADIATOR STAY | ||||
| 51461-02030 |
CE140,NZE140 RH |
1 | ||
| 51462-02030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) LH |
1 | ||
| 51462-02030 |
CE140,NZE140 LH |
1 | ||
| 51461-02030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) RH |
1 | ||
| 51461 - BRACKET, RADIATOR STAY | ||||
| 51461-02030 |
CE140,NZE140 RH |
1 | ||
| 51462-02030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) LH |
1 | ||
| 51462-02030 |
CE140,NZE140 LH |
1 | ||
| 51461-02030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) RH |
1 | ||
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-02120 |
CE140,NZE140 |
1 | ||
| 52141-02120 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-02110 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 52142-02110 |
CE140,NZE140 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-02270 |
CE140,NZE140 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02120 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53202-02120 |
CE140,NZE140 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02130 |
CE140,NZE140 |
1 | ||
| 53203-02130 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02170 |
CE140,NZE140 |
1 | ||
| 53205-02170 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-02120 |
CE140,NZE140 |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-02160 |
CE140,NZE140 |
1 | ||
| 53273-02160 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-02140 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53274-02140 |
CE140,NZE140 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02260 |
CE140,NZE140..20DSA,GLI |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02190 |
CE140,NZE140 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-02040 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53705-02040 |
CE140,NZE140 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-02040 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53706-02040 |
CE140,NZE140 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-02100 |
CE140,NZE140 |
1 | ||
| 53711-02100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-02110 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53712-02110 |
CE140,NZE140 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-12060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53717-12060 |
CE140,NZE140 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-02090 |
CE140,NZE140 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-02060 |
CE140,NZE140 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53723-12091 |
CE140,NDE140,NZE140,ZZE142..IND,PKN |
1 | ||
| 53723-12110 |
CE140,NZE140 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53723-12110 |
CE140,NZE140 |
1 | ||
| 53723-12091 |
CE140,NDE140,NZE140,ZZE142..IND,PKN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02080 |
CE140,NZE140 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02090 |
CE140,NZE140 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02090 |
CE140,NZE140 |
1 | ||
| 53737-02090 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02070 |
CE140,NZE140 |
1 | ||
| 53738-02070 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-12050 |
CE140,NZE140..20DSA,GLI |
1 | ||
| 53743-12050 |
ZRE143..CVFC;ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20DSA,D,E,G,GLI,N |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53803-02030 |
CE140,NZE140 |
1 | ||
| 53803-02030 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02080 |
CE140,NZE140 |
1 | ||
| 53814-02080 |
ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-02A40 |
NZE140 |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-02050 |
CE140,NZE140 RH |
1 | ||
| 55139-02040 |
CE140,NZE140 LH |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 55137-02070 |
CE140,NZE140 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 55138-02060 |
CE140,NZE140 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02330 |
CE140,NZE140 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
CE140,NZE140 NO.1 |
6 | ||
| 90467-11127 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) NO.2 |
2 | ||
| 90467-11127 |
CE140,NZE140 NO.2 |
2 | ||
| 90467-11122 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) NO.1 |
6 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
CE140,NZE140 NO.1 |
6 | ||
| 90467-11127 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) NO.2 |
2 | ||
| 90467-11127 |
CE140,NZE140 NO.2 |
2 | ||
| 90467-11122 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) NO.1 |
6 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02220 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,N,XLI) |
1 | ||
| 55226A - CLIP | ||||
| 90467-08186C0 |
CE140,NZE140 BLACK |
4 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
CE140,NZE140 |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-02170 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| 57104-02170 |
CE140,NZE140 |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 57165-12070 |
CE140,NZE140 |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
CE140,NZE140 |
1 | ||
| 57166-12020 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-02100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 57167-02100 |
CE140,NZE140 |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-02100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 57168-02100 |
CE140,NZE140 |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-12010 |
CE140,NZE140 |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12010 |
CE140,NZE140 |
1 | ||
| 57219-12010 |
ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) |
1 | ||
| Common parts | ||||
| 61715-48011 | ||||
| 90105-T0208 | ||||
| 90109-06380 | ||||
| 90119-06801 | ||||
| 90119-T0073 | ||||
| 90119-T0382 | ||||
| 90178-T0055 | ||||
| 90467-05145 | ||||
| 90467-09220 | ||||
| 90467-10208 | ||||
| 90541-15022 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
| 91515-80818 | ||||
| 91651-A0614 | ||||
| 91653-A0614 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 5701 | ||||
