NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
(0712- )

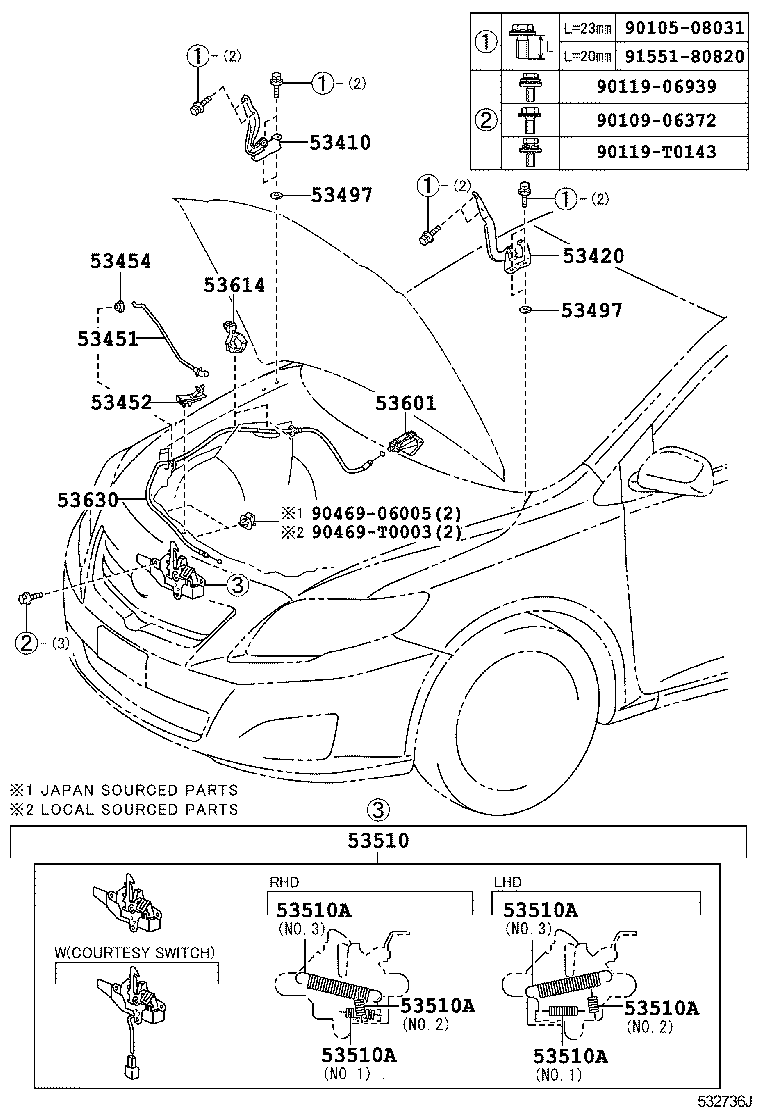

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-02060 |
CE140,NZE140 |
1 | ||
| 53410-02060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-02060 |
CE140,NZE140 |
1 | ||
| 53420-02060 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-02120 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53440-02120 |
CE140,NZE140 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-02100 |
CE140,NZE140 |
1 | ||
| 53452-02100 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-12040 |
CE140,NZE140 |
1 | ||
| 53454-12040 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CE140,NZE140 T=0.5 |
4 | ||
| 53497-20070 |
CE140,NZE140 T=2.0 |
4 | ||
| 53497-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) T=0.5 |
4 | ||
| 53497-20070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) T=2.0 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CE140,NZE140 T=0.5 |
4 | ||
| 53497-20070 |
CE140,NZE140 T=2.0 |
4 | ||
| 53497-42010 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) T=0.5 |
4 | ||
| 53497-20070 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) T=2.0 |
2 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=0.9,CW=21,NO.1:REFER ILLUST. |
1 | ||
| 90506-T0003 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.8,CW=13,NO.3:REFER ILLUST. |
1 | ||
| 90506-T0004 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) WD=1.2,CW=8.5,NO.2:REFER ILLUST. |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-12040 |
CE140,NZE140 |
2 | ||
| 53614-12040 |
ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) |
2 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02210 |
ZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH)..(DSL,HTWC) |
1 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90109-06372 | ||||
| 90119-06939 | ||||
| 90119-T0143 | ||||
| 90469-06005 | ||||
| 90469-T0003 | ||||
| 91551-80820 | ||||
