NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
(0712- )16V,20D,20DSA,20E,20G,20V,G,GLI,XLI..IDN,MA,PHL,PKN,TAIW,TH,VN

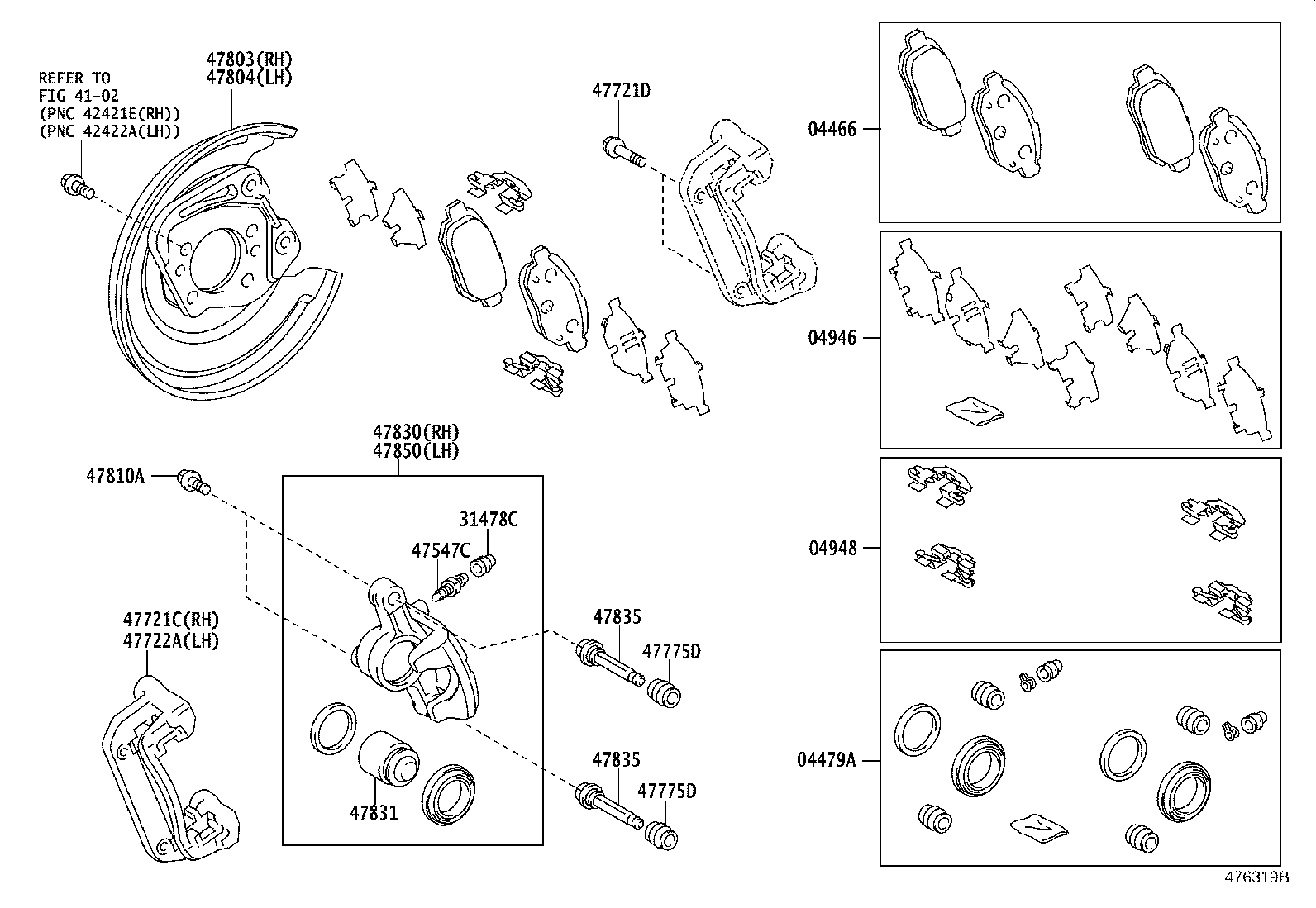

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12130 |
CE140,NZE140 MARK AK NS254 |
1 | ||
| 04466-12130 |
CE140,NZE140 MARK AK NS254 |
1 | ||
| 04466-12130 |
CE140,NZE140 MARK AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-12260 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 04479-12260 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 04479-12260 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12090 |
ZZE141..4FC..(16E,16V);ZZE141..(16G,16J,LIMO)..TH;CE140,NZE140,ZRE143,ZZE142..(18E,18G,20D,20DSA,20G,20V,ALT,GLI,XLI)..(IDN,MA,PHL,PKN,TH,VN) |
1 | ||
| 04946-12090 |
ZZE141..4FC..(16E,16V);ZZE141..(16G,16J,LIMO)..TH;CE140,NZE140,ZRE143,ZZE142..(18E,18G,20D,20DSA,20G,20V,ALT,GLI,XLI)..(IDN,MA,PHL,PKN,TH,VN) |
1 | ||
| 04946-12090 |
ZZE141..4FC..(16E,16V);ZZE141..(16G,16J,LIMO)..TH;CE140,NZE140,ZRE143,ZZE142..(18E,18G,20D,20DSA,20G,20V,ALT,GLI,XLI)..(IDN,MA,PHL,PKN,TH,VN) |
1 | ||
| 04946-12100 |
CE140,NZE140 |
1 | ||
| 04946-12100 |
CE140,NZE140 |
1 | ||
| 04946-12100 |
CE140,NZE140 |
1 | ||
| 04946-12100 |
ZRE142..HTWCF;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142,ZZE141..(16E,16G,18E,18J,D,GLI,LIMO,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC |
1 | ||
| 04946-12100 |
ZRE142..HTWCF;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142,ZZE141..(16E,16G,18E,18J,D,GLI,LIMO,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC |
1 | ||
| 04946-12100 |
ZRE142..HTWCF;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142,ZZE141..(16E,16G,18E,18J,D,GLI,LIMO,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-52040 |
CE140,NZE140 |
1 | ||
| 04948-52040 |
CE140,NZE140 |
1 | ||
| 04948-52040 |
CE140,NZE140 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
CE140,NZE140 |
2 | ||
| 31478-52010 |
CE140,NZE140 |
2 | ||
| 31478-52010 |
CE140,NZE140 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
CE140,NZE140 |
2 | ||
| 47847-52050 |
CE140,NZE140 |
2 | ||
| 47847-52050 |
CE140,NZE140 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-10510 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) *10-1.25PX35-30 |
4 | ||
| 90105-10510 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) *10-1.25PX35-30 |
4 | ||
| 90105-10510 |
ZRE142..HTWCF;ZRE142,ZZE141..(16G,18J,LIMO)..(TAIW,TH);ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);ZRE141,142..(16V,18E,18J)..(IND,PHL,TH)..HTWC;ZRE142..(18E,18G,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) *10-1.25PX35-30 |
4 | ||
| 90105-10510 |
CE140,NZE140 *10-1.25PX35-30 |
4 | ||
| 90105-10510 |
CE140,NZE140 *10-1.25PX35-30 |
4 | ||
| 90105-10510 |
CE140,NZE140 *10-1.25PX35-30 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
CE140,NZE140 |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47821-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
1 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
CE140,NZE140 |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47875-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-02060 |
CE140,NZE140 |
1 | ||
| 47803-02060 |
CE140,NZE140 |
1 | ||
| 47803-02060 |
CE140,NZE140 |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-02060 |
CE140,NZE140 |
1 | ||
| 47804-02060 |
CE140,NZE140 |
1 | ||
| 47804-02060 |
CE140,NZE140 |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 90015-AA102 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 90015-AA102 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 90015-AA102 |
CE140,NZE140 |
4 | ||
| 90015-AA102 |
CE140,NZE140 |
4 | ||
| 90015-AA102 |
CE140,NZE140 |
4 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12260 |
CE140,NZE140 |
1 | ||
| 47830-12260 |
CE140,NZE140 |
1 | ||
| 47830-12260 |
CE140,NZE140 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-52050 |
CE140,NZE140 |
2 | ||
| 47831-52050 |
CE140,NZE140 |
2 | ||
| 47831-52050 |
CE140,NZE140 |
2 | ||
| 47831-52050 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
2 | ||
| 47831-52050 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
2 | ||
| 47831-52050 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
CE140,NZE140 |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47835-12150 |
ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(16V,18G)..(IDN,MA,PHL,VN);ZRE141,142..(16E,16G,18E,18J,D,GLI,N,XLI)..(GCC,MA,PKN,TAIW,TH)..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12260 |
CE140,NZE140 |
1 | ||
| 47850-12260 |
CE140,NZE140 |
1 | ||
| 47850-12260 |
CE140,NZE140 |
1 | ||
| Linked diagrams | ||||
| 4102 | ||||
