NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )NZE140

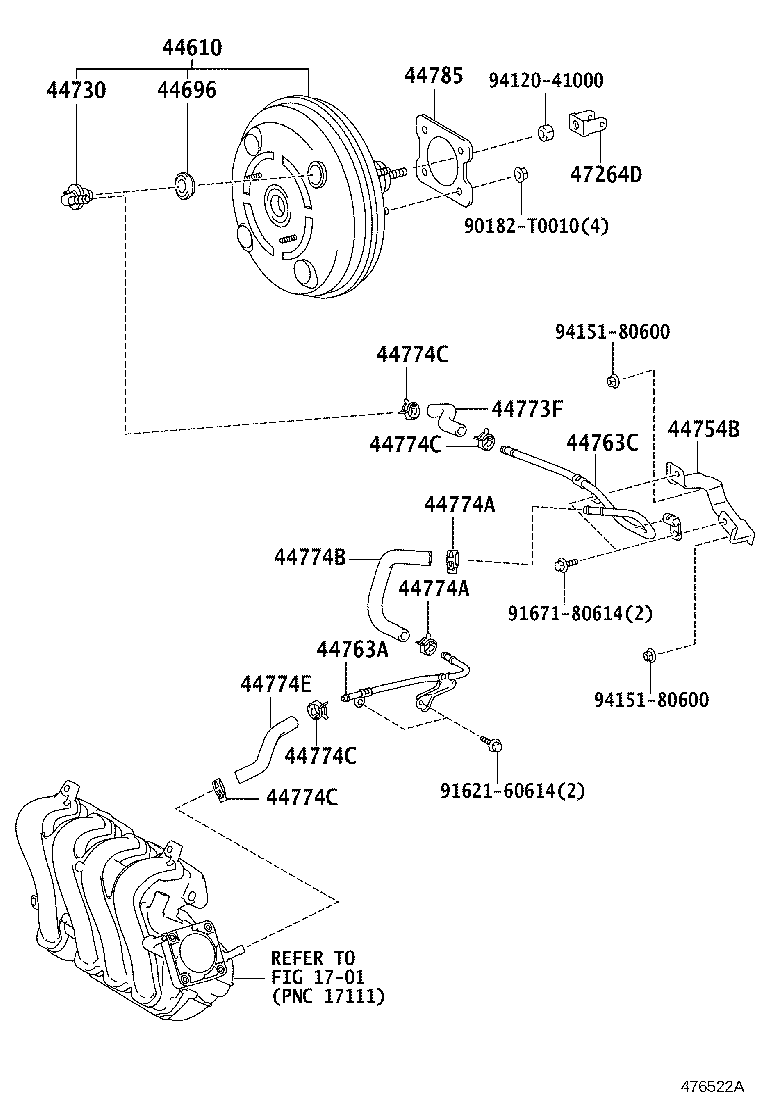

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44754B 44763A 44763C 44773F 44774A 44774A 44774B 44774C 44774C 44774C 44774C 44774E 44785 47264D 90182T0010 9162160614 9167180614 9412041000 9415180600 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-12A31

NZE140..GLI

 1
44696 - GROMMET, CHECK VALVE
90480-24439

CE140,NZE140

 1
90480-24439

CE140,NZE140,ZRE14#..GCC,PKN,TAIW

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

CE140,NZE140

 1
44730-12070

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,18J,D,GLI,N,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC

 1
44754B - BRACKET, VACUUM TUBE
44754-12040

NZE140

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-52080

NZE140

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12460

NZE140

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12820

NZE140

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

CE140,NZE140

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

CE140,NZE140

 2
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-12710

NZE140

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE140

 4
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE140

 4
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE140

 4
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NZE140

 4
44774E - HOSE, UNION TO CONNECTOR TUBE
95446-09130

NZE140

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

CE140,NZE140

 1
44785-12040

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

CE140,NZE140

 1
Common parts
90182-T0010
91621-60614
91671-80614
94120-41000
94151-80600
Linked diagrams
1701
