NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011

Engine 2NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0808- )2NZFE

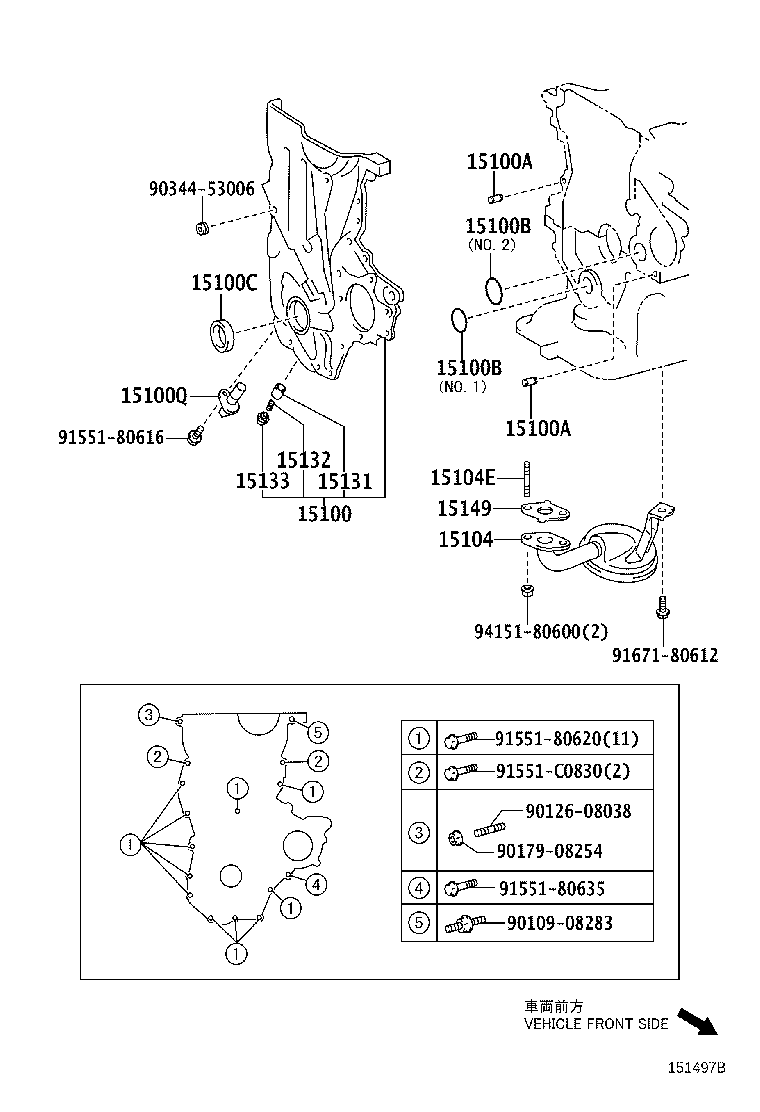

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15100 - PUMP ASSY, OIL
15100-21030	2NZFE..NZE140	08/2008 - 04/2011	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	2NZFE..NZE140	08/2008 - 04/2011	2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	2NZFE..NZE140	08/2008 - 04/2011	2
15100B - RING, O(FOR OIL PUMP)
90301-42006	2NZFE..NZE140 NO.2	08/2008 - 04/2011	1
90301-31012	2NZFE..NZE140 NO.1	08/2008 - 04/2011	1
15100B - RING, O(FOR OIL PUMP)
90301-42006	2NZFE..NZE140 NO.2	08/2008 - 04/2011	1
90301-31012	2NZFE..NZE140 NO.1	08/2008 - 04/2011	1
15100C - SEAL(FOR OIL PUMP)
90311-25021	2NZFE..NZE140	08/2008 - 04/2011	1
15100Q - SENSOR, CRANK POSITION
90919-05045	2NZFE..NZE140	08/2008 - 04/2011	1
15104 - STRAINER SUB-ASSY, OIL
15104-21022	2NZFE..NZE140	08/2008 - 04/2011	1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021	2NZFE..NZE140	08/2008 - 04/2011	2
15131 - VALVE, OIL PUMP RELIEF
15131-21020	2NZFE..NZE140	08/2008 - 04/2011	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21020	2NZFE..NZE140	08/2008 - 04/2011	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21030	2NZFE..NZE140	08/2008 - 04/2011	1
15149 - GASKET, OIL STRAINER FLANGE
16258-21030	2NZFE..NZE140	08/2008 - 04/2011	1
Common parts
90109-08283
90126-08038
90179-08254
90344-53006
91551-80616
91551-80620
91551-80635
91551-C0830
91671-80612
94151-80600
