NZE140R-GEMNKP (2008)

Toyota Corolla/Altis

Production Aug 2008 - Apr 2011
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )2NZFE

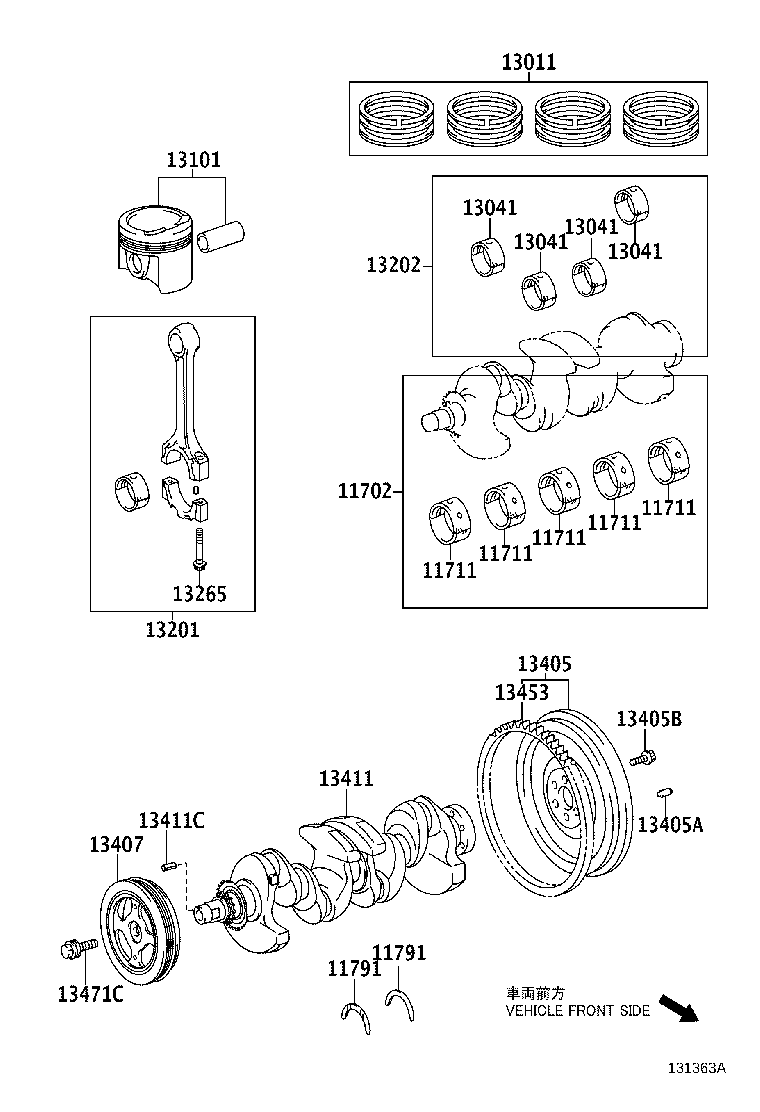

Click highlighted areas on diagram

diagram 11702 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13201 13202 13265 13405 13405A 13405B 13407 13411 13411C 13453 13471C
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11704-21031

2NZFE..NZE140

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-2103102

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 5
11701-2103101

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 5
11701-2103103

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 5
11701-2103104

2NZFE..NZE140

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-2103102

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 5
11701-2103101

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 5
11701-2103103

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 5
11701-2103104

2NZFE..NZE140

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-2103102

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 5
11701-2103101

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 5
11701-2103103

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 5
11701-2103104

2NZFE..NZE140

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-2103102

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 5
11701-2103101

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 5
11701-2103103

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 5
11701-2103104

2NZFE..NZE140

MARK4,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-2103102

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 5
11701-2103101

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 5
11701-2103103

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 5
11701-2103104

2NZFE..NZE140

MARK4,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11792-22020

2NZFE..NZE140

O/S 0.125

 2
11791-22020

2NZFE..NZE140

STD

 2
11793-22020

2NZFE..NZE140

O/S 0.25

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11792-22020

2NZFE..NZE140

O/S 0.125

 2
11791-22020

2NZFE..NZE140

STD

 2
11793-22020

2NZFE..NZE140

O/S 0.25

 2
13011 - RING SET, PISTON
13011-21050

2NZFE..NZE140

STD

 1
13041 - BEARING, CONNECTING ROD
13041-2102201

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 4
13041-2102203

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 4
13041-2102202

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-2102201

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 4
13041-2102203

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 4
13041-2102202

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-2102201

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 4
13041-2102203

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 4
13041-2102202

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-2102201

2NZFE..NZE140

MARK1,REFER REPAIR MANUAL

 4
13041-2102203

2NZFE..NZE140

MARK3,REFER REPAIR MANUAL

 4
13041-2102202

2NZFE..NZE140

MARK2,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-21080

2NZFE..NZE140

STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-29715

2NZFE..NZE140

 4
13202 - BEARING SET, CONNECTING ROD
13204-21022

2NZFE..NZE140

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-21020

2NZFE..NZE140

 8
13405 - FLYWHEEL SUB-ASSY
13405-21020

2NZFE..NZE140

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

2NZFE..NZE140

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01024

2NZFE..NZE140

 6
13407 - DAMPER SUB-ASSY, CRANKSHAFT
13407-21031

2NZFE..NZE140

 1
13411 - CRANKSHAFT
13401-21030

2NZFE..NZE140

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90254-03025

2NZFE..NZE140

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

2NZFE..NZE140

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-12345

2NZFE..NZE140

 1
