NZE140R-GEMNKP (2008)
Toyota Corolla/Altis
Production
Aug 2008
-
Apr 2011
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )2NZFE

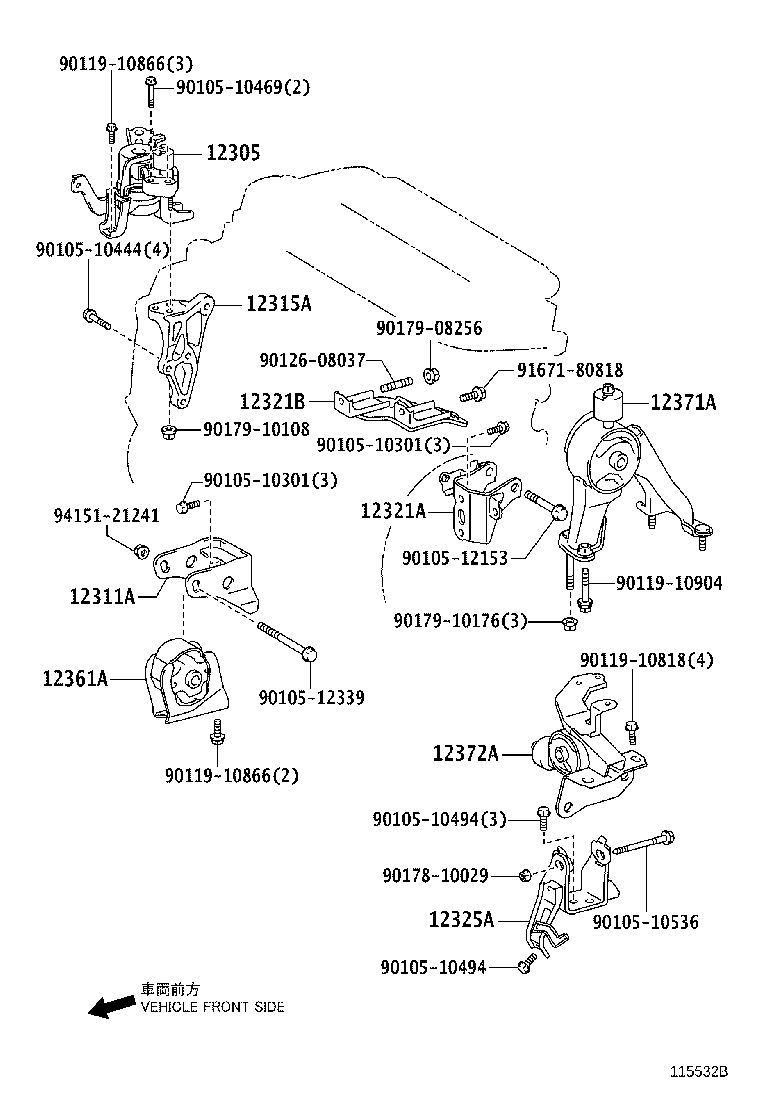

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21320 |
2NZFE..NZE140 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0M010 |
2NZFE..NZE140 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0M020 |
2NZFE..NZE140 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0D170 |
2NZFE..NZE140 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
2NZFE..NZE140 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21200 |
2NZFE..NZE140 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-21080 |
2NZFE..NZE140 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-21240 |
2NZFE..NZE140 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21230 |
2NZFE..NZE140 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10444 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10536 | ||||
| 90105-12153 | ||||
| 90105-12339 | ||||
| 90119-10818 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90126-08037 | ||||
| 90178-10029 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-10176 | ||||
| 91671-80818 | ||||
| 94151-21241 | ||||
