NZE140R-GEMDKP (2011)

Toyota Corolla/Altis

Production Apr 2011 - Jun 2014
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

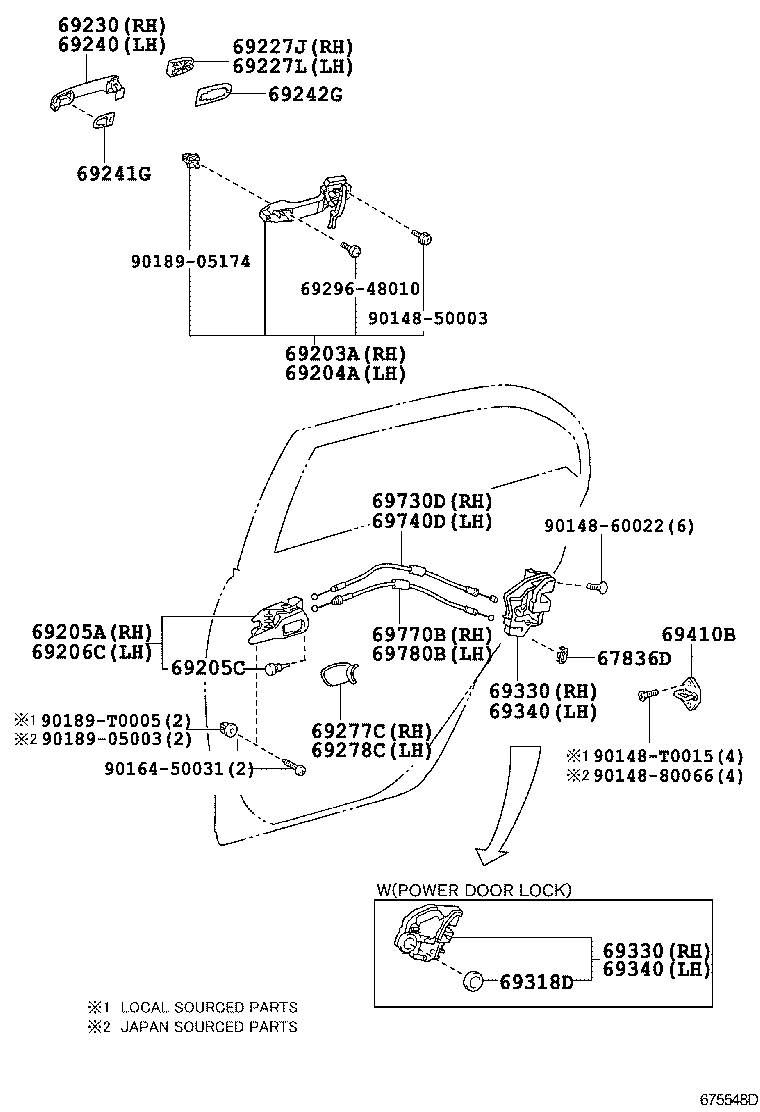

Click highlighted areas on diagram

diagram 67836D 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 69277C 69278C 6929648010 69318D 69330 69330 69340 69340 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066 90148T0015 9016450031 9018905003 9018905174 90189T0005
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

CE140,NZE140,ZRE141..PKN

 2
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-02170

CE140,NZE140,ZRE141..PKN

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-02170

CE140,NZE140,ZRE141..PKN

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-02190E0

CE140,NZE140

GREGE,TRIM4#

 1
69205-02190E0

CE140,NZE140,ZRE141,142..(18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN)

GREGE,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

CE140,NZE140

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02200E0

CE140,NZE140

GREGE,TRIM4#

 1
69206-02200E0

CE140,NZE140,ZRE141,142..(18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN)

GREGE,TRIM4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42060

CE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN

BLACK MATERIAL

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-42060

CE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN

BLACK MATERIAL

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-42010

CE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN

NO PAINT REQ.

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-42010

CE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN

NO PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

CE140,NZE140,ZRE141..PKN

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

CE140,NZE140

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-02140E0

CE140,NZE140,ZRE141..PKN

GREGE,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-02130E0

CE140,NZE140,ZRE141..PKN

GREGE,TRIM4#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-02220

CE140,NZE140,ZRE141..20DSA,D,GLI,N

 1
69330-0K040

CE140,NZE140..20D,XLI

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-02220

CE140,NZE140,ZRE141..20DSA,D,GLI,N

 1
69330-0K040

CE140,NZE140..20D,XLI

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02210

CE140,NZE140,ZRE141..20DSA,D,GLI,N

 1
69340-0K040

CE140,NZE140..20D,XLI

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02210

CE140,NZE140,ZRE141..20DSA,D,GLI,N

 1
69340-0K040

CE140,NZE140..20D,XLI

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-02270

CE140,NZE140..20D,XLI

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-02270

CE140,NZE140..20D,XLI

 1
Common parts
69296-48010
90148-50003
90148-60022
90148-80066
90148-T0015
90164-50031
90189-05003
90189-05174
90189-T0005
