NZE140R-GEMDKP (2011)
Toyota Corolla/Altis
Production
Apr 2011
-
Jun 2014
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-02230 |
CE140,NZE140 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-02140 |
CE140,NZE140 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
7 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-02250 |
CE140,NZE140 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-02250 |
CE140,NZE140 |
1 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-02040 |
CE140,NZE140 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-02040 |
CE140,NZE140 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-02120 |
CE140,NZE140 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-02120 |
CE140,NZE140 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-0D010 |
CE140,NZE140 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-08200E0 |
CE140,NZE140 SANDAL WOOD |
2 | ||
| 60117B - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-02080 |
CE140,NZE140 |
1 | ||
| 60118B - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-02080 |
CE140,NZE140 |
1 | ||
| 67772J - CAP, FRONT PILLAR COVER RETAINER | ||||
| 67772-95J03 |
CE140,NZE140 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-T0004 | ||||
| 90467-10162 | ||||
| 90541-15019 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
| Linked diagrams | ||||
| 5701 | ||||

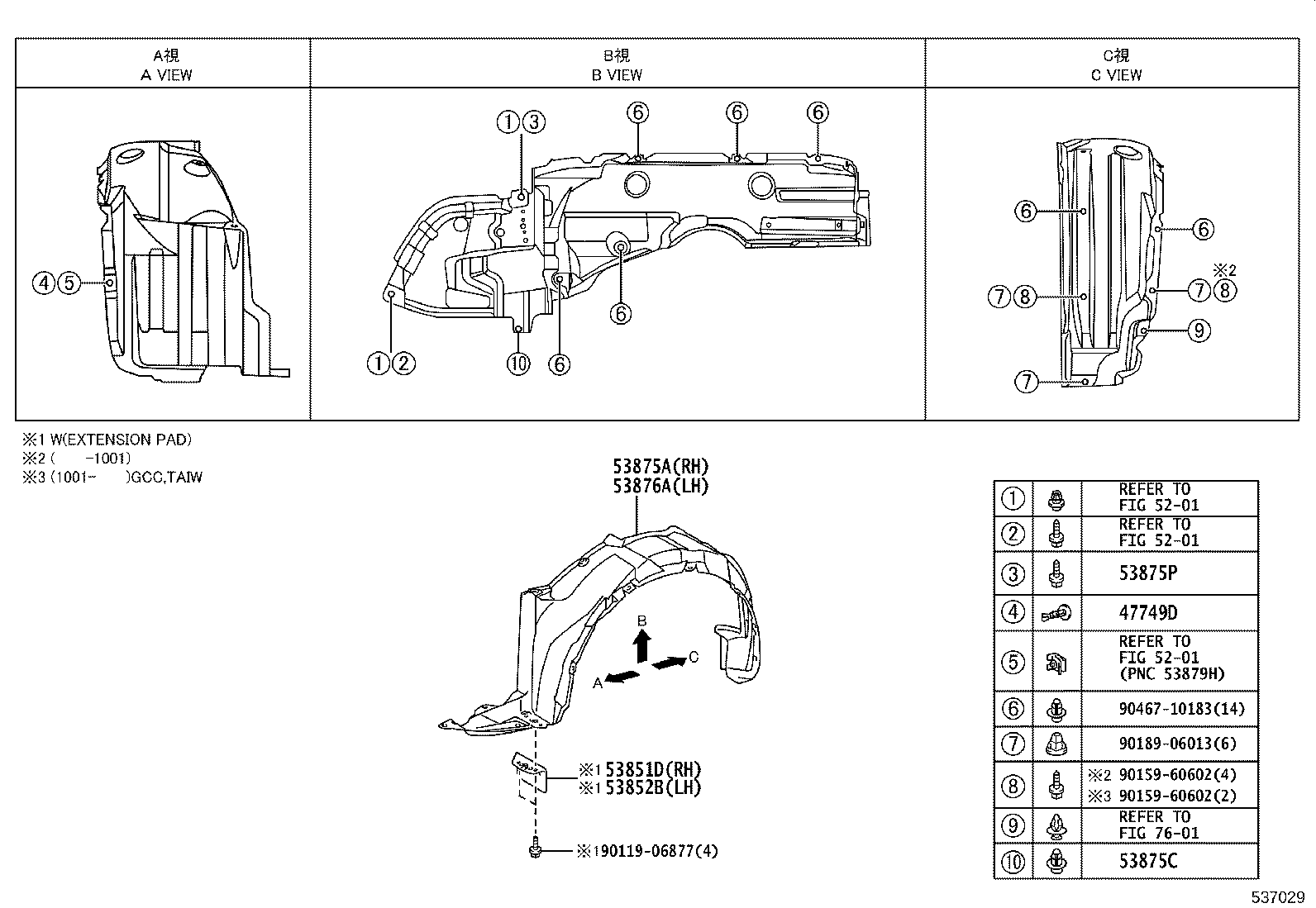

ILLUST NO. 2 OF 2(0712- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-02440 |
CE140,NZE140,ZRE141..PKN |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-02440 |
CE140,NZE140,ZRE141..PKN |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7601 | ||||
