NZE140R-GEMDKP (2011)
Toyota Corolla/Altis
Production
Apr 2011
-
Jun 2014
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1207- )2NZFE

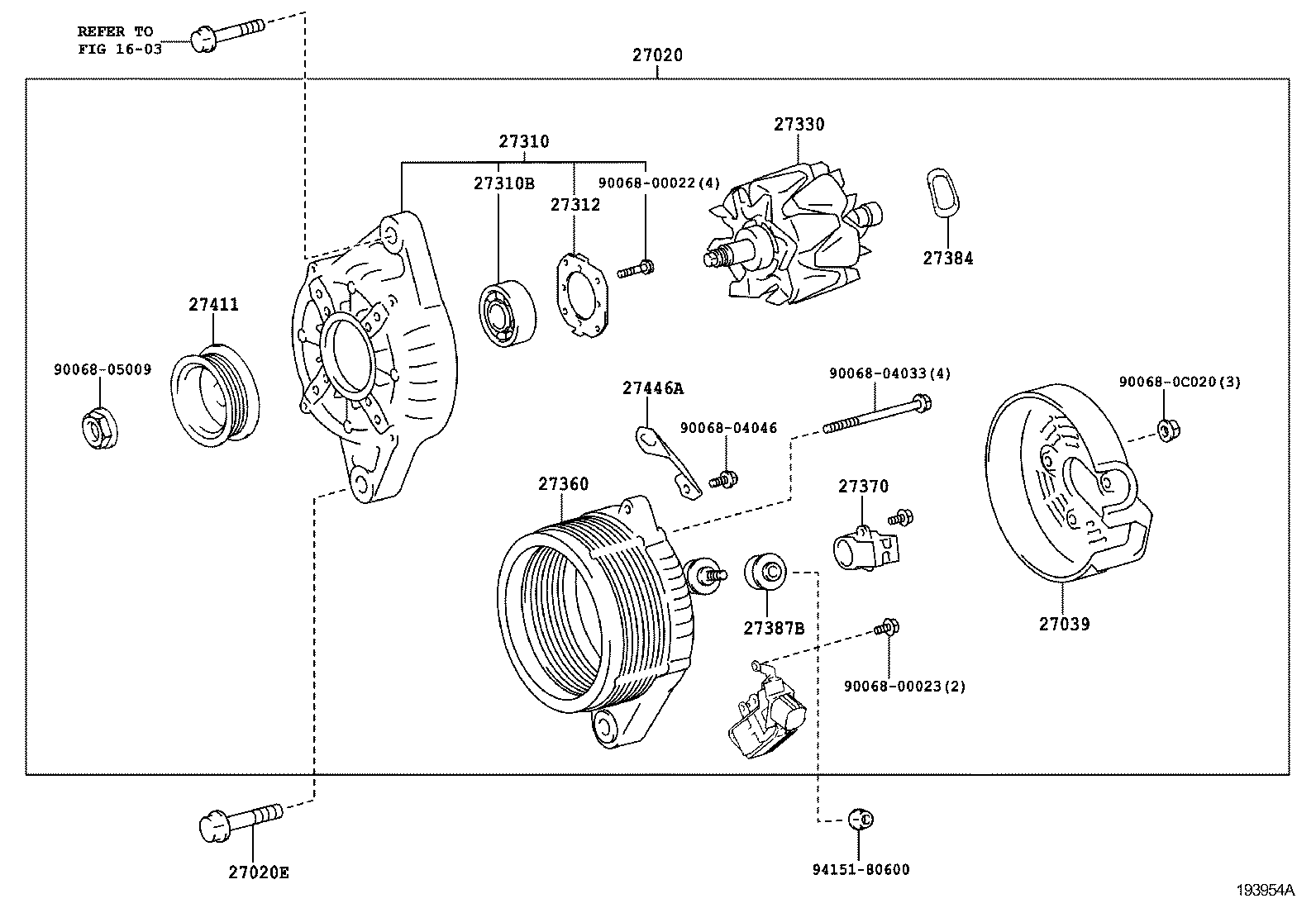

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21151 |
2NZFE..NZE140 12V 80A |
1 | ||
| 27060-0M040 |
2NZFE..NZE140 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
2NZFE..NZE140 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0C020 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0M040 |
2NZFE..NZE140 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10036 |
2NZFE..NZE140 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30130 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27330-0M040 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0M040 |
2NZFE..NZE140 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-23120 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27370-0M040 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27384 - WASHER | ||||
| 27384-0C020 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0C020 |
2NZFE,1ZRFE..NZE140,ZRE141..PKN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0M040 |
2NZFE..NZE140 |
1 | ||
| 27411-70140 |
2NZFE..NZE140 |
1 | ||
| 27446A - CLAMP | ||||
| 27446-0M040 |
2NZFE..NZE140 |
1 | ||
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04033 | ||||
| 90068-04046 | ||||
| 90068-05009 | ||||
| 90068-0C020 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
