NDE140R-GEFEYX (2010)

Toyota Corolla/Altis

Production Jun 2010 - May 2011
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1006- )NDE140

Click highlighted areas on diagram

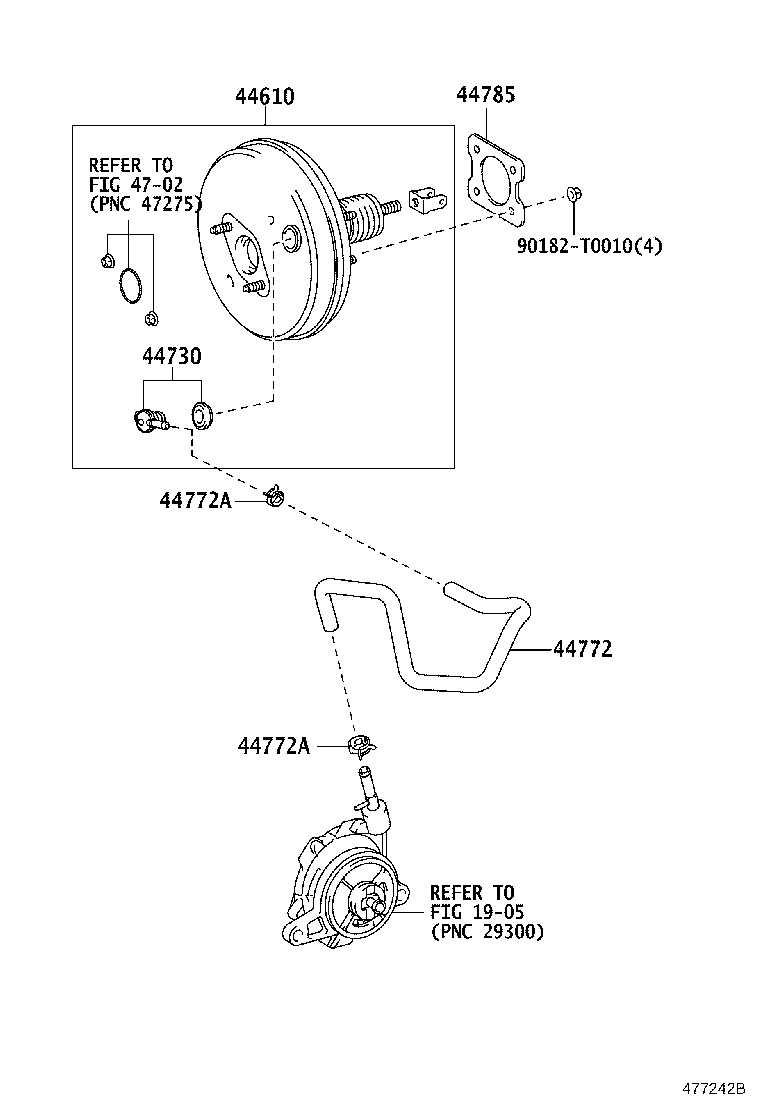

diagram 1905 44610 44730 44772 44772A 44772A 44785 4702 90182T0010
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09460

NDE140

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02050

NDE140

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

CE140,NDE140

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

CE140,NDE140

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)

 1
44785-12040

NDE140,ZZE142..IND

 1
Common parts
90182-T0010
Linked diagrams
1905
4702
