Toyota Corolla/altis MZEA12 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
MZEA12L-GEXNBV (2019)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MZEA12L-GEXNBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999

Engine M20AFKS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1904- )MZEA12

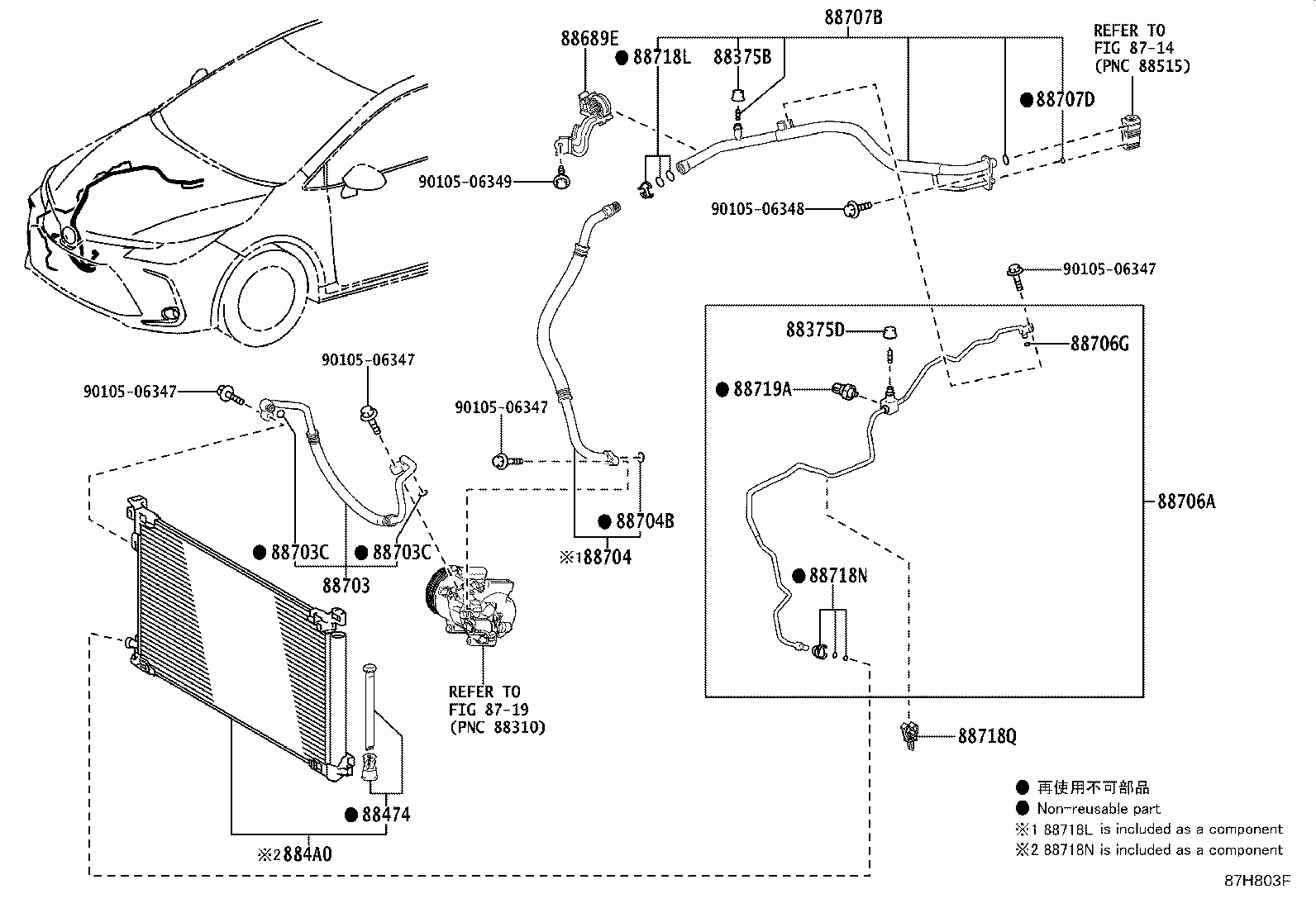

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GEN,IDN,PHL,SGP	04/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12020	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
884A0 - CONDENSER ASSY, COOLER
884A0-02150	MZEA1#	04/2019 - 12/2999	1
88689E - BRACKET, COOLER, NO.1
88688-02F10	MZEA1#,ZRE210..GCC	04/2019 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02D30	MZEA12	04/2019 - 12/2999	1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=10.8,OD=15.6	04/2019 - 12/2999	2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=10.8,OD=15.6	04/2019 - 12/2999	2
88704 - HOSE SUB-ASSY, SUCTION
88704-02D50	MZEA12	04/2019 - 12/2999	1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=13.4,OD=18.2	04/2019 - 12/2999	1
88706A - TUBE SUB-ASSY, LIQUID, A
88710-02F00	MZEA1#	04/2019 - 12/2999	1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119	MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=6.7,OD=10.3	04/2019 - 12/2999	1
88707B - TUBE SUB-ASSY, SUCTION, B
88710-02E60	MZEA1#,ZRE210..GCC	04/2019 - 12/2999	1
88707D - RING, O(FOR SUCTION TUBE)
90099-14119	MZEA1#,ZRE210..GCC ID=6.7,OD=10.3	04/2019 - 12/2999	1
88718L - CLAMP, PIPING
88718-52280	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
88718N - CLAMP, PIPING
88718-1E150	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
88718Q - CLAMP, PIPING
88718-02B00	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90105-06347
90105-06348
90105-06349
Linked diagrams
8714
8719

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,SGP

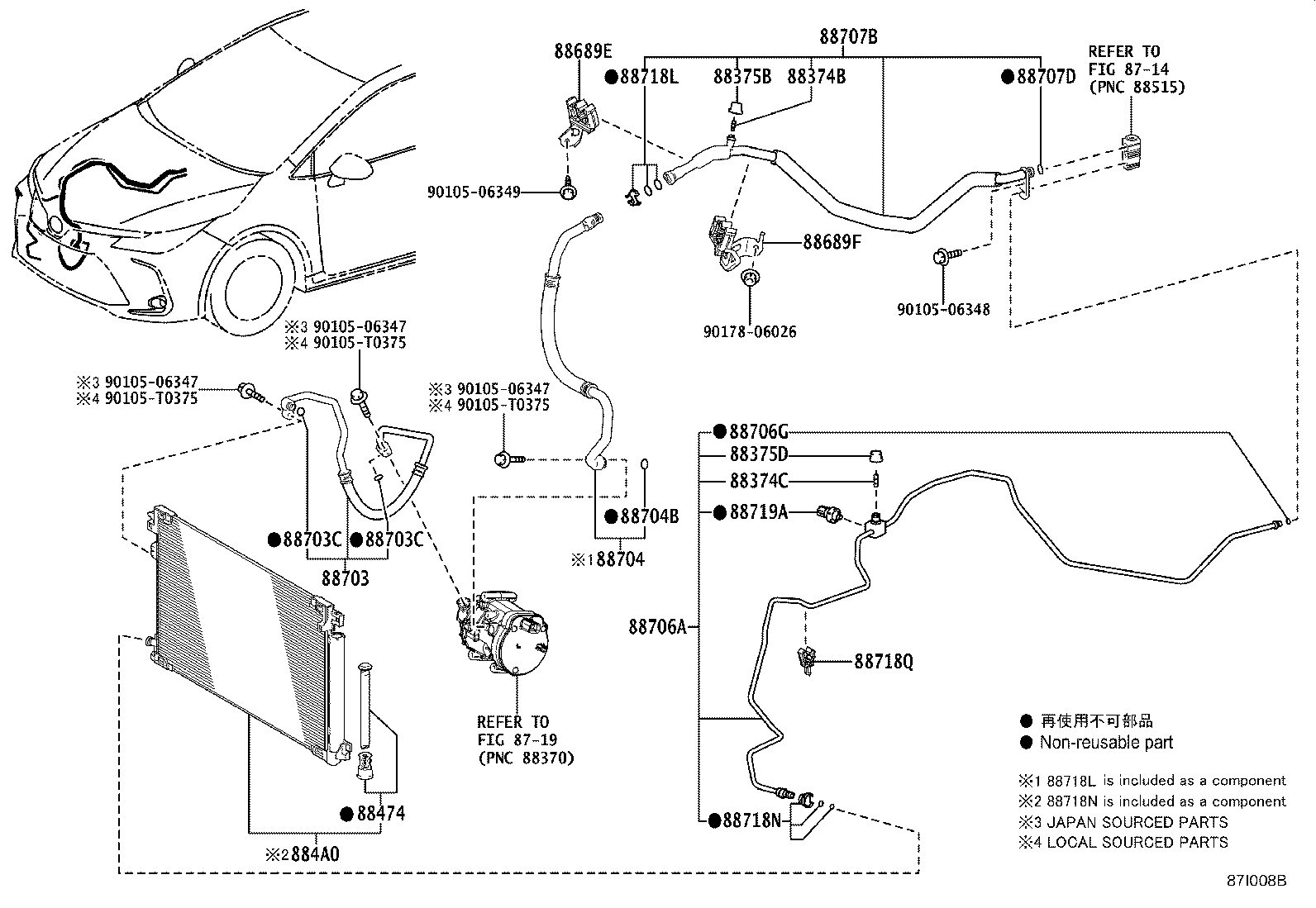

Click highlighted areas on diagram
