MZEA12L-GEXDBV (2019)
Toyota Corolla/Altis

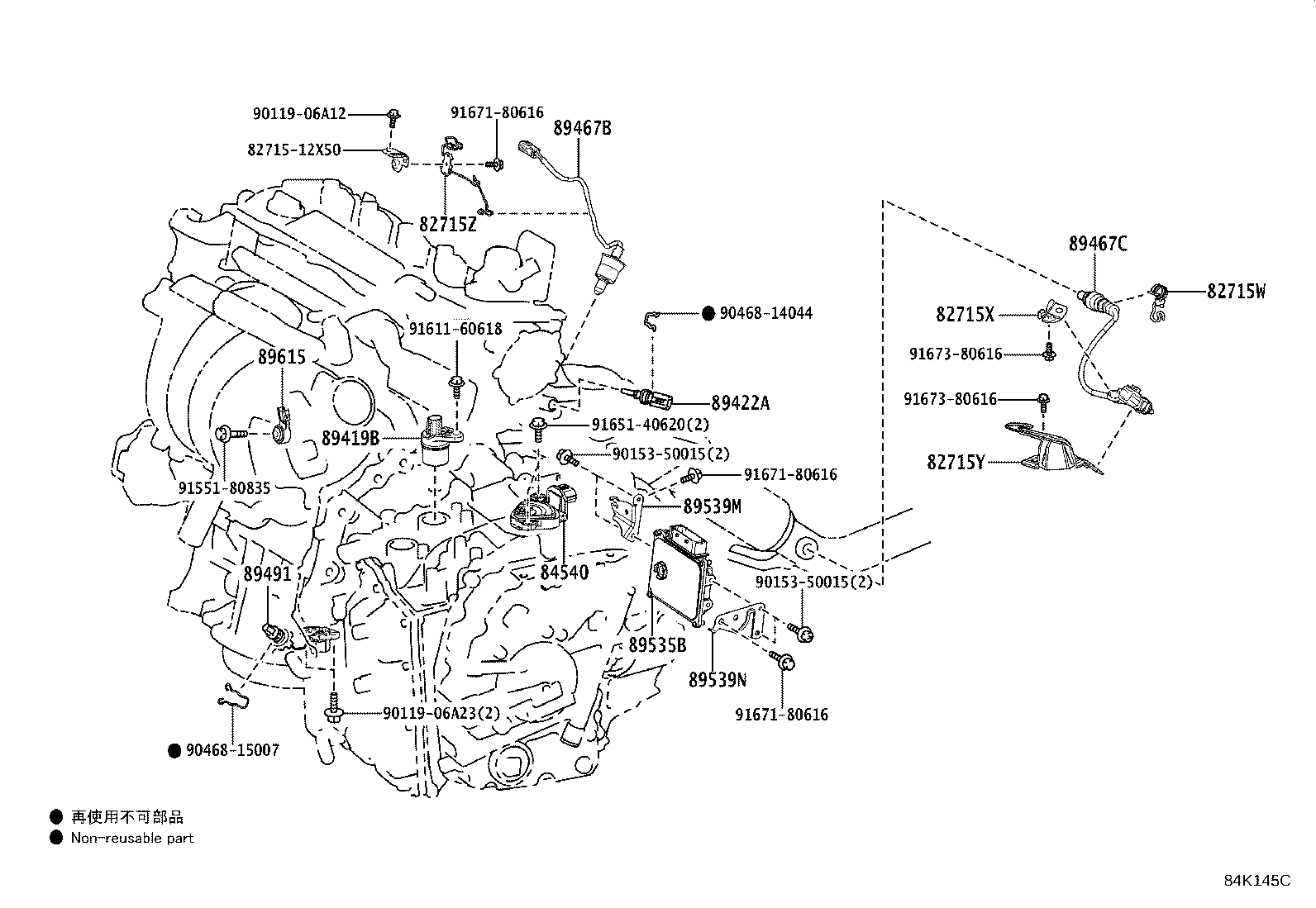

ILLUST NO. 1 OF 9(1904- )MZEA12
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-0Z190 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-0Z180 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-12V90 |
MZEA12 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12240 |
MZEA12 |
1 | ||
| 89419B - SENSOR, SHIFT STROKE | ||||
| 89419-12011 |
MZEA12 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
MZEA1# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12280 |
MZEA12 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-12290 |
MZEA12 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
MZEA12 |
1 | ||
| 89535B - COMPUTER, TRANSMISSION CONTROL | ||||
| 89535-12150 |
MZEA12 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-12070 |
MZEA12 |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-12080 |
MZEA12 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| Common parts | ||||
| 82715-12X50 | ||||
| 90119-06A12 | ||||
| 90119-06A23 | ||||
| 90153-50015 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||

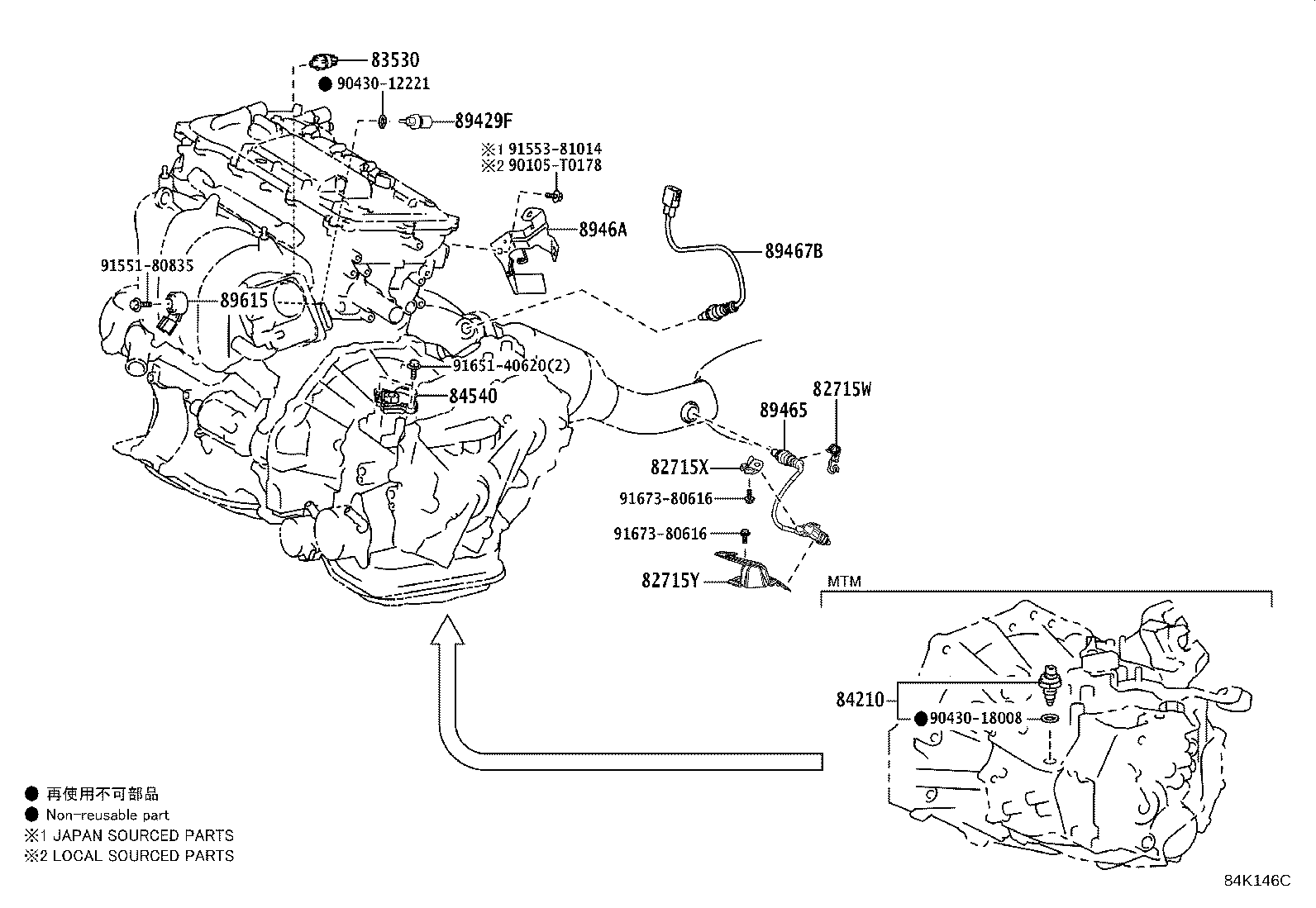

ILLUST NO. 1 OF 9(1904- )ZRE210;ZRE211..D,E,G
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-0Z190 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-0Z180 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12240 |
MZEA12 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12280 |
MZEA12 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| Common parts | ||||
| 90105-T0178 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91673-80616 | ||||

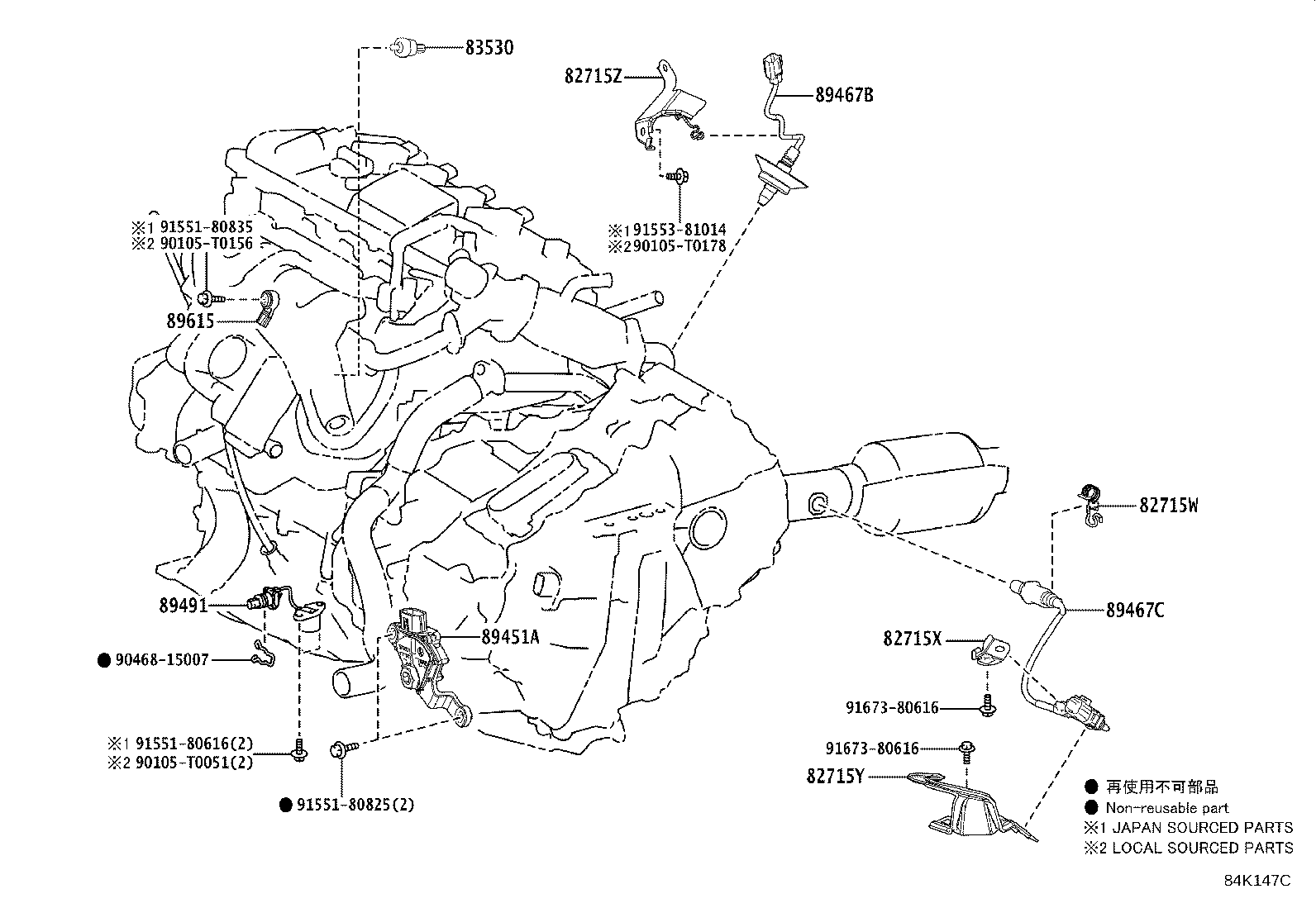

ILLUST NO. 1 OF 9(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-0Z190 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-0Z180 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-12V90 |
MZEA12 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12280 |
MZEA12 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-12290 |
MZEA12 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
MZEA12 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0156 | ||||
| 90105-T0178 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80616 | ||||

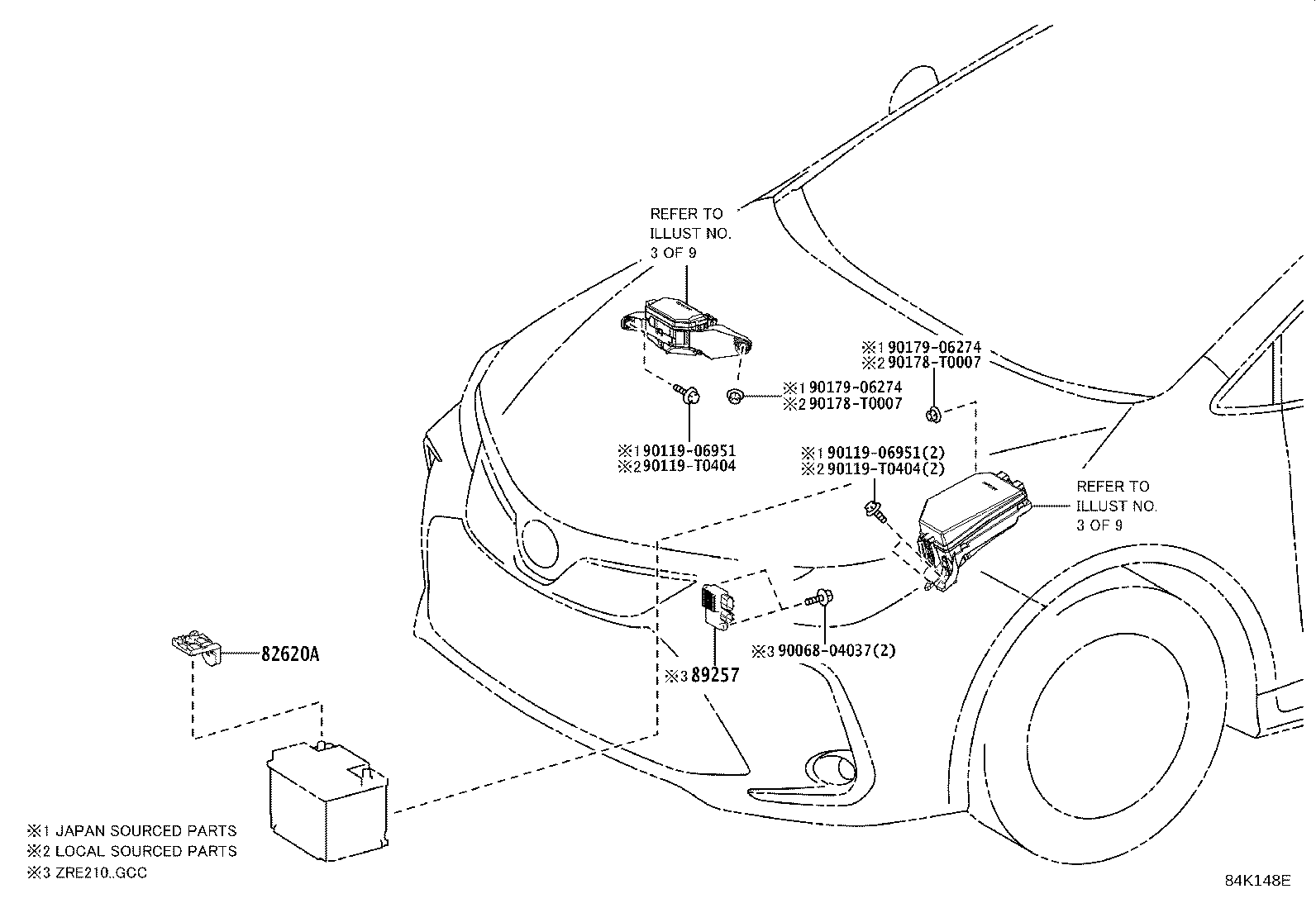

ILLUST NO. 2 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||

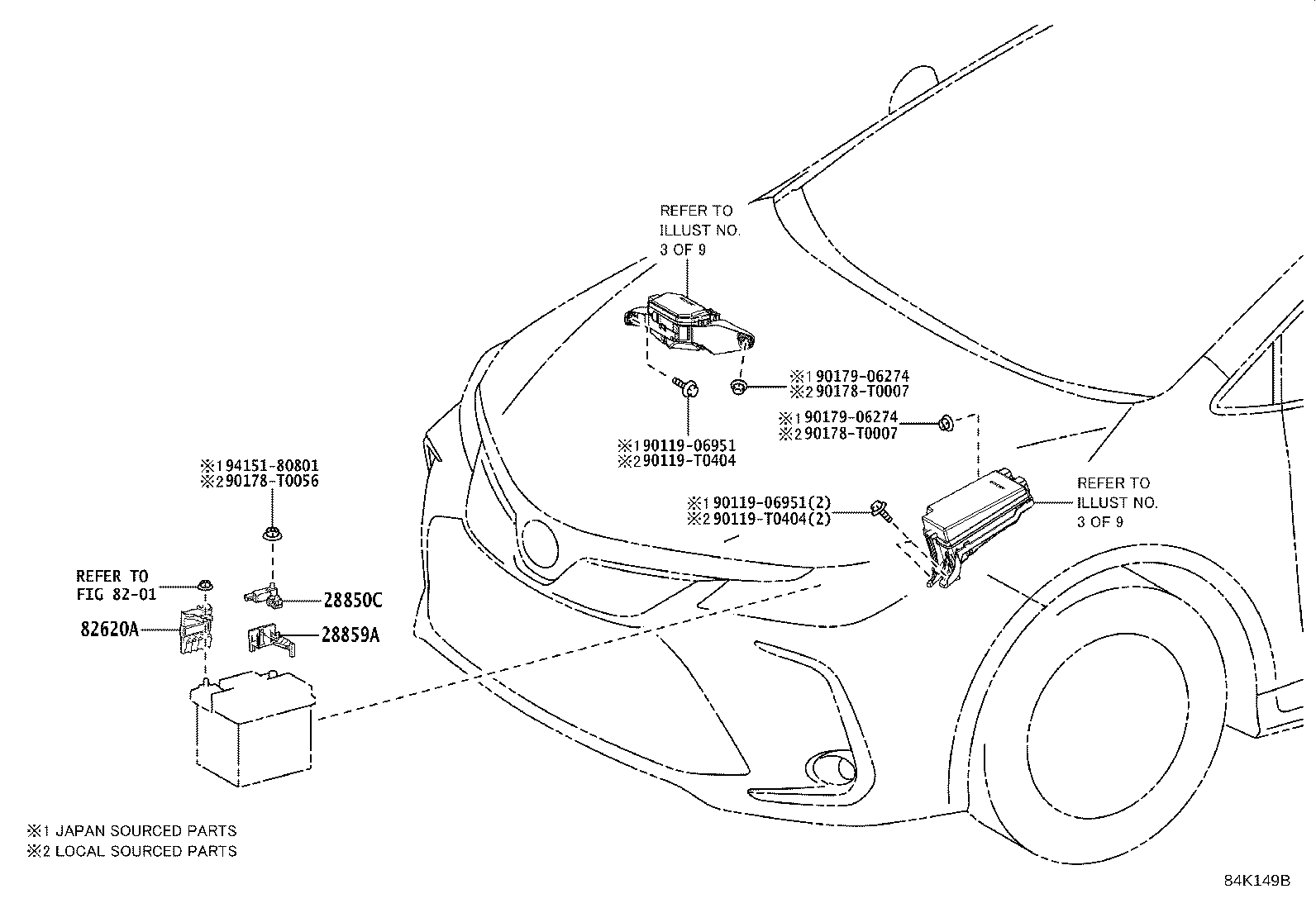

ILLUST NO. 2 OF 9(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0056 | ||||
| 90179-06274 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 4 OF 9(1904- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-12150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-02150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02280 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02290 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X60 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X60 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0Z160 |
ZWE211..(G,V)..TH;ZRE211..(D,E)..TAIW;ZWE211..GCC,GEN,IDN,PHL,SGP;MZEA1#,ZRE21#..CVT..(GCC,GEN,IDN,PHL,SGP,TH) |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02070 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09380 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12050 |
MZEA1#,ZRE21#..GCC,TAIW |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0Z590 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12M30 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW JTEKT/DENSO |
1 | ||
| 89650-12K80 |
MZEA12,ZRE21#,ZWE211 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 9(1904- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-02050 |
ZWE211..N..GCC;MZEA1#,ZRE210..GCC;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..(D,V)..(GCC,IDN,TAIW,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02470 |
MZEA12,ZRE211..LHD |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02470 |
MZEA12,ZRE211..LHD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85535-12090C0 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
MZEA1#,ZRE21#..(G,N)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||

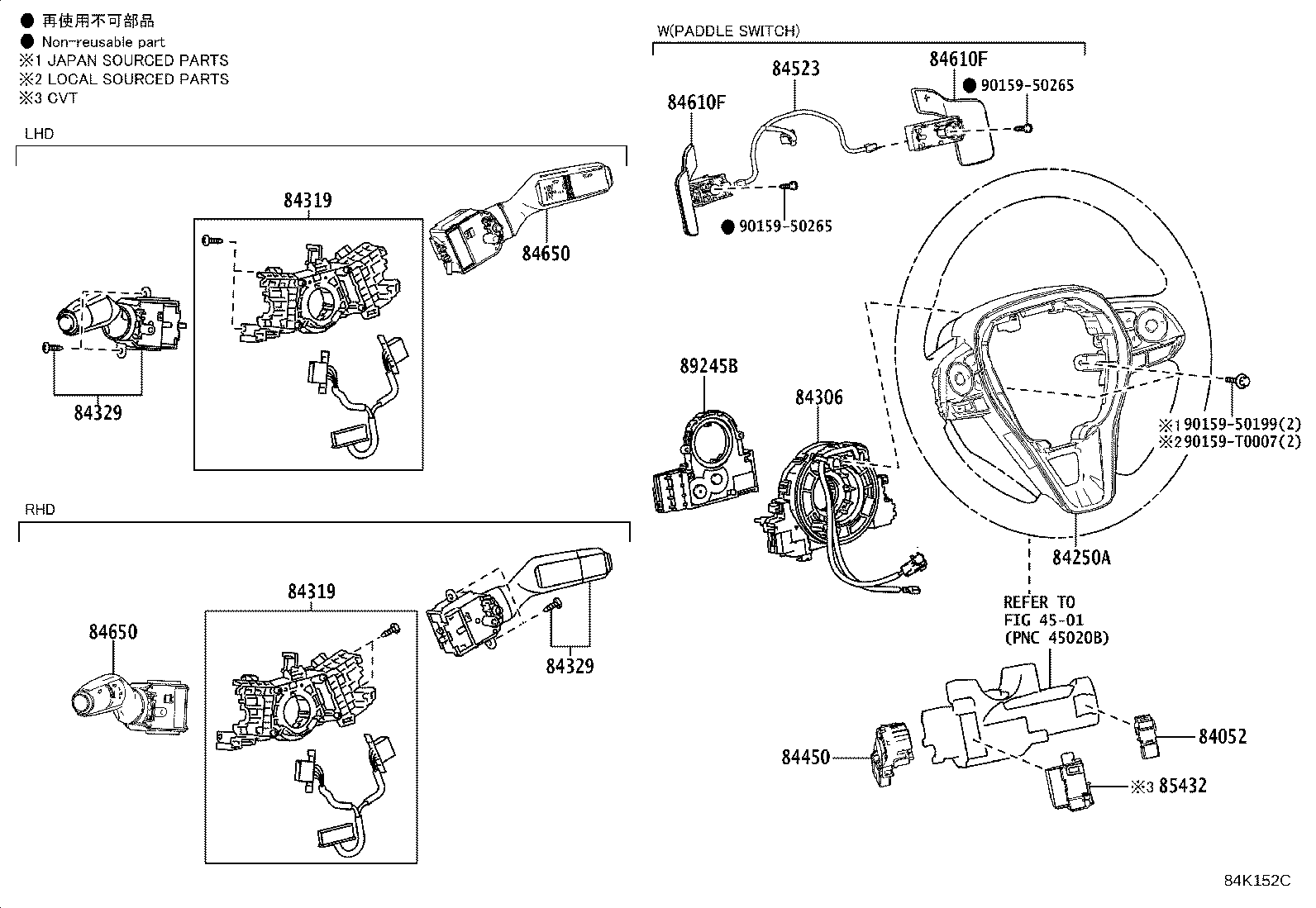

ILLUST NO. 6 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 84052-71010 |
ZRE211..E..TAIW;MZEA12,ZWE211..D MIDDLE GRADE PACKAGE |
1 | ||
| 84052-71010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02D90 |
MZEA12..D SAUDI ARABIA SPEC& LOW GRADE PACKAGE&CRUISE CONTROL-WITHOUT |
1 | ||
| 84250-02D90 |
MZEA12..D QATAR SPEC& LOW GRADE PACKAGE&CRUISE CONTROL-WITHOUT |
1 | ||
| 84250-02D80 |
MZEA1#,ZRE210..D..GCC |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-06070 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-02120 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-02120 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
ZRE211..(D,E)..TAIW;MZEA1#,ZRE210,ZWE211..CVT..(D,G)..(GCC,GEN,PHL) |
1 | ||
| 84450-33040 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 84450-33040 |
ZRE211..E..TAIW;MZEA12,ZWE211..D MIDDLE GRADE PACKAGE |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02B10 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84652-02B20 |
MZEA1#,ZRE210,ZWE211..D..GCC LOW GRADE PACKAGE |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02B10 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84652-02B20 |
MZEA1#,ZRE210,ZWE211..D..GCC LOW GRADE PACKAGE |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06040 |
ZRE211..(D,E)..TAIW;MZEA1#,ZRE210,ZWE211..CVT..(D,G)..(GCC,GEN,PHL) |
1 | ||
| 85432-06040 |
ZRE211..E..TAIW;MZEA12,ZWE211..D MIDDLE GRADE PACKAGE |
1 | ||
| 85432-06040 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-02120 |
MZEA1#,ZWE211..GCC;ZRE210..CVT..(D,G,N)..(GCC,PHL,TH) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90159-T0007 | ||||
| Linked diagrams | ||||
| 4501 | ||||

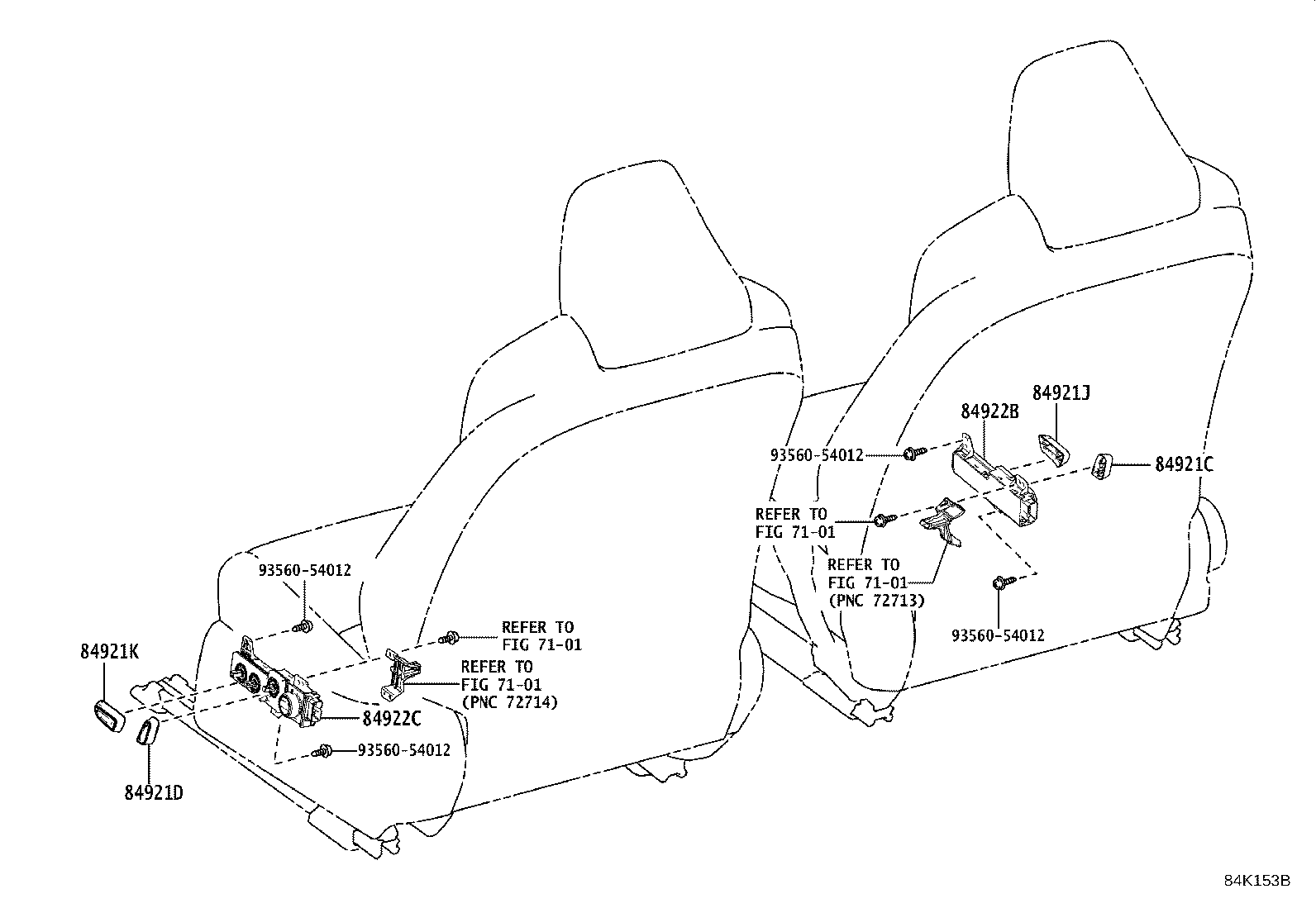

ILLUST NO. 7 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||

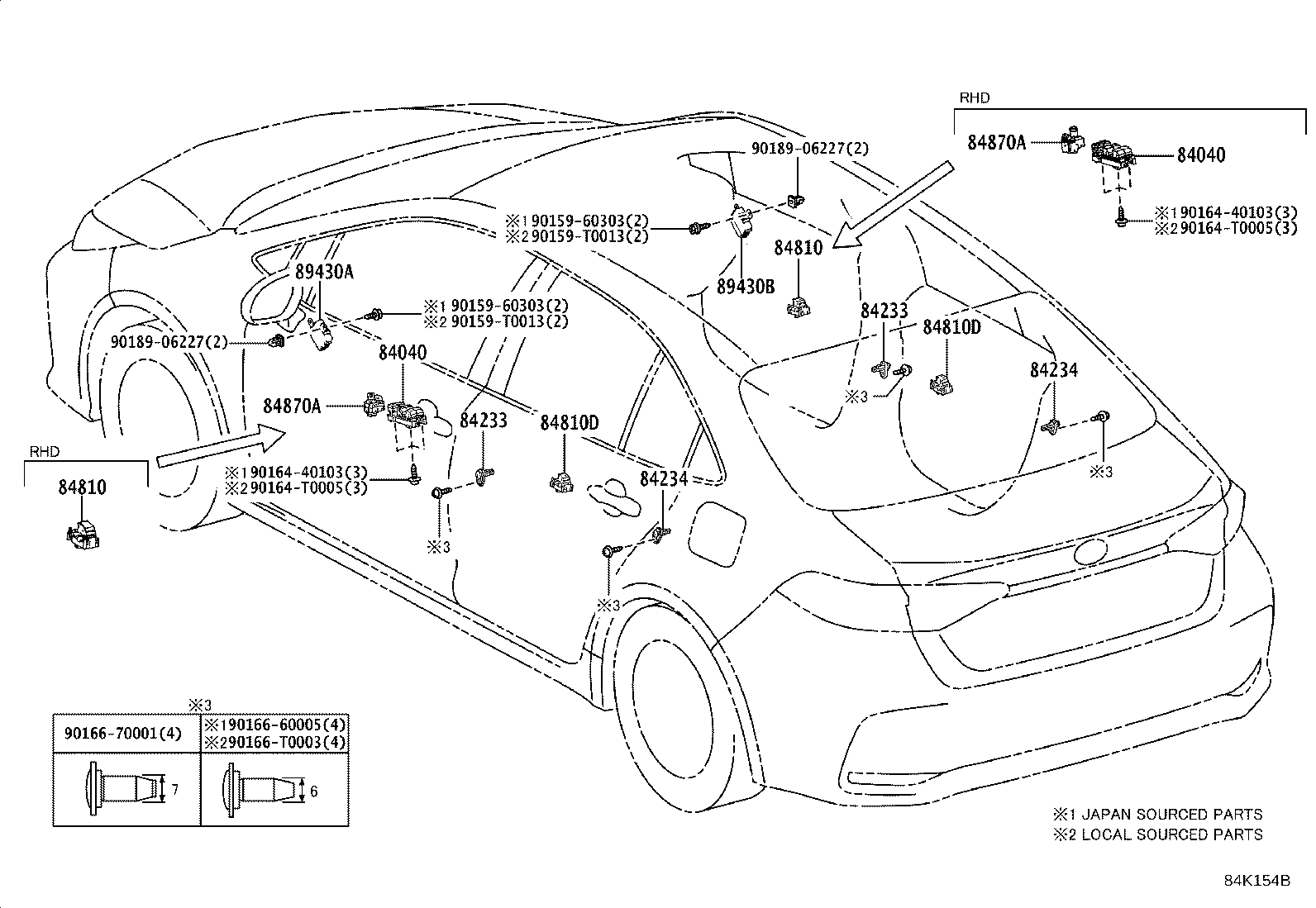

ILLUST NO. 8 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02300 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02300 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02300 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02300 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02590 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,N) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02590 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,N) |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90166-T0003 | ||||
| 90189-06227 | ||||

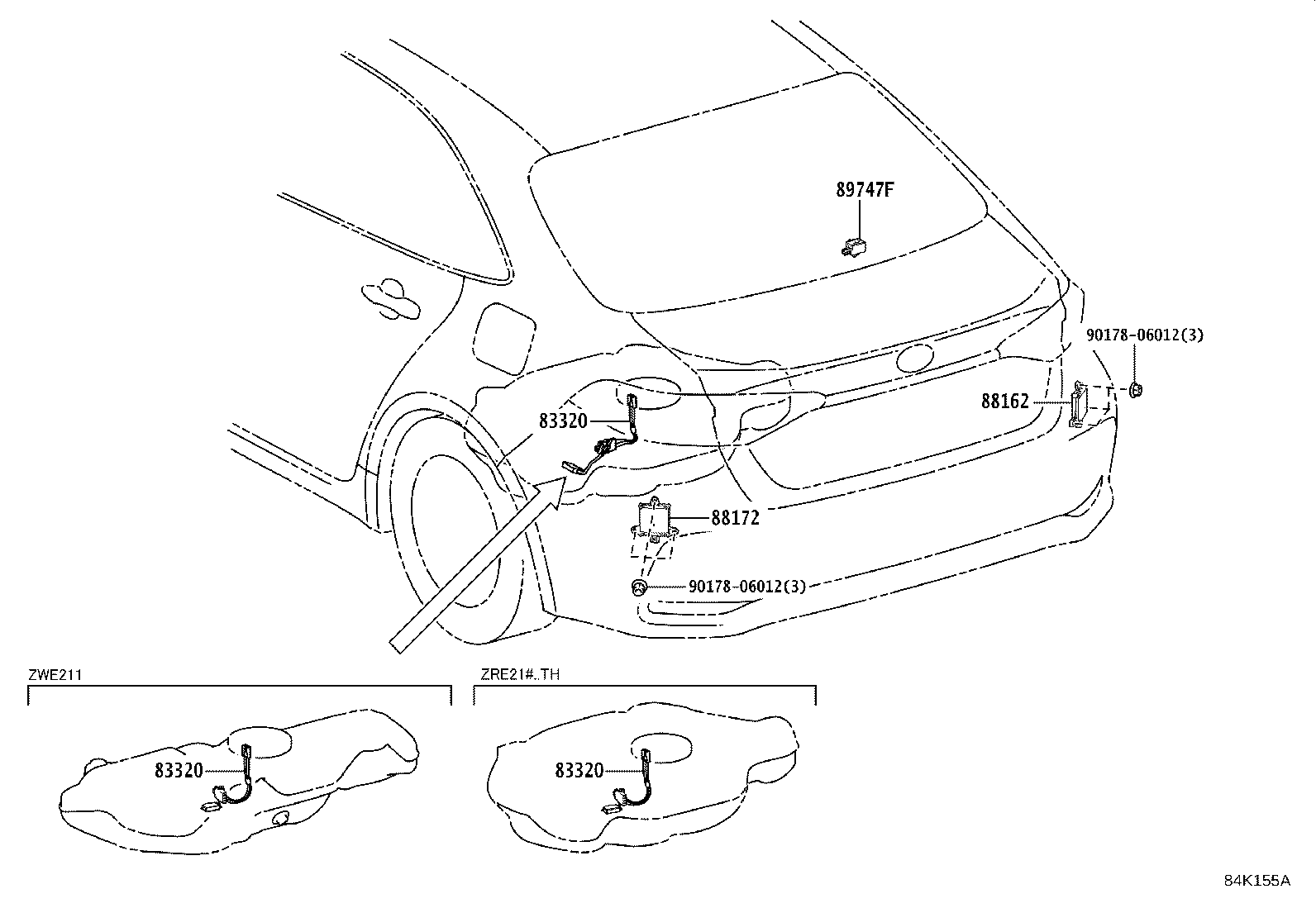

ILLUST NO. 9 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
ILLUST NO. 3 OF 9(1904- )MZEA1#,ZRE210;ZRE211..D,E,G
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L011 |
2ZRFE..ZRE211..D,E,G;M15AFKS,M20AFKS,1ZR#,2ZRFBE..MZEA1#,ZRE21#..CVT |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02G80 |
MZEA12 |
1 | ||
| 82662-02G81 |
MZEA12 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02J20 |
MZEA12,ZRE21#..D,N |
1 | ||
| 82662-02J21 |
MZEA1#,ZRE21#..LHD..CVT..(D,N) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02027 |
MZEA1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,ZRE211..(G,N)..(GCC,IDN) UP GRADE PACKAGE,(J) |
1 | ||
| 90987-04010 |
ZRE211..D;MZEA1#,ZRE21#..(D,G,N)..(GCC,GEN,IDN) (L) |
1 | ||
| 90987-T2003 |
ZRE211..D;MZEA1#,ZRE21#..(D,G,N)..(GCC,GEN,IDN) (J) |
1 | ||
| 90987-04010 |
MZEA12,ZRE21#..D,N |
1 | ||
| 90987-T2003 |
MZEA12,ZRE211..(G,N)..(GCC,IDN) UP GRADE PACKAGE,(L) |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
MZEA12 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
MZEA1#,ZRE21#..LHD..CVT..(D,N) |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
MZEA1# |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02027 |
MZEA12 |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02027 |
MZEA12 |
1 | ||
ILLUST NO. 3 OF 9(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02G80 |
MZEA12 |
1 | ||
| 82662-02G81 |
MZEA12 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02J20 |
MZEA12,ZRE21#..D,N |
1 | ||
| 82662-02J21 |
MZEA1#,ZRE21#..LHD..CVT..(D,N) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,ZRE211..(G,N)..(GCC,IDN) UP GRADE PACKAGE,(J) |
1 | ||
| 90987-04010 |
ZRE211..D;MZEA1#,ZRE21#..(D,G,N)..(GCC,GEN,IDN) (L) |
1 | ||
| 90987-T2003 |
ZRE211..D;MZEA1#,ZRE21#..(D,G,N)..(GCC,GEN,IDN) (J) |
1 | ||
| 90987-04010 |
MZEA12,ZRE21#..D,N |
1 | ||
| 90987-T2003 |
MZEA12,ZRE211..(G,N)..(GCC,IDN) UP GRADE PACKAGE,(L) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
ILLUST NO. 5 OF 9(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-02050 |
ZWE211..N..GCC;MZEA1#,ZRE210..GCC;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..(D,V)..(GCC,IDN,TAIW,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02470 |
MZEA12,ZRE211..LHD |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02470 |
MZEA12,ZRE211..LHD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85535-12090C0 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12010 |
MZEA1#,ZRE21#..(G,N)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF 9(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-12150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-02150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02280 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02290 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0Z160 |
ZWE211..(G,V)..TH;ZRE211..(D,E)..TAIW;ZWE211..GCC,GEN,IDN,PHL,SGP;MZEA1#,ZRE21#..CVT..(GCC,GEN,IDN,PHL,SGP,TH) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09380 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12050 |
MZEA1#,ZRE21#..GCC,TAIW |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0Z590 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12M30 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW JTEKT/DENSO |
1 | ||
| 89650-12K80 |
MZEA12,ZRE21#,ZWE211 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
