MZEA11L-GEXDBV (2020)

Toyota Corolla/Altis

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )M15AFKS

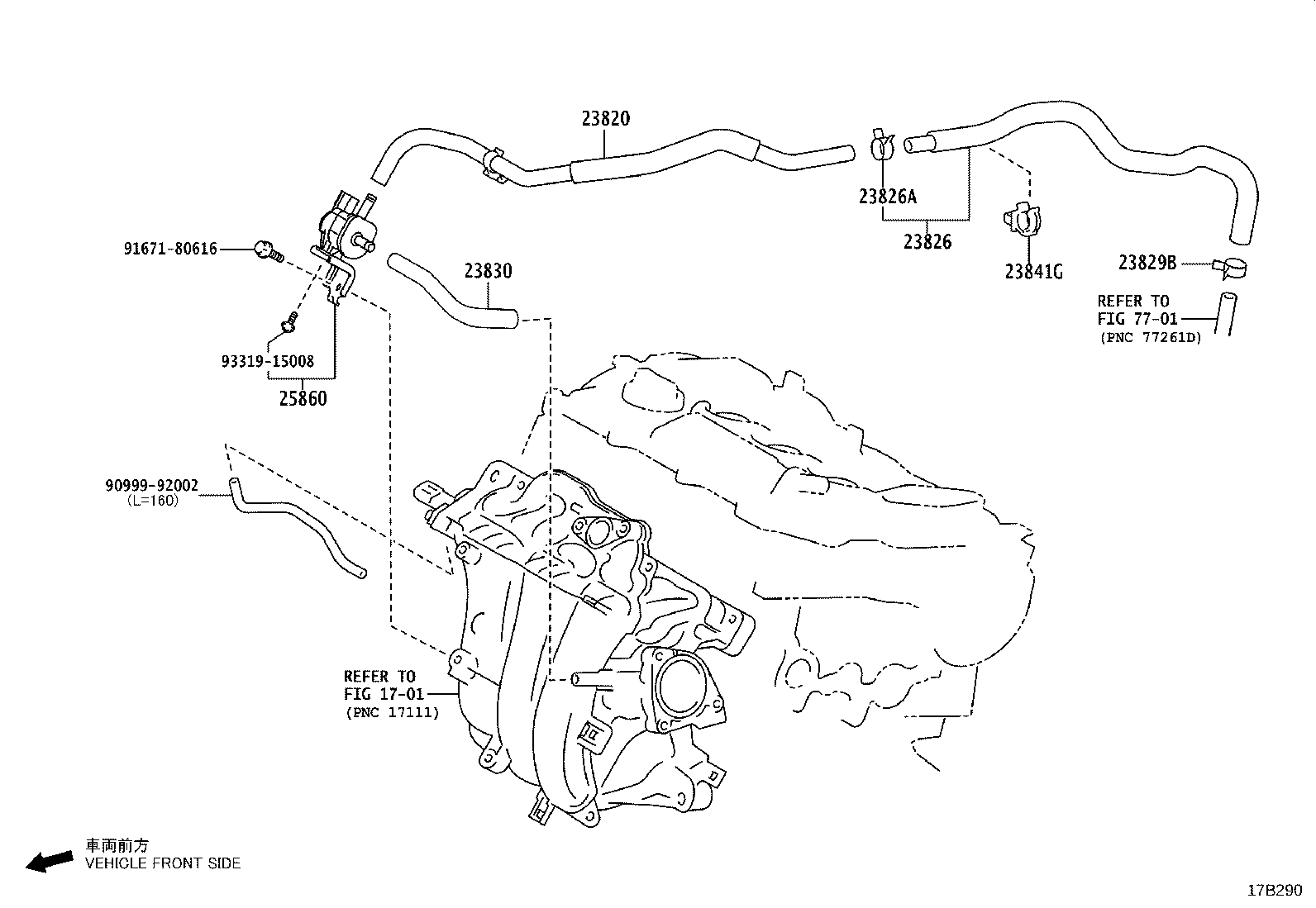

Click highlighted areas on diagram

diagram 1701 23820 23826 23826A 23829B 23830 23841G 25860 7701 9099992002 9167180616 9331915008
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-15040

M15AFKS..MZEA11

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-24091

M15AFKS..MZEA11

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901

M15AFKS..MZEA11

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901

M15AFKS..MZEA11

 1
23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2
23826-15010

M15AFKS..MZEA11

 1
23841G - CLAMP, FUEL HOSE
77196-33040

M15AFKS..MZEA11

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-15040

M15AFKS..MZEA11

 1
Common parts
90999-92002
91671-80616
93319-15008
Linked diagrams
1701
7701
