MZEA11L-GEXDBV (2020)

Toyota Corolla/Altis

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

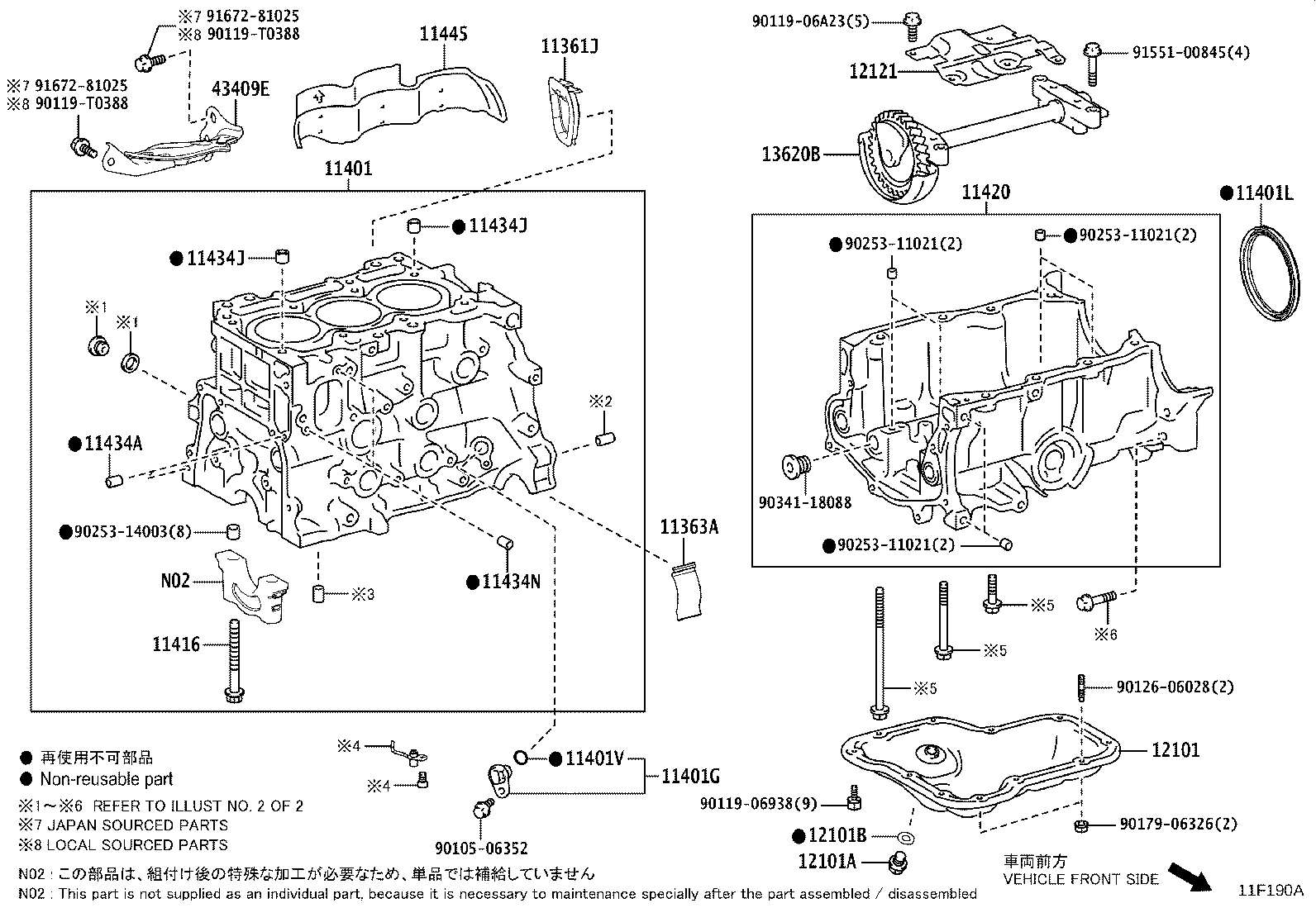

ILLUST NO. 1 OF 2(2008- )M15AFKS

Click highlighted areas on diagram

CYLINDER BLOCK

diagram 11361J 11363A 11401 11401G 11401L 11401V 11416 11420 11434A 11434J 11434J 11434N 11445 12101 12101A 12101B 12121 13620B 43409E 9010506352 9011906938 9011906A23 90119T0388 90119T0388 9012606028 9017906326 9025311021 9025311021 9025311021 9025314003 9034118088 9155100845 9167281025 9167281025
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-25010

M15AFKS,M20AFKS..MZEA1#

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-15010

M15AFKS..MZEA11

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-19005

M15AFKS..MZEA11

 1
11401G - SENSOR, CRANK POSITION
90919-05095

M15AFKS,M20AFKS..MZEA1#

 1
11401L - SEAL, ENGINE REAR OIL
90311-90010

M15AFKS,M20AFKS..MZEA1#

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-11039

M15AFKS,M20AFKS..MZEA1#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

M15AFKS..MZEA11

 8
11420 - CRANKCASE ASSY, STIFFENING
11420-15010

M15AFKS..MZEA11

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

M15AFKS,M20AFKS..MZEA1#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M15AFKS,M20AFKS..MZEA1#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M15AFKS,M20AFKS..MZEA1#

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

M15AFKS,M20AFKS..MZEA1#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-15010

M15AFKS..MZEA11

 1
12101 - PAN SUB-ASSY, OIL
12102-15010

M15AFKS..MZEA11

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

M15AFKS,M20AFKS..MZEA1#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

M15AFKS,M20AFKS..MZEA1#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-15050

M15AFKS..MZEA11

 1
13620B - BALANCER ASSY, ENGINE
13620-15010

M15AFKS..MZEA11

 1
43409E - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-K0030

MZEA11

 1
Common parts
90105-06352
90119-06938
90119-06A23
90119-T0388
90126-06028
90179-06326
90253-11021
90253-14003
90341-18088
91551-00845
91672-81025

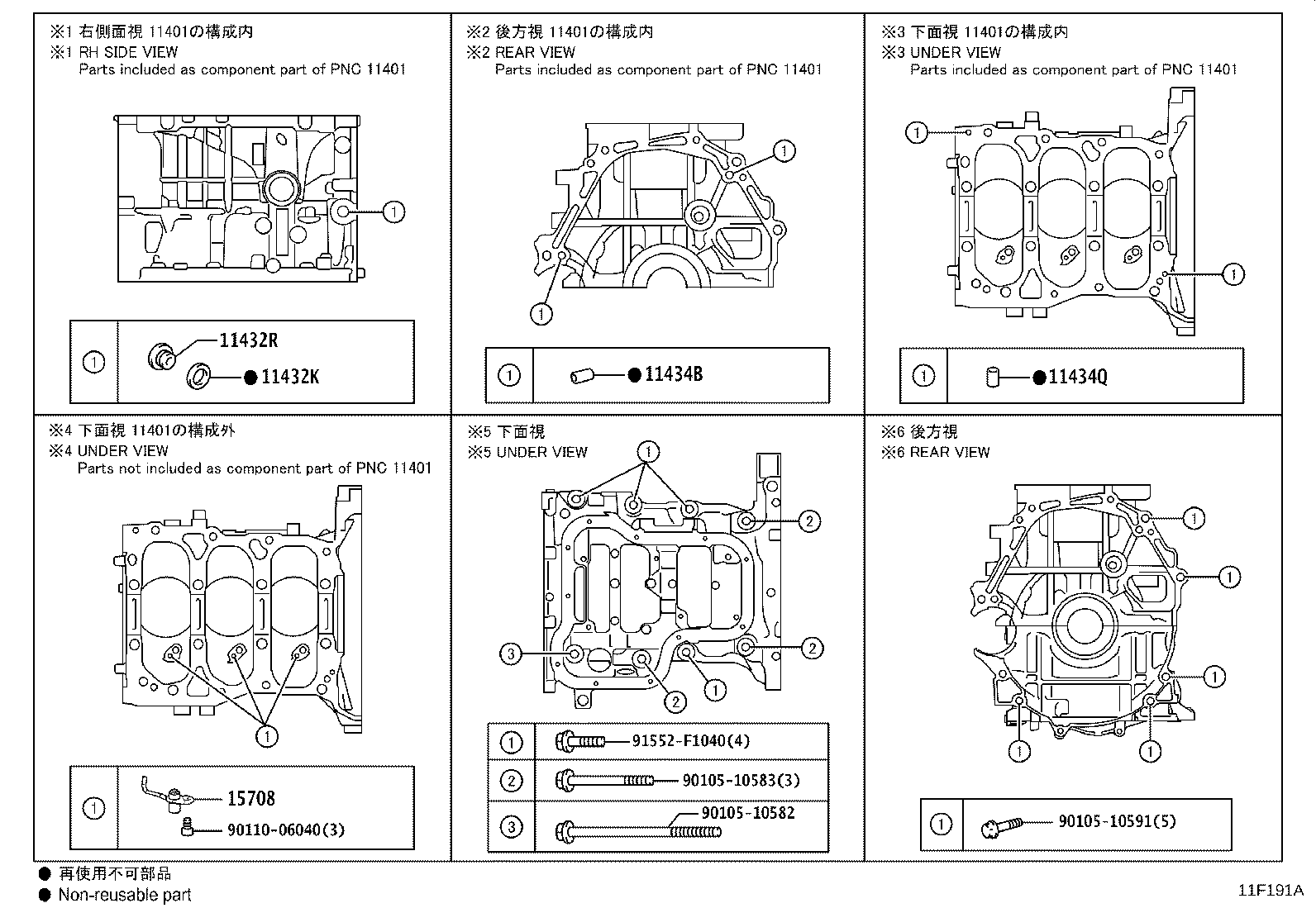

ILLUST NO. 2 OF 2(2008- )M15AFKS

Click highlighted areas on diagram

FITTING PARTS

diagram 11432K 11432R 11434B 11434Q 15708 9010510582 9010510583 9010510591 9011006040 91552F1040
Part # Description Qty Price
11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-18008

M15AFKS,M20AFKS..MZEA1#

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-18023

M15AFKS,M20AFKS..MZEA1#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

M15AFKS,M20AFKS..MZEA1#

L=22,OD=10

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

M15AFKS,M20AFKS..MZEA1#

L=14,OD=6

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-15010

M15AFKS..MZEA11

 3
Common parts
90105-10582
90105-10583
90105-10591
90110-06040
91552-F1040
