NTP10R-AHXDN (2017)
Toyota Comfort
Production
Oct 2017
-
Sep 9999
Engine
1NZFXP
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

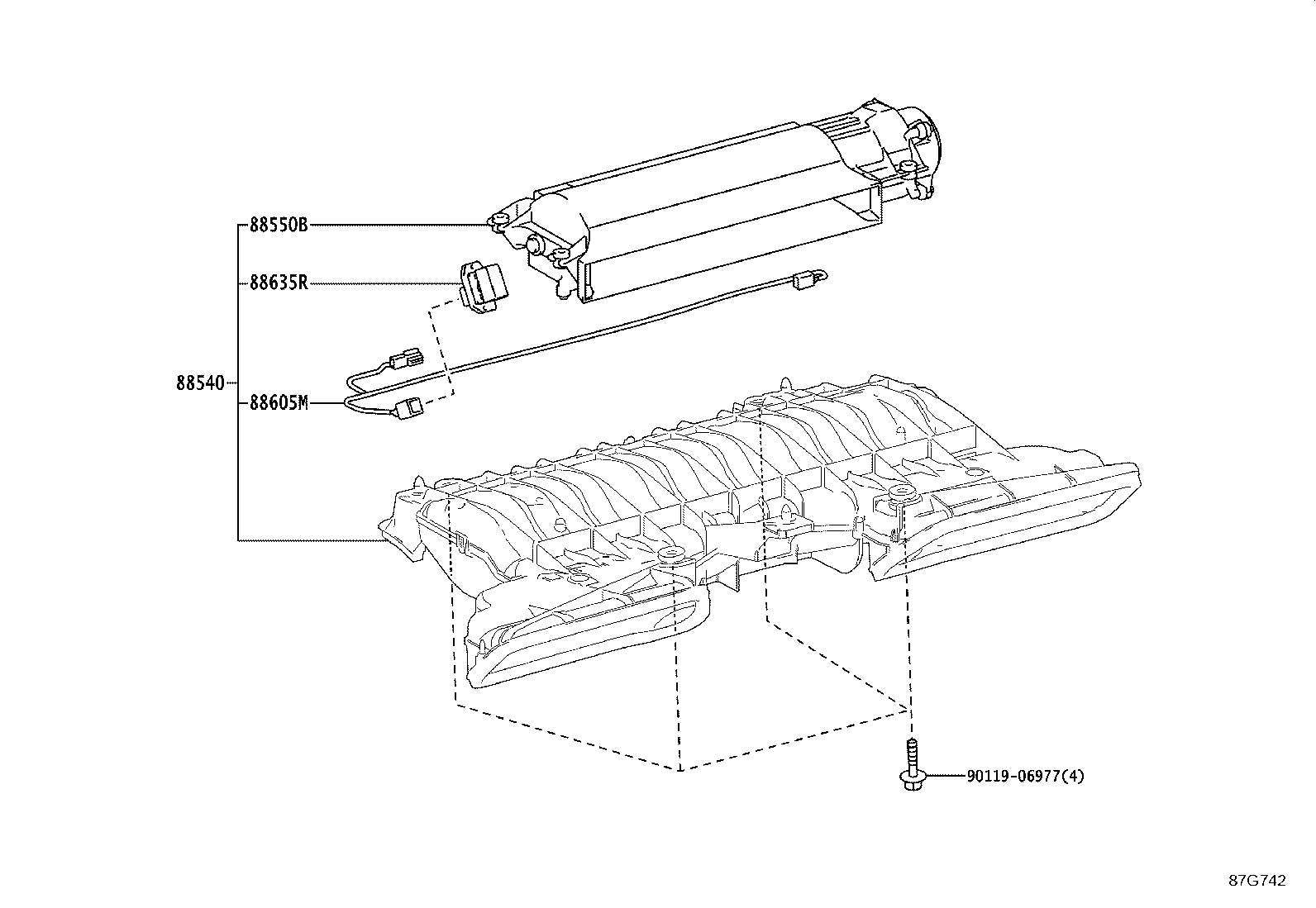

ILLUST NO. 2 OF 2(1710- )
Click highlighted areas on diagram
ROOF CIRCULATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88540 - BLOWER ASSY, COOLER | ||||
| 88540-15010 |
NTP10 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88540-15020 |
NTP10 |
1 | ||
| 88605M - HARNESS SUB-ASSY, WIRING | ||||
| 82210-15020 |
NTP10 |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 87138-15010 |
NTP10 |
1 | ||
| Common parts | ||||
| 90119-06977 | ||||

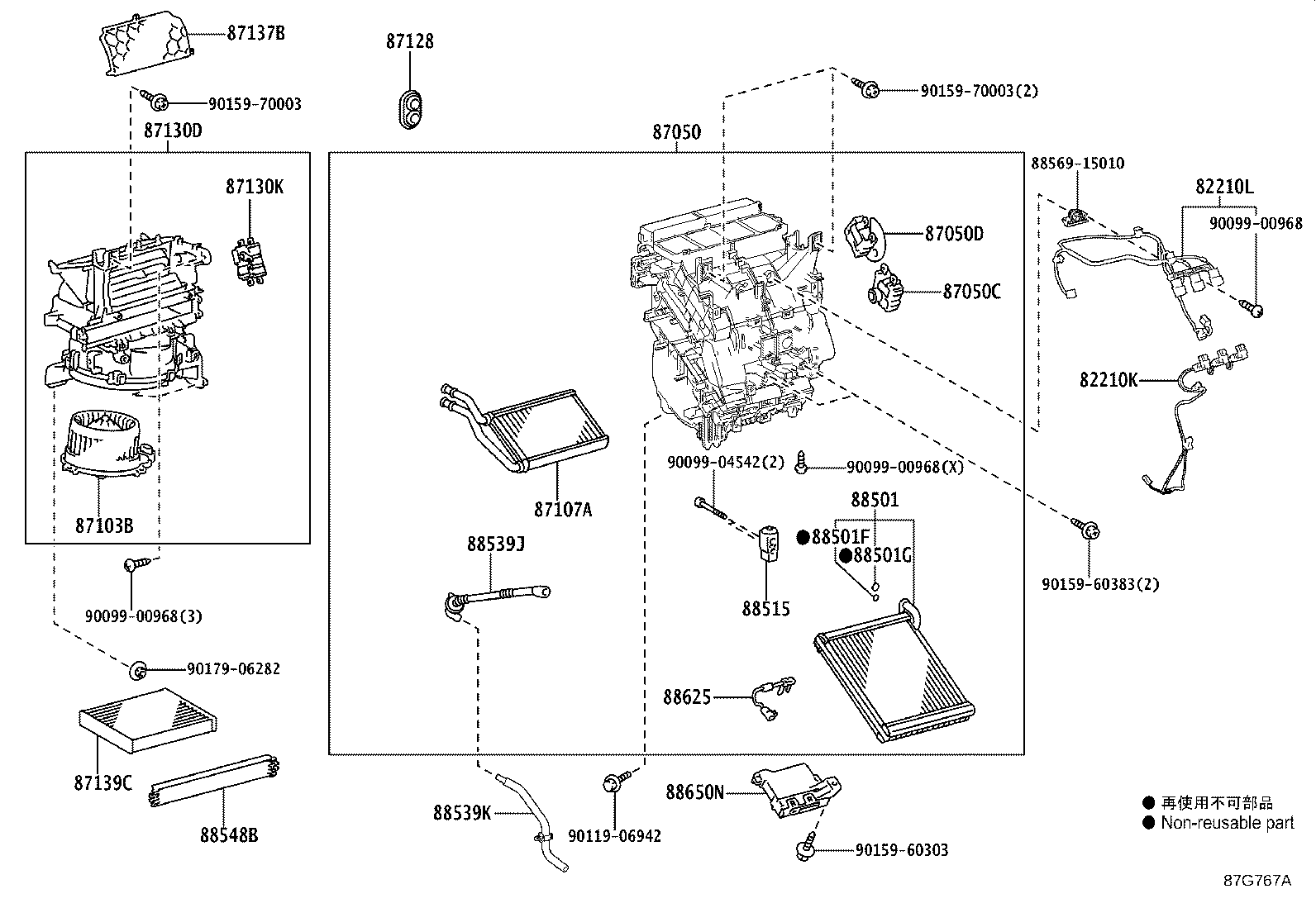

ILLUST NO. 1 OF 2(1710- )
Click highlighted areas on diagram
FRONT AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-15020 |
NTP10 |
1 | ||
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82210-15010 |
NTP10 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-15030 |
NTP10 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52130 |
NTP10 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52140 |
NTP10 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-15010 |
NTP10 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52070 |
NTP10 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
NTP10 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-15010 |
NTP10 |
1 | ||
| 87130-15011 |
NTP10 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52150 |
NTP10 |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-52010 |
NTP10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
NTP10 POLLEN DEODORANT |
1 | ||
| 87441-26010 |
NTP10 STANDARD,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52120 |
NTP10 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NTP10 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NTP10 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
NTP10 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-15020 |
NTP10 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-15010 |
NTP10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NTP10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-52010 |
NTP10 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-15020 |
NTP10 |
1 | ||
| Common parts | ||||
| 88569-15010 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
