XZB53L-ZEMSY (2014)
Toyota Coaster (China)
Production
Mar 2014
-
Jul 2015
Engine
N041
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1403- )3TRFE ; (1403- )N041,6GRFE..CBU

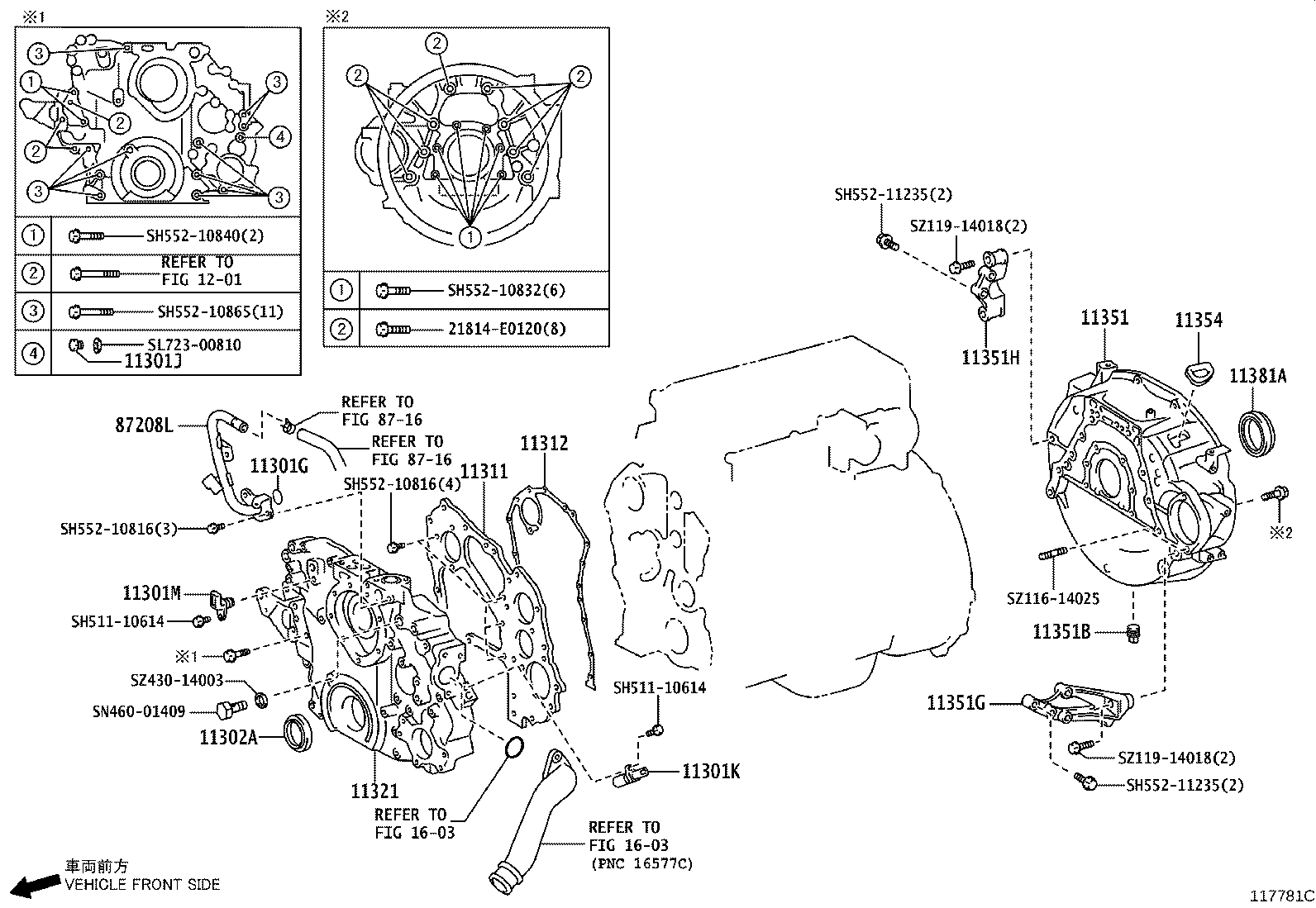

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| SN741-00253 |
N041..XZB53 |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| SZ341-08001 |
N041..XZB53 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 89411-E0040 |
N041..XZB53 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| S8941-01570 |
N041..XZB53 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| SZ313-58002 |
N041..XZB53 |
1 | ||
| SZ313-58001 |
N041..XZB53 |
1 | ||
| 11311 - PLATE, FRONT END | ||||
| S1140-51090 |
N041..XZB53 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| S1131-21170 |
N041..XZB53 |
1 | ||
| 11321 - CASE, TIMING GEAR | ||||
| 11310-E0151 |
N041..XZB53 |
1 | ||
| 11351 - HOUSING, FLYWHEEL | ||||
| 11351-E0G74 |
N041..XZB53 |
1 | ||
| 11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING) | ||||
| SN480-01008 |
N041..XZB53 |
1 | ||
| 11351G - STAY, LH(FOR FLYWHEEL HOUSING) | ||||
| 11353-E0060 |
N041..XZB53 |
1 | ||
| 11351H - STAY, RH(FOR FLYWHEEL HOUSING) | ||||
| S1135-62030 |
N041..XZB53 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-E0060 |
N041..XZB53 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| SZ311-00002 |
N041..XZB53 |
1 | ||
| 87208L - PIPE SUB-ASSY, WATER | ||||
| 16206-E0100 |
XZB53 |
1 | ||
| Common parts | ||||
| 21814-E0120 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SH552-10832 | ||||
| SH552-10840 | ||||
| SH552-10865 | ||||
| SH552-11235 | ||||
| SL723-00810 | ||||
| SN460-01409 | ||||
| SZ116-14025 | ||||
| SZ119-14018 | ||||
| SZ430-14003 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8716 | ||||
