XZB53L-ZEMSY (2007)

Toyota Coaster (China)

Production Jan 2007 - Mar 2014
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )

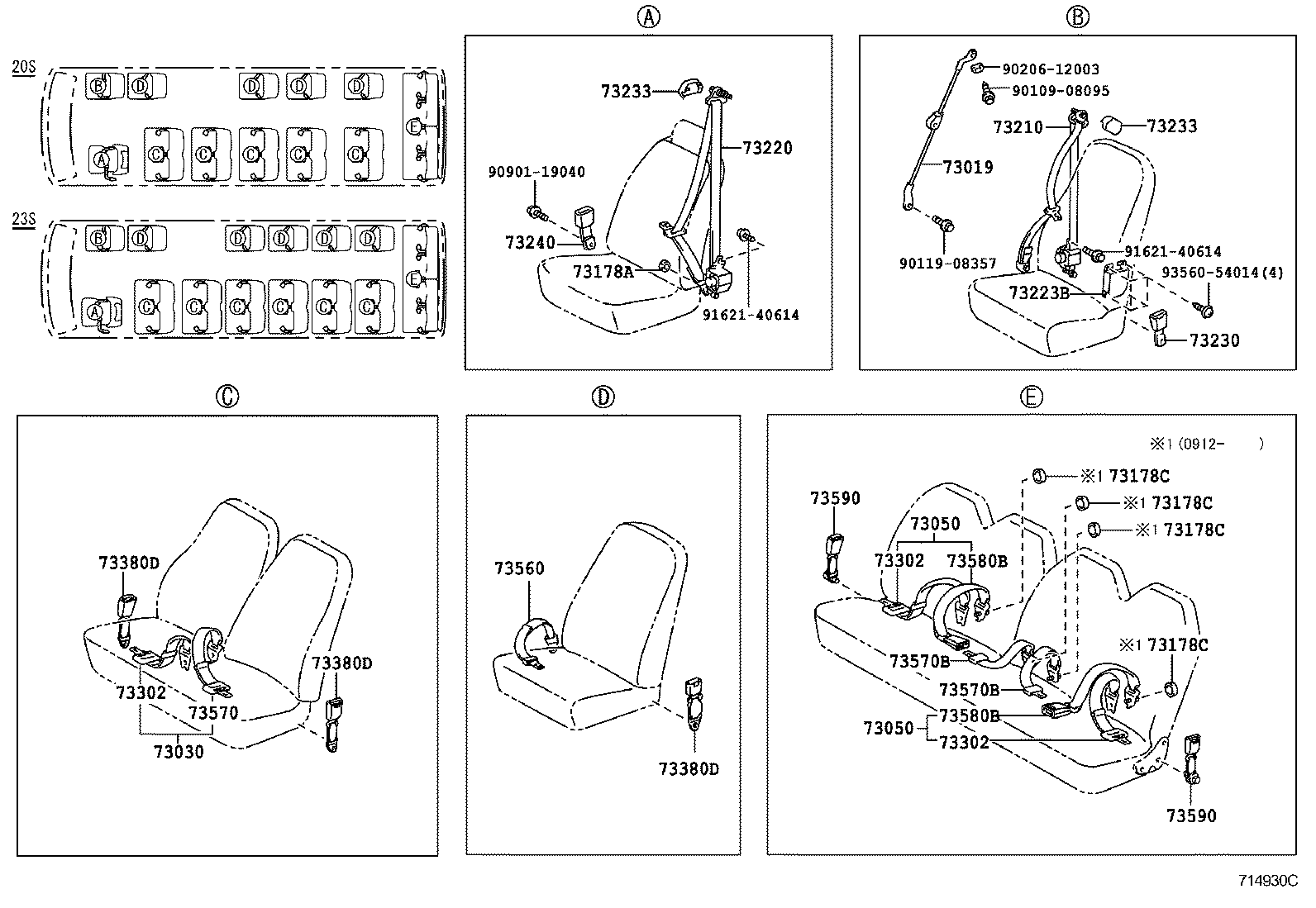

Click highlighted areas on diagram

diagram 73019 73030 73050 73050 73178A 73178C 73178C 73178C 73178C 73210 73220 73223B 73230 73233 73233 73240 73302 73302 73302 73380D 73380D 73380D 73560 73570 73570B 73570B 73580B 73580B 73590 73590 90105C0053 9010908095 9011908357 9020612003 9090119040 9162140614 9356054014
Part # Description Qty Price
Common parts
90105-C0053
90109-08095
90119-08357
90206-12003
90901-19040
91621-40614
93560-54014

(0701- )

Click highlighted areas on diagram

diagram 73019 73030 73050 73050 73178A 73178C 73178C 73178C 73178C 73210 73220 73223B 73230 73233 73233 73240 73302 73302 73302 73380D 73380D 73380D 73560 73570 73570B 73570B 73580B 73580B 73590 73590 9010908095 9011908357 9020612003 9090119040 9162140614 9162140614 9356054014
Part # Description Qty Price
73030 - BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH
73030-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73030-36030A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73050 - BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER RH
73050-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73050 - BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER RH
73050-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73178C - CAP, SEAT BELT ANCHOR COVER
73178-36010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 4
73178C - CAP, SEAT BELT ANCHOR COVER
73178-36010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 4
73178C - CAP, SEAT BELT ANCHOR COVER
73178-36010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 4
73178C - CAP, SEAT BELT ANCHOR COVER
73178-36010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 4
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73360-0S010A0

TRB53,XZB53

IVORY,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-0S010A0

TRB53,XZB53

IVORY,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73380-0S010A0

TRB53,XZB53

IVORY,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0S010A0

TRB53,XZB53

IVORY,TRIM4#

 1
73302 - BELT SUB-ASSY, REAR SEAT OUTER
73302-36010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73302-36010A0

TRB53,XZB53

IVORY,TRIM4#

 2
73302-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73302 - BELT SUB-ASSY, REAR SEAT OUTER
73302-36010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73302-36010A0

TRB53,XZB53

IVORY,TRIM4#

 2
73302-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73302 - BELT SUB-ASSY, REAR SEAT OUTER
73302-36010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73302-36010A0

TRB53,XZB53

IVORY,TRIM4#

 2
73302-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73380D - BELT ASSY, REAR SEAT, INNER
73380-36120A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73380-0S020A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73380D - BELT ASSY, REAR SEAT, INNER
73380-36120A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73380-0S020A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73380D - BELT ASSY, REAR SEAT, INNER
73380-36120A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73380-0S020A0

TRB53,XZB53..23S

IVORY,TRIM4#

 17
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 5
73560-36010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 5
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-0S010A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73570-36060A0

TRB53,XZB53..23S

IVORY,TRIM4#

 6
73570B - BELT ASSY, REAR SEAT, OUTER
73040-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73570B - BELT ASSY, REAR SEAT, OUTER
73040-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73580B - BELT ASSY, REAR SEAT, INNER RH
73580-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73580B - BELT ASSY, REAR SEAT, INNER RH
73580-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73590-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73590-0S010A0

TRB53,XZB53..CBU

IVORY,TRIM4#

 2
Common parts
90109-08095
90119-08357
90206-12003
90901-19040
91621-40614
93560-54014
