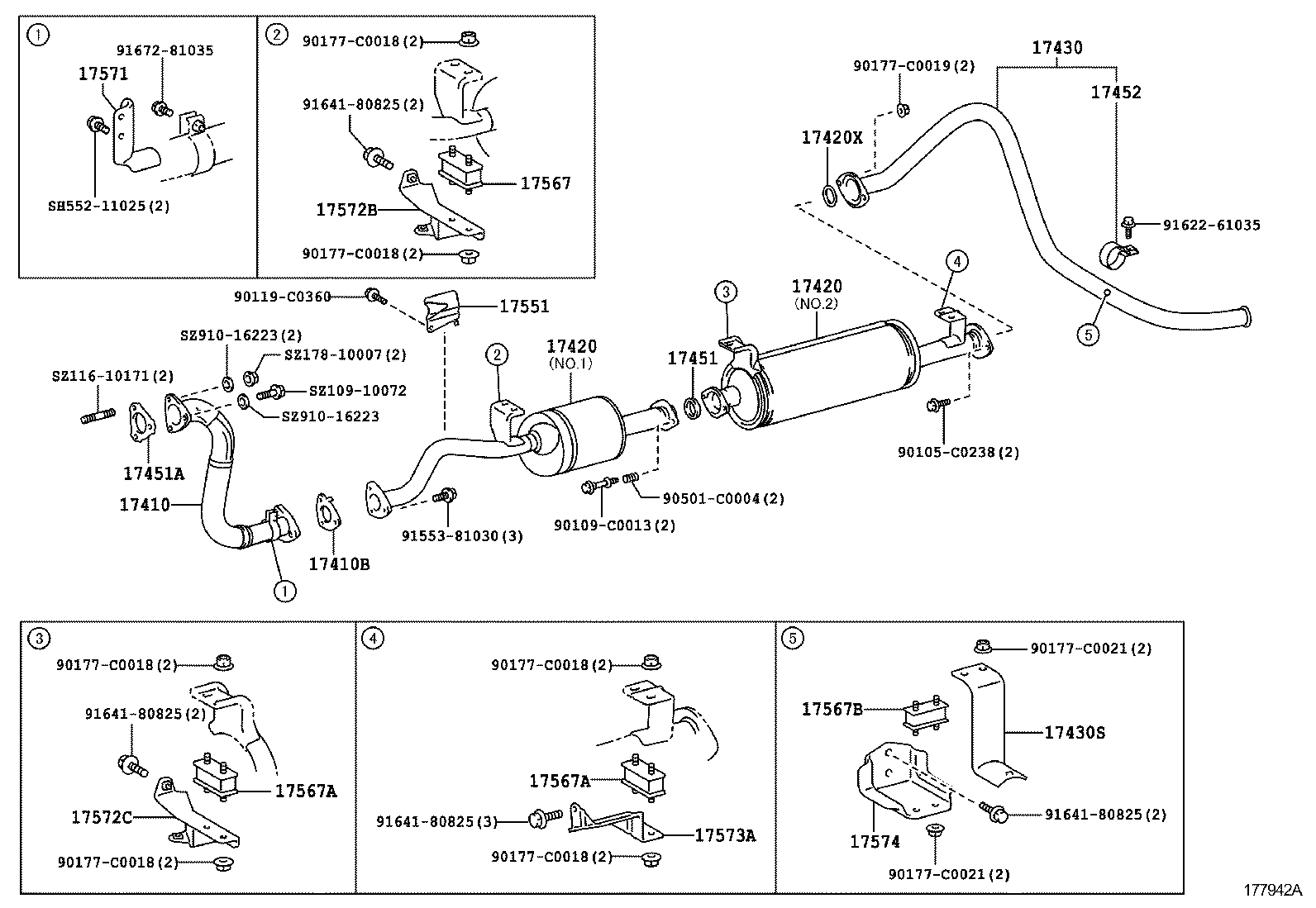

Toyota Coaster (china) XZB53 EXHAUST PIPE

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-E0720	N041..XZB53	03/2014 - 07/2015	1
17410B - GASKET, EXHAUST PIPE
17451-78060	N041..XZB53	03/2014 - 07/2015	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78320	N041..XZB53 NO.2	03/2014 - 07/2015	1
17420-0U010	N041..XZB53 NO.1	03/2014 - 07/2015	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78320	N041..XZB53 NO.2	03/2014 - 07/2015	1
17420-0U010	N041..XZB53 NO.1	03/2014 - 07/2015	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-78050	N041..XZB53	03/2014 - 07/2015	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-17010	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17451 - GASKET, EXHAUST PIPE
17451-74040	N041..XZB53	03/2014 - 07/2015	1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-E0110	N041..XZB53	03/2014 - 07/2015	1
17452 - CLAMP, EXHAUST PIPE
90461-32033	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-17011	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-58020	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58020	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58020	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-58030	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0480	N041..XZB53	03/2014 - 07/2015	1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17572-75220	N041..XZB53	03/2014 - 07/2015	1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010	N041,6GRFE,3TRFE..GRB53,TRB53,XZB53	01/2013 - 07/2015	1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170	N041,3TRFE..TRB53,XZB53	01/2013 - 07/2015	1
Common parts
90105-C0238
90109-C0013
90119-C0360
90177-C0018
90177-C0019
90177-C0021
90501-C0004
91553-81030
91622-61035
91641-80825
91672-81035
SH552-11025
SZ109-10072
SZ116-10171
SZ178-10007
SZ910-16223

XZB53L-ZEMNY (2014)

(1301-1507)N041
