XZB53L-ZEMNY (2007)

Toyota Coaster (China)

Production Jan 2007 - Mar 2014
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )XZB53

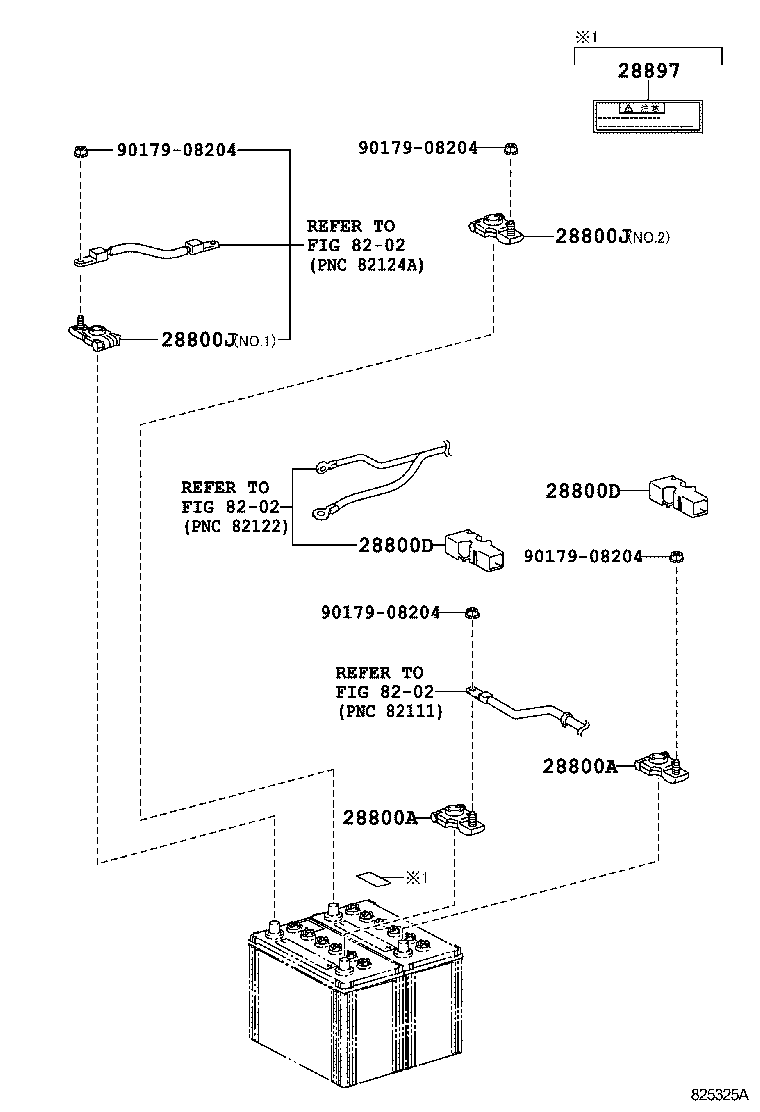

Click highlighted areas on diagram

diagram 28800A 28800A 28800D 28800D 28800J 28800J 28897 8202 8202 8202 9017908204 9017908204 9017908204 9017908204
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

N04C..XZB53

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

N04C..XZB53

 2
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZB53

 1
82821-37071

N04C..XZB53

 2
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZB53

 1
82821-37071

N04C..XZB53

 2
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

N04C..XZB53

NO.1

 1
90982-06024

N04C..XZB53

NO.2

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

N04C..XZB53

NO.1

 1
90982-06024

N04C..XZB53

NO.2

 1
28897 - PLATE, BATTERY CAUTION
28897-78040

N04C..XZB53

 1
Common parts
90179-08204
Linked diagrams
8202
