XZB53L-ZCMSY (2007)

Toyota Coaster (China)

Production Jan 2007 - Mar 2014
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )XZB53

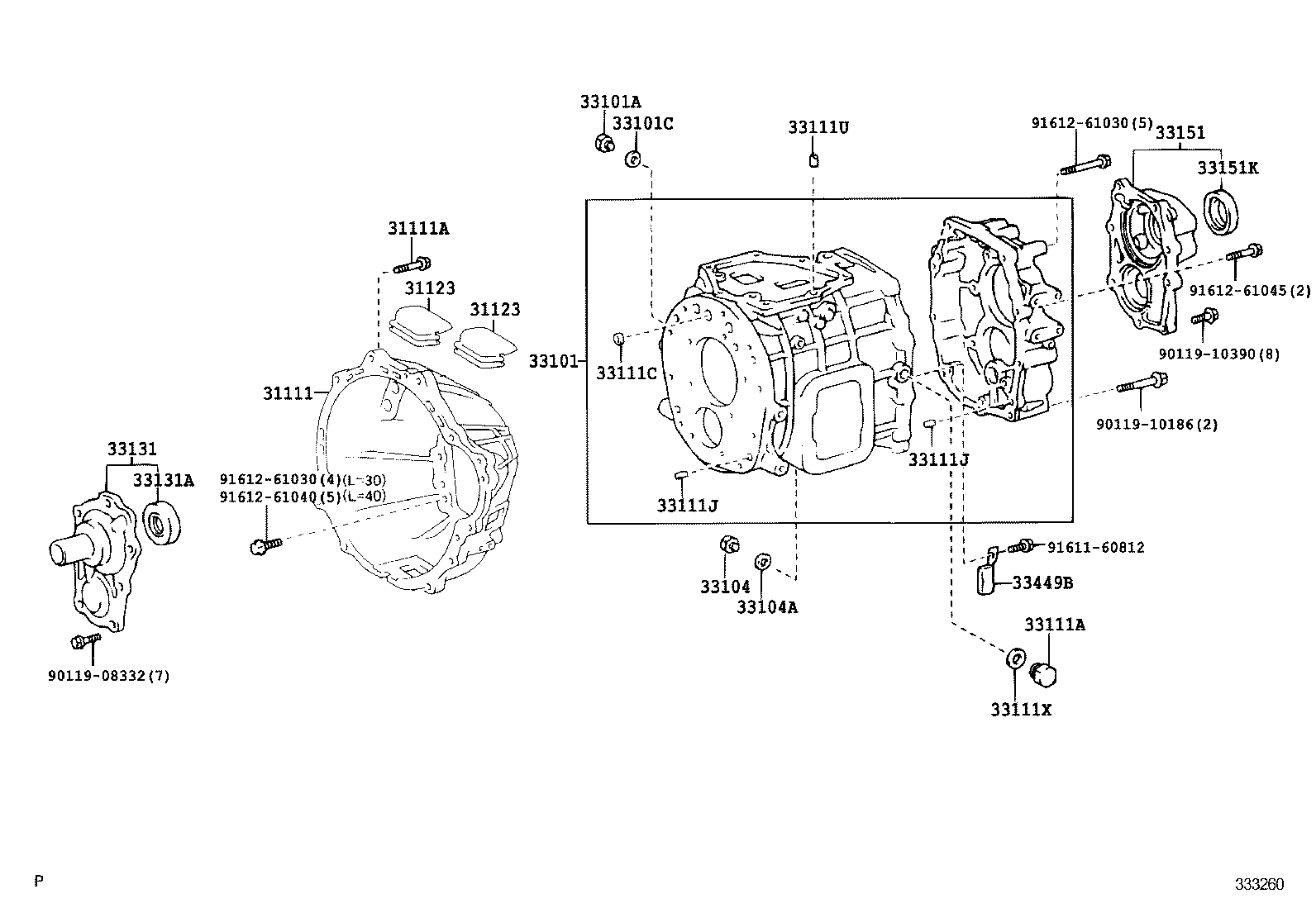

Click highlighted areas on diagram

M155

diagram 31111 31111A 31123 31123 33101 33101A 33101C 33104 33104A 33111A 33111C 33111J 33111J 33111U 33111X 33131 33131A 33151 33151K 33449B 9011908332 9011910186 9011910390 9161160812 9161261030 9161261030 9161261040 9161261045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36390

XZB53

 1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898

XZB53

 12
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36120

XZB53

 1
33449B - MAGNET, TRANSMISSION
33449-60010

XZB53

 1
Common parts
90119-08332
90119-10186
90119-10390
91611-60812
91612-61030
91612-61040
91612-61045
