XZB53L-ZCMEY (2007)

Toyota Coaster (China)

Production Jan 2007 - Mar 2014
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )N04C

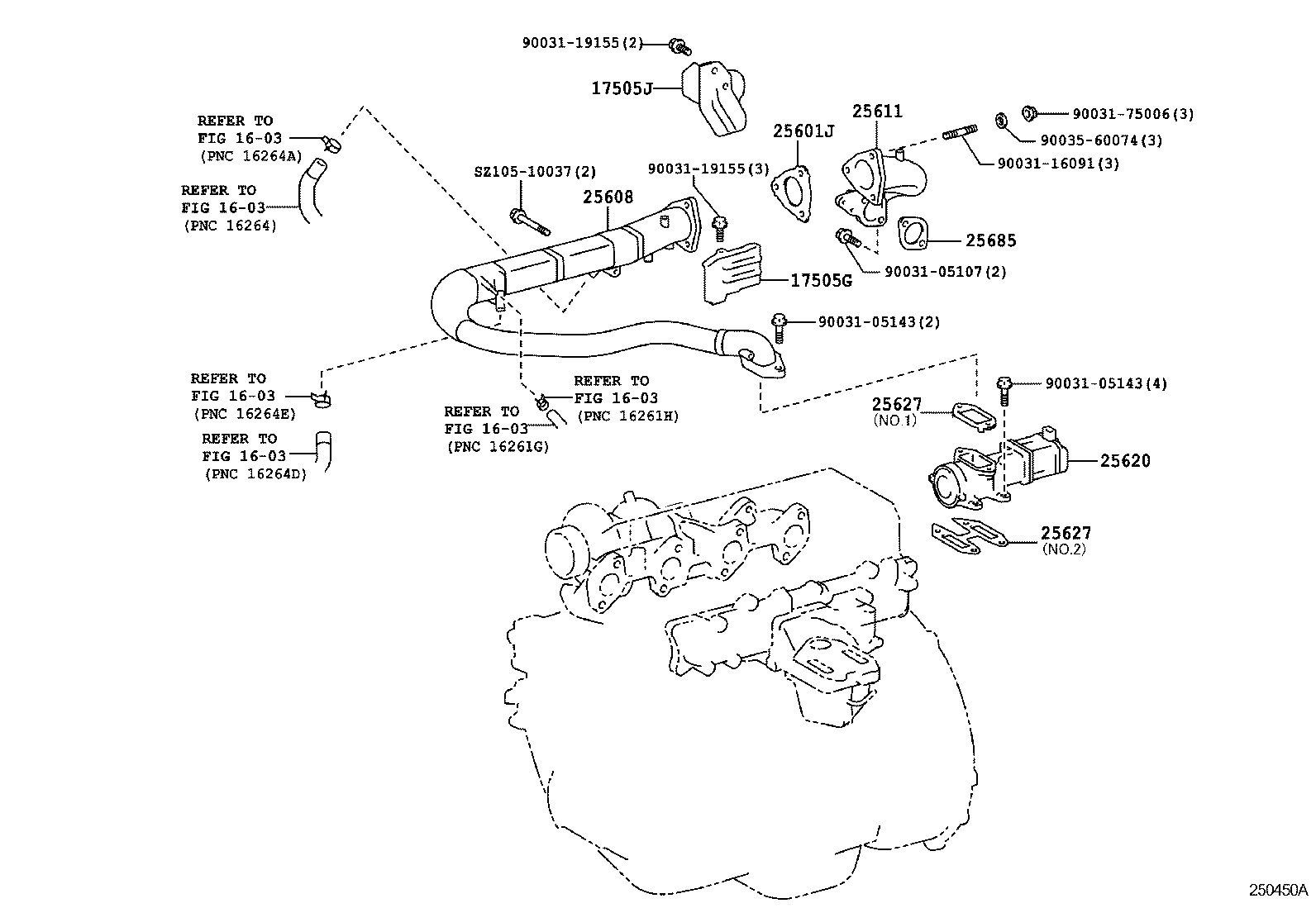

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 17505G 17505J 25601J 25608 25611 25620 25627 25627 25685 9003105107 9003105143 9003105143 9003116091 9003119155 9003119155 9003175006 9003560074 SZ10510037
Part # Description Qty Price
17505G - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-E0710

N04C..XZB53

 1
17505J - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3
17505-E0730

N04C..XZB53

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
17451-E0110

N04C..XZB53

 1
25608 - COOLER SUB-ASSY, EGR
25608-E0201

N04C..XZB53

 1
25611 - CONNECTOR, EGR PIPE
25611-E0370

N04C..XZB53

 1
25620 - VALVE ASSY, EGR
25620-E0261

N04C..XZB53

 1
25620-E0262

N04C..XZB53

 1
25627 - GASKET, EGR VALVE
25627-E0140

N04C..XZB53

NO.2

 1
25627-E0130

N04C..XZB53

NO.1

 1
25627 - GASKET, EGR VALVE
25627-E0140

N04C..XZB53

NO.2

 1
25627-E0130

N04C..XZB53

NO.1

 1
25685 - GASKET, EGR COOLER, NO.1
S1710-42020

N04C..XZB53

 1
Common parts
90031-05107
90031-05143
90031-16091
90031-19155
90031-75006
90035-60074
SZ105-10037
Linked diagrams
1603
