TRB53L-ZEMSK (2013)

Toyota Coaster (China)

Production Jan 2013 - Jul 2015
Engine 3TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )3TRFE

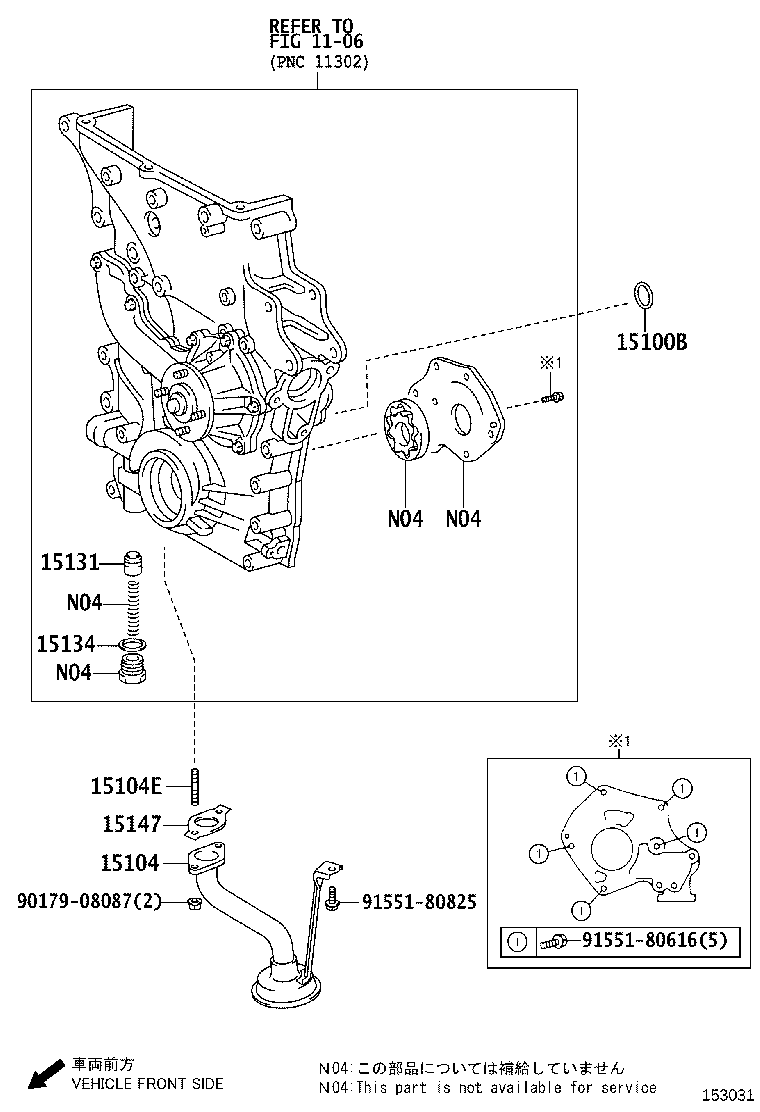

Click highlighted areas on diagram

diagram 1106 15100B 15104 15104E 15131 15134 15147 9017908087 9155180616 9155180825
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-19021

3TRFE..TRB53

 1
15104 - STRAINER SUB-ASSY, OIL
15104-75140

3TRFE..TRB53

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-08052

3TRFE..TRB53

 2
15131 - VALVE, OIL PUMP RELIEF
15131-46040

3TRFE..TRB53

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

3TRFE..TRB53

 1
15147 - GASKET, OIL STRAINER
15147-75030

3TRFE..TRB53

 1
Common parts
90179-08087
91551-80616
91551-80825
Linked diagrams
1106
