TRB53L-ZEMSK (2007)
Toyota Coaster (China)
Production
Jan 2007
-
Jan 2013
Engine
2TRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1301-1507)XZB53 ; (1301-1707)TRB53

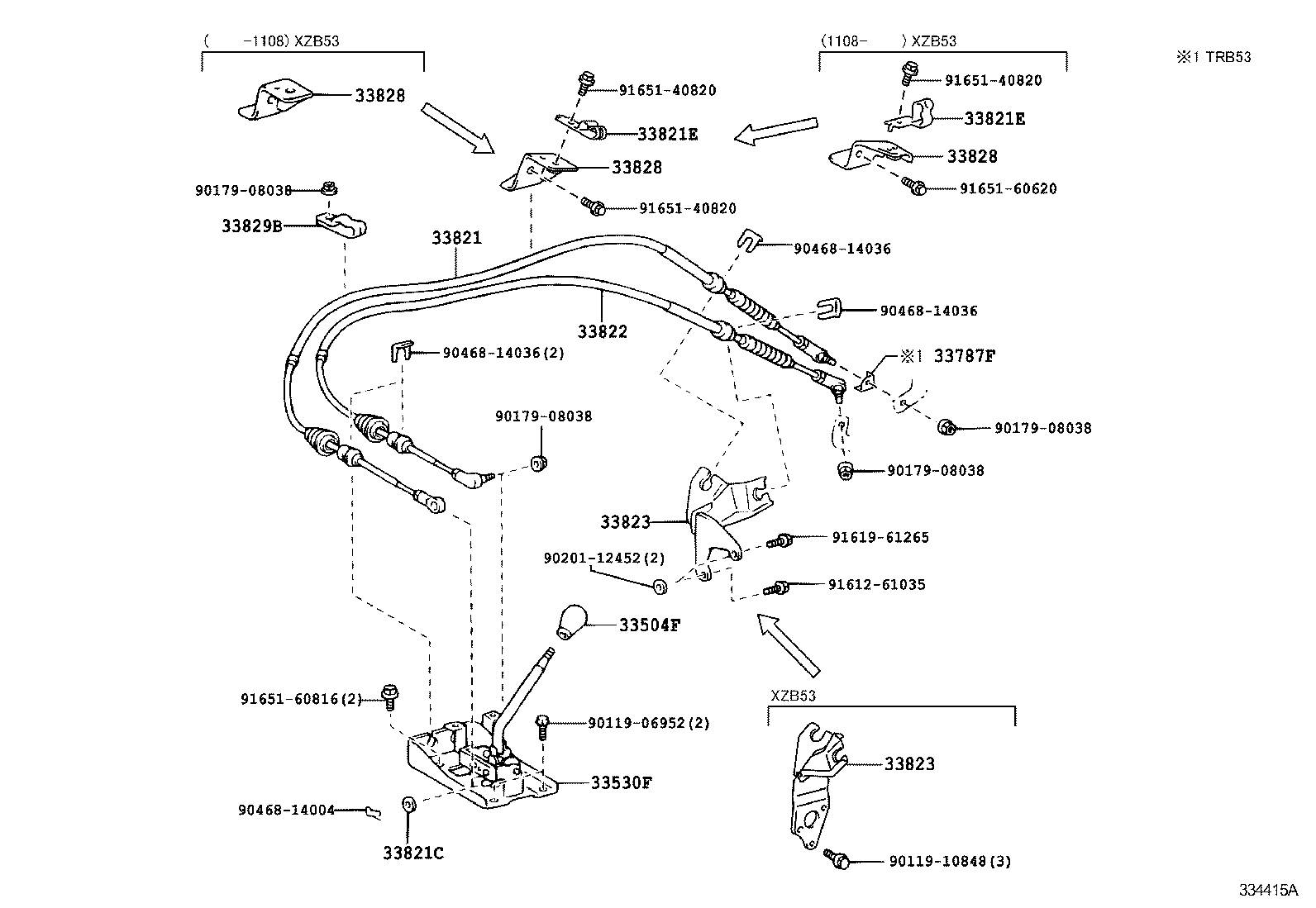

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06952 | ||||
| 90119-10848 | ||||
| 90179-08038 | ||||
| 90201-12452 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91612-61035 | ||||
| 91619-61265 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
(0701- )

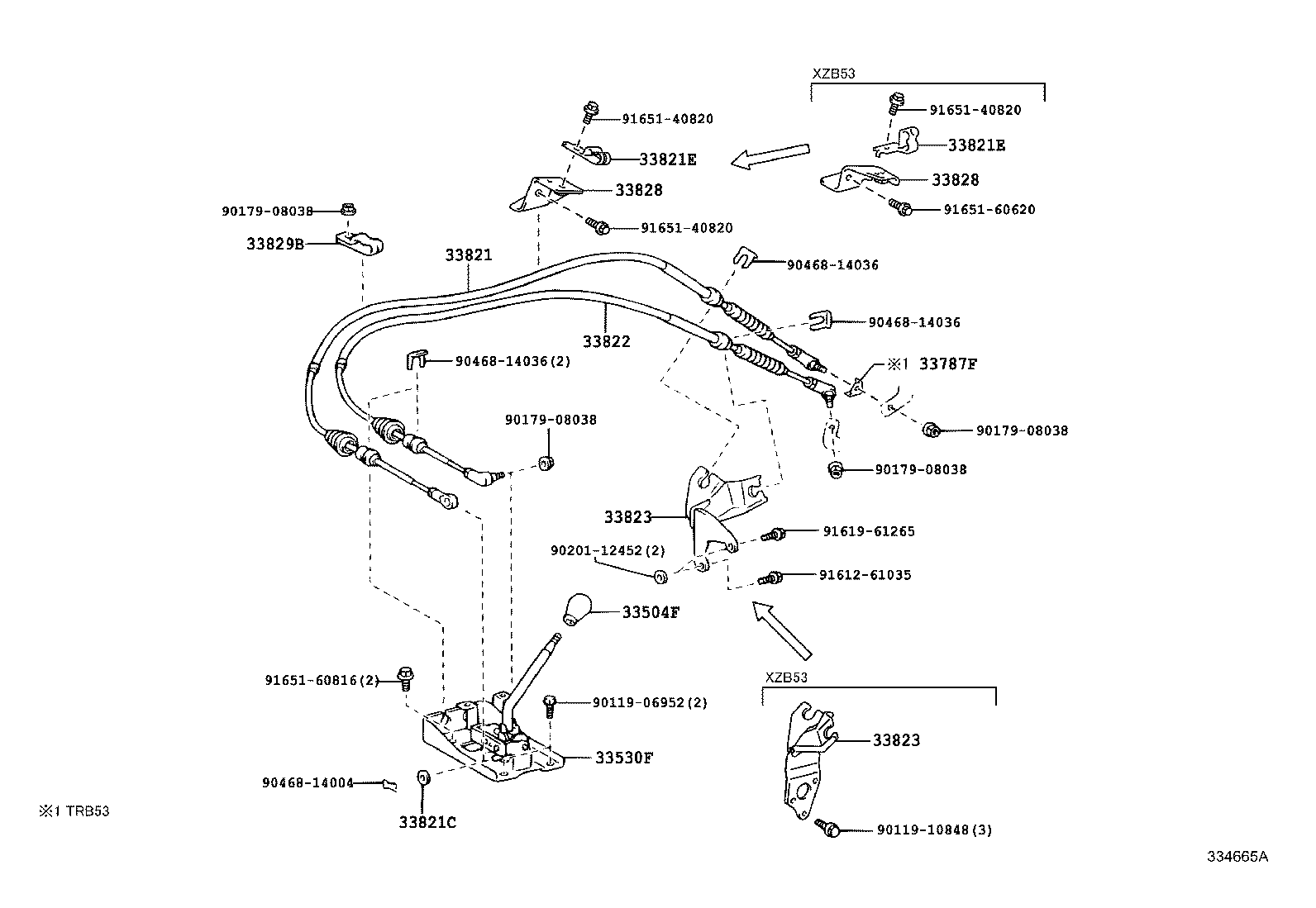

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3 | ||||
| 33786-25010 |
TRB53 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-36190 |
TRB53 |
1 | ||
| 33821-0S020 |
TRB53 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-36170 |
TRB53 |
1 | ||
| 33822-0S020 |
TRB53 |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36070 |
TRB53 |
1 | ||
| 33828-0S020 |
TRB53 |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36070 |
TRB53 |
1 | ||
| 33828-0S020 |
TRB53 |
1 | ||
| 33828 - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-36070 |
TRB53 |
1 | ||
| 33828-0S020 |
TRB53 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-10848 | ||||
| 90179-08038 | ||||
| 90201-12452 | ||||
| 90468-14004 | ||||
| 90468-14036 | ||||
| 91612-61035 | ||||
| 91619-61265 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
