TRB53L-ZEMNK (2007)

Toyota Coaster (China)

Production Jan 2007 - Jan 2013
Engine 2TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )TRB53

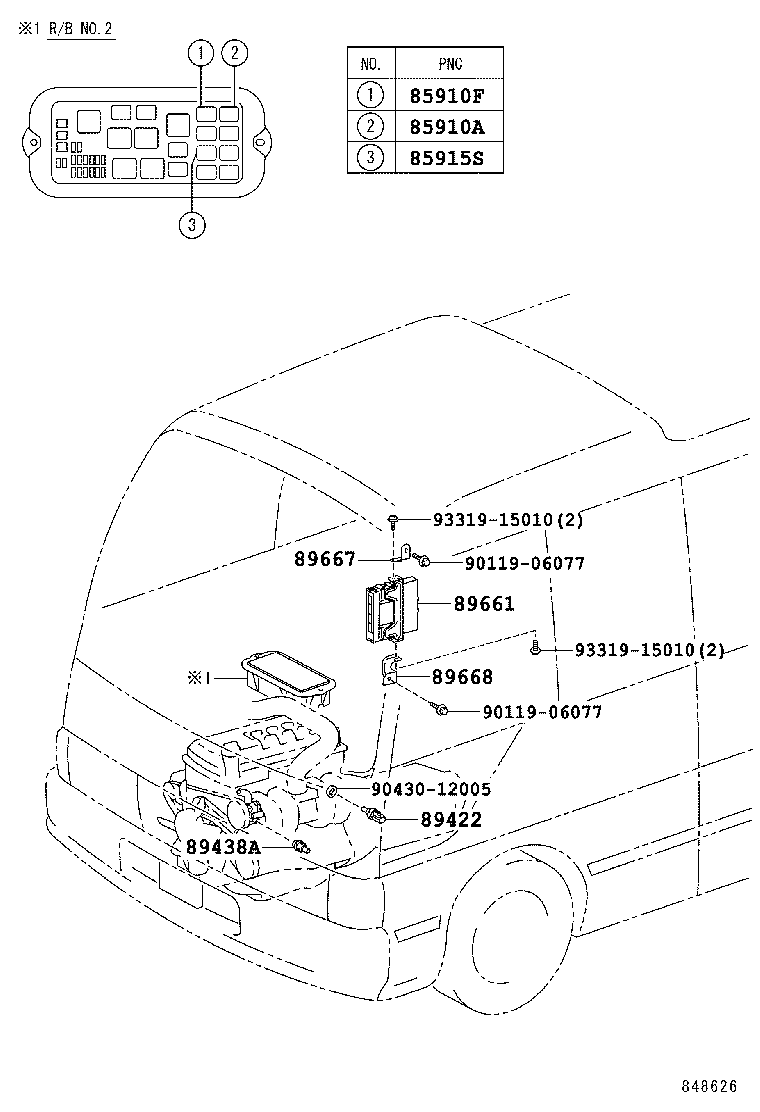

Click highlighted areas on diagram

diagram 85910A 85910F 85915S 89422 89438A 89661 89667 89668 9011906077 9011906077 9043012005 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-T2005

TRB53

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-T2005

TRB53

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-T2005

TRB53

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

TRB53

 1
89422-16010

TRB53

 1
89661 - COMPUTER, ENGINE CONTROL
89661-36190

TRB53

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-36080

TRB53

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36070

TRB53

 1
Common parts
90119-06077
90430-12005
93319-15010
