TRB53L-ZCMEK (2007)

Toyota Coaster (China)

Production Jan 2007 - Jan 2013
Engine 2TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )2TRFE

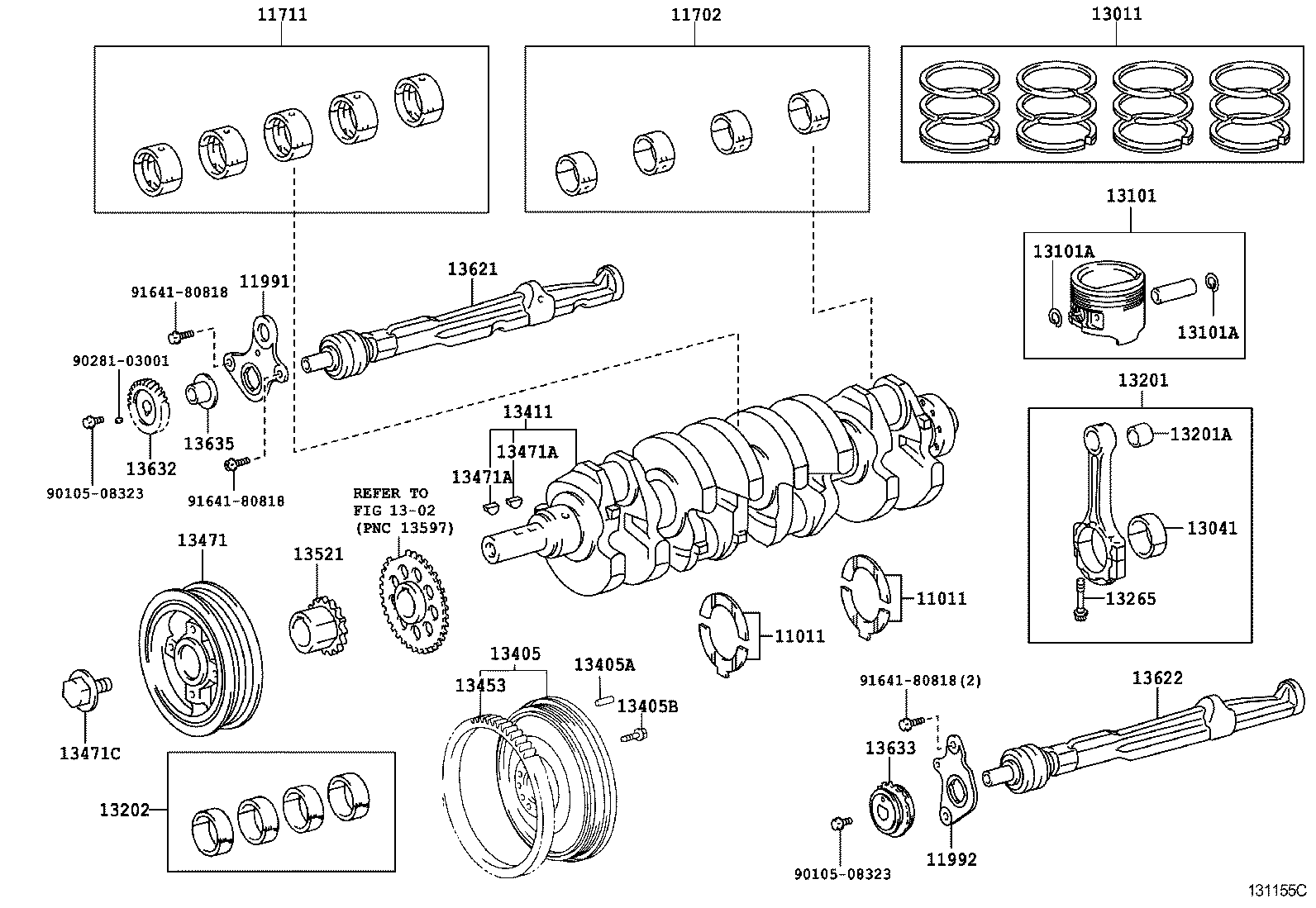

Click highlighted areas on diagram

diagram 11011 11011 11702 11711 11991 11992 13011 1302 13041 13101 13101A 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13521 13621 13622 13632 13633 13635 9010508323 9010508323 9028103001 9164180818 9164180818 9164180818
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75020

2TRFE..TRB53

STD

 2
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75020

2TRFE..TRB53

STD

 2
11702 - BEARING SET, CRANKSHAFT
11704-75031

2TRFE..TRB53

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7503102

2TRFE..TRB53

MARK2,REFER R/M

 5
11701-7503101

2TRFE..TRB53

MARK1,REFER R/M

 5
11701-7503103

2TRFE..TRB53

MARK3,REFER R/M

 5
11991 - WASHER, BALANCESHAFT THRUST
11991-75010

2TRFE..TRB53

 1
11992 - WASHER, BALANCESHAFT THRUST, NO.2
11992-75010

2TRFE..TRB53

 1
13011 - RING SET, PISTON
13011-75110

2TRFE..TRB53

STD

 1
13013-75110

2TRFE..TRB53

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7504004

2TRFE..TRB53

MARK4,REFER R/M

 4
13041-7505004

2TRFE..TRB53

MARK4,REFER R/M

 4
13041-7504006

2TRFE..TRB53

MARK6,REFER R/M

 4
13041-7504005

2TRFE..TRB53

MARK5,REFER R/M

 4
13041-7505005

2TRFE..TRB53

MARK5,REFER R/M

 4
13041-7505006

2TRFE..TRB53

MARK6,REFER R/M

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-75130

2TRFE..TRB53

O/S 0.50

 4
13101-75130

2TRFE..TRB53

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

2TRFE..TRB53

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

2TRFE..TRB53

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-79585

2TRFE..TRB53

 4
13201-79615

2TRFE..TRB53

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73144

2TRFE..TRB53

 4
13202 - BEARING SET, CONNECTING ROD
13204-75050

2TRFE..TRB53

U/S 0.25

 1
13204-75040

2TRFE..TRB53

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-28010

2TRFE..TRB53

 8
13405 - FLYWHEEL SUB-ASSY
13405-75060

2TRFE..TRB53

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2TRFE..TRB53

L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90910-02116

2TRFE..TRB53

 10
13411 - CRANKSHAFT
13401-75040

2TRFE..TRB53

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2TRFE..TRB53

 1
13471 - PULLEY, CRANKSHAFT
13408-75040

2TRFE..TRB53

 1
13408-75050

2TRFE..TRB53

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

2TRFE..TRB53

 2
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

2TRFE..TRB53

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16041

2TRFE..TRB53

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-75020

2TRFE..TRB53

 1
13621 - BALANCESHAFT, NO.1
13621-75020

2TRFE..TRB53

 1
13622 - BALANCESHAFT, NO.2
13622-75020

2TRFE..TRB53

 1
13632 - GEAR, BALANCESHAFT DRIVEN, NO.1
13632-75010

2TRFE..TRB53

 1
13633 - GEAR, BALANCESHAFT DRIVEN, NO.2
13633-75010

2TRFE..TRB53

 1
13635 - SPACER, BALANCESHAFT THRUST
13635-75010

2TRFE..TRB53

 1
Common parts
90105-08323
90281-03001
91641-80818
Linked diagrams
1302
